IP68 Dome Fiber Optic Splice Closure Pole Mounting Direct Buried
1 In 8 Out Cap Type Optic Splicing Closure 144 Single Fibers

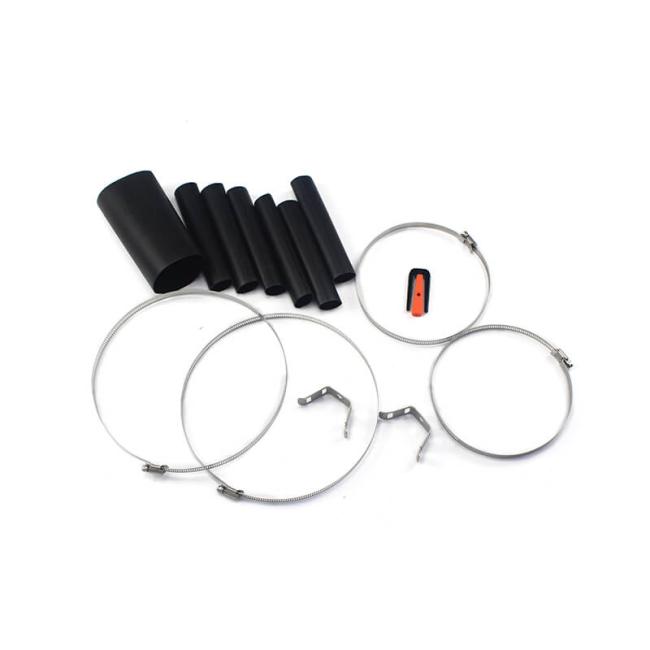

Optical Fiber Splice Closure/Joint Box/Joint Closure is used for protecting the optical fiber fusion splicing head between two different optical cables; a reserved section of optical fiber will be kept in the closure for maintenance purpose. suitable for Ф 7 -Ф 22 cable in and out, is suitable for aerial, wall-mounting applications, Pole mounting ,differences in place. The box body and the base are sealed with the silicone rubber. The cable seal is sealed with a heat shrinkable tube.
Specification
| Cable ports | 1 elliptical port and 8 round ports | Way to install | Pole-mounting /Wall-mounting/Aerial installation |
| Cable diameter | Φ7-Φ22 | Capacity of splice | 24 single fiber |
| Max. Number of | 6 | Sealing structure | Heat shrinkable sealing structure silicon gum material |
| Max Capacity | 144 single fiber | Voltage resistance | 15 kv dc, 1 minute no breakdown, no flash over phenomenon |
| External Size | Φ230×460mm | Insulation resistance | ≥2×104MΩ |
| Net weight | 3.5kg | Tensile force | ≥ 800N |
Application
1. Optical Fiber Splice Closure/Joint Box/Joint Closure is suitable for Aerial, Pipeline, Direct-buried;
2. CATV environment, Telecommunications, Customer premises environments, Carrier Networks and fiber optic networks.
3. The joint box has good leak-proof, anti-water and damp-proof feature and its power line is corrosion resistant.
