FTTH 1:16 Fiber Optic Cassette Type PLC Splitter
FTTH 1:16 Fiber Optic Cassette Type PLC Splitter

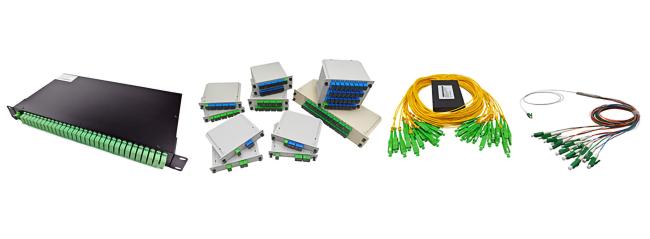

A Cassette-Type PLC Splitter is a compact, modular fiber optic splitter designed for easy installation in distribution boxes, patch panels, or splice closures. It integrates a Planar Lightwave Circuit (PLC) chip to split an incoming optical signal into multiple outputs (e.g., 1×4, 1×8, 1×16, 1×32) with low insertion loss and high uniformity.
Specification:
| Parameter | 1X2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | |
| Wavelength(nm) | 1260 ～ 1650 | ||||||
| IL(dB) | ≤4.1 | ≤7.4 | ≤10.5 | ≤13.8 | ≤17.1 | ≤20.4 | |
| Uniformity(dB) | ≤0.6 | ≤0.7 | ≤0.8 | ≤1.0 | ≤1.5 | ≤2.0 | |
| RL(dB) | ≥50(PC),≥55(APC) | ||||||
| PDL(dB) | ≤0.15 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | |
| Directivity(dB) | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | |
| Environment | Operating temp(℃) | -40~85℃ | |||||
| Storage temp(℃) | -40~85℃ | ||||||
| Humidity | ≤95%(+40℃) | ||||||
| Atmospheric pressure | 62~106kPa | ||||||
| Fiber | SM G657A or customized | ||||||
| Connector | SC, FC, LC | ||||||
| Pigtail(mm) | 1000, 1500, 2000 or customized | ||||||
Features:
1.1 Fits into standard cassette-style trays (e.g., for ODFs, distribution boxes).
1.2 Plug-and-play installation without extra splicing.
1.3 Splits signals evenly (e.g., 1×32 splits with ~15–17 dB loss).
1.4 Low PDL (Polarization Dependent Loss) and high stability.
Applications:
2.1 FTTH Networks – Inside distribution boxes (ODBs) for home connections.
2.2 Data Centers – In fiber patch panels for signal distribution.
2.3 5G & FTTx – For splitting signals in outdoor cabinets or closures.
