FTTH Outdoor 1 Core Drop Cable Splicing Tube Protection Box
FTTH 1 Core Drop Cable Splicing Tube Protection Box
Drop Cable Protect box is used for drop cable connecting, splice and protection. It can hold 1piece SC Simplex adapter, 2pcs SC fast connectors, suitable for FTTH. It could be indoor or outdoor use, with good waterproof capacity. It is compact size, good appearance. Provides extremely economical and optimal protection for exposed single fiber connectors.
Specification:
| Application | 3.0x2.0mm Drop Cable or Indoor Cable |
| Fiber Cladding Diameter | 125um(G652D&G657A) |
| Fiber Diameter | 250um&900um |
| Fiber Type | Single Mode(SM) & Multi Mode(MM) |
| Tensile Strength | > 50N |
| Repeat Uses Circles | 5 times |
| Insertion Loss | <0.2dB |
| Return Loss | > 50dB(UPC), > 60dB(APC) |
| Bending Radius(mm) | > 15 |
| Operation Temperature | -40~60(°C) |
| Storage Temperature | -40~85(°C) |
Features:
1.1 Both Made of high-quality PP Plastic, silicone ring seal between the cover and bottom.
1.2 Small size, easy installation.
1.3 Indoor outdoor used.
1.4 Waterproof IP65, dust proof.
Application:
2.1 Suitable for indoor or outdoor use
2.2 Used for protect drop cable
2.3 Used in FTTH, Telecommunications, CATV ect.

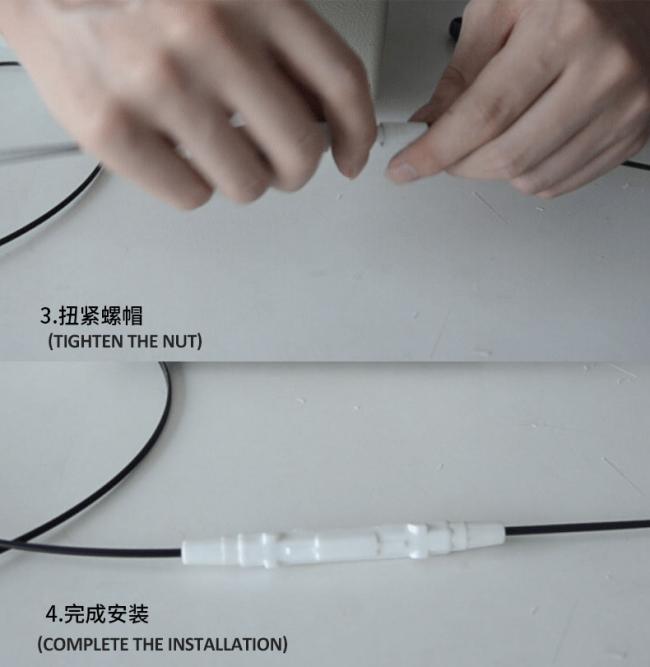

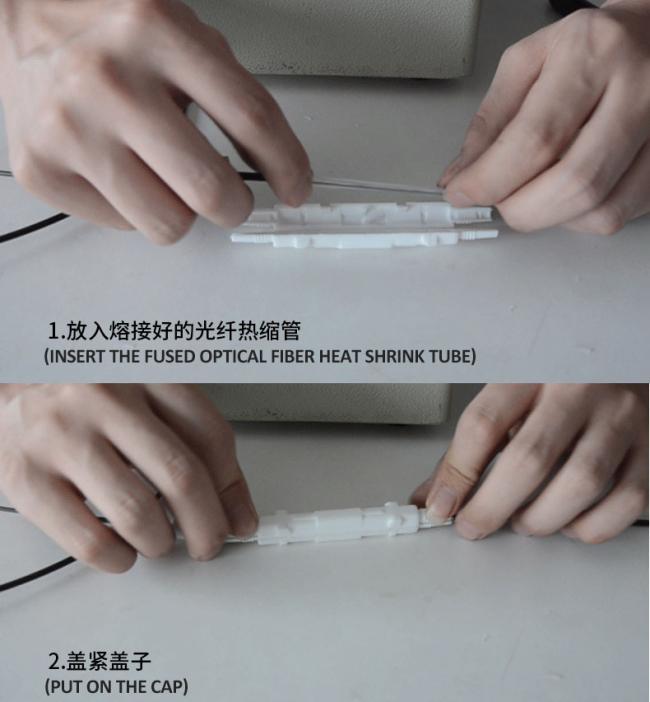

How To Use:
