Self-supporting Cable Dead End Tension Clamp For 11-13mm Cable
MOQ:
1000 pieces
Delivery Time:
7-15 Days
Brand:
DOWELL
Product Description
Self-supporting Cable Dead End Tension Clamp For 11-13mm Cable
The Dead end clamp also name anchoring clamp is designed to anchor insulated main line with 4 conductors to the Pole, or service lines with 2 or 4 conductors to the pole or wall. Dead end clamp is composed of a body, wedges and removable and adjustable bail or pad. One core Anchor clamps are design to supporting the neutral messenger, the wedge can be self-adjusting. Pilot wires or street lighting conductor are led alongside the clamp. The self opening is featured by an integrate spring facilities for easily insert the conductor into the clamp.
Specification:
| Material | Aluminum Alloy Nylon (PA66) | Weight | 0.38kg |
| Aluminum Alloy Base Support |
66*110*30mm | Steel Wire with 2 Steel Balls | O.D.: 4.0mm L: 520mm |
| Cable Diameter | 10-13mm | Breaking Load | 10KN |

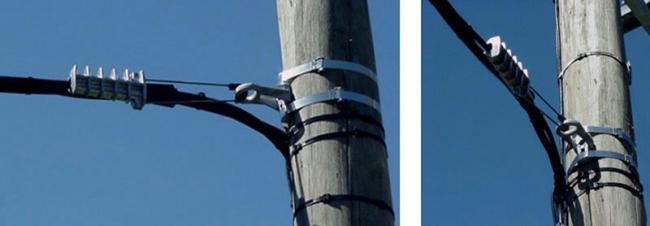

Application:
The anchor clamps are self-adjusting. While installation pulls the clamp upstream to the pole, using special installation tools for optical fiber lines like pulling sock, stringing block, lever hoist to tensile the aerial bundled cable. The measure needed distance from bracket to anchor clamp and start to lose the tension of cable; let the clamp s wedges anchor the cable inside by degrees.
Our Package:

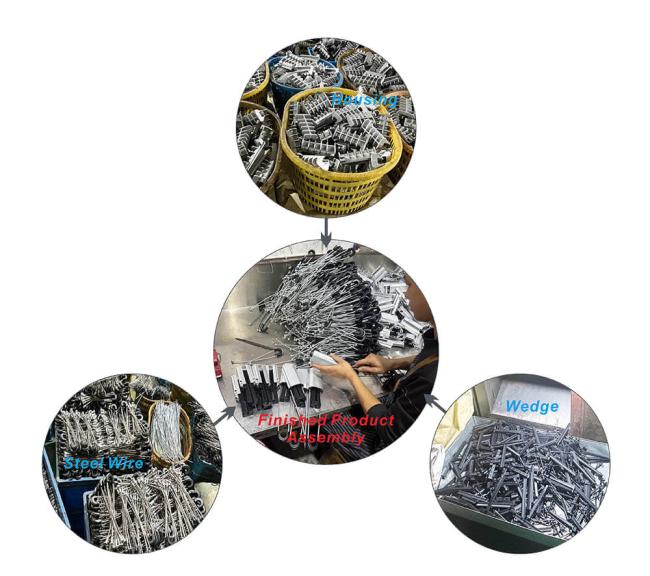

Production Flow:

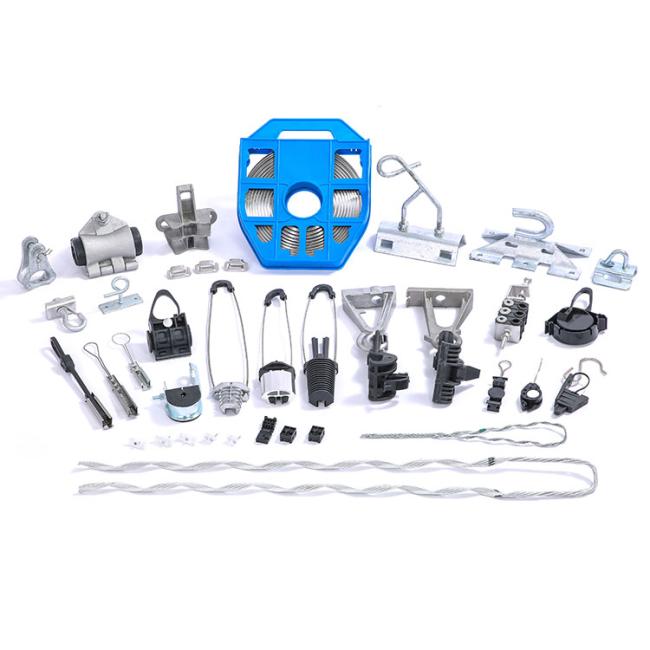

More Related Products:
