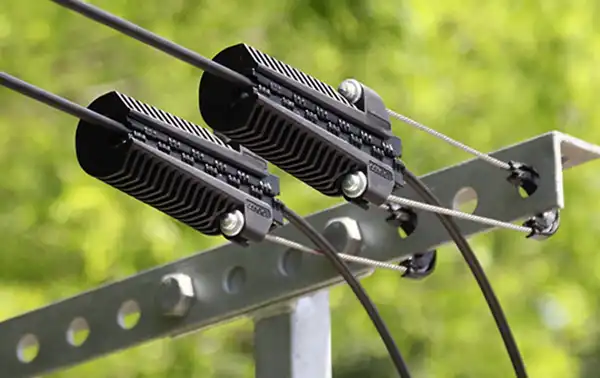

These anchoring clamps are made of an opened conical body, a pair of plastic wedges and a flexible bail equipped with an insulating thimble. The bail can be locked onto the clamp body once passed through the pole bracket and re-opened by hand at any time when the clamp is not under full load. All parts are secured together to prevent any loss during installation.

Specification:

Application:

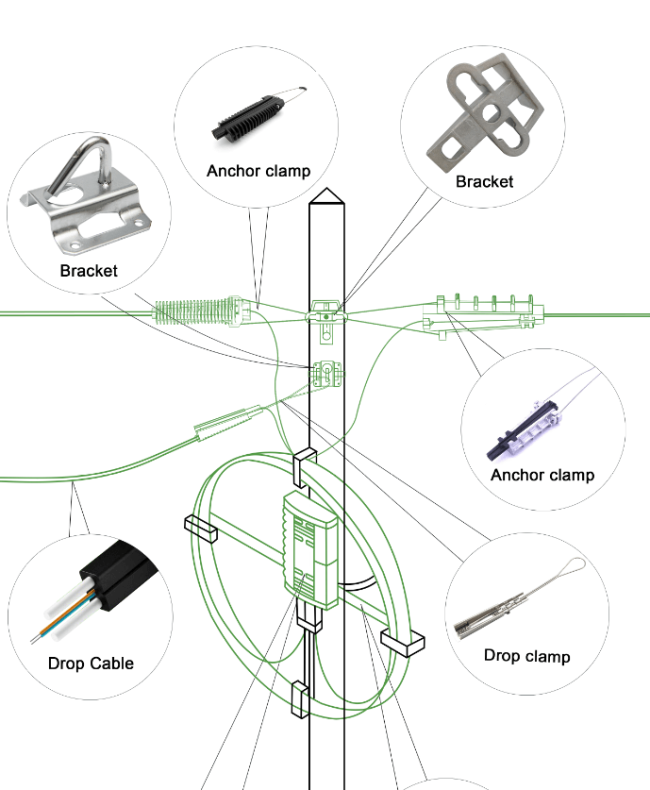

These clamps will be used as cable dead-end at end poles (using one clamp). Two clamps can be installed as double dead-end in the following cases :

1. at jointing poles

2. at intermediate angle poles when the cable route deviates by more than 20°.

3. at intermediate poles when the two spans are different in lengths

4. at intermediate poles on hilly landscapes

Testing:

Our Package:

Production Flow:
