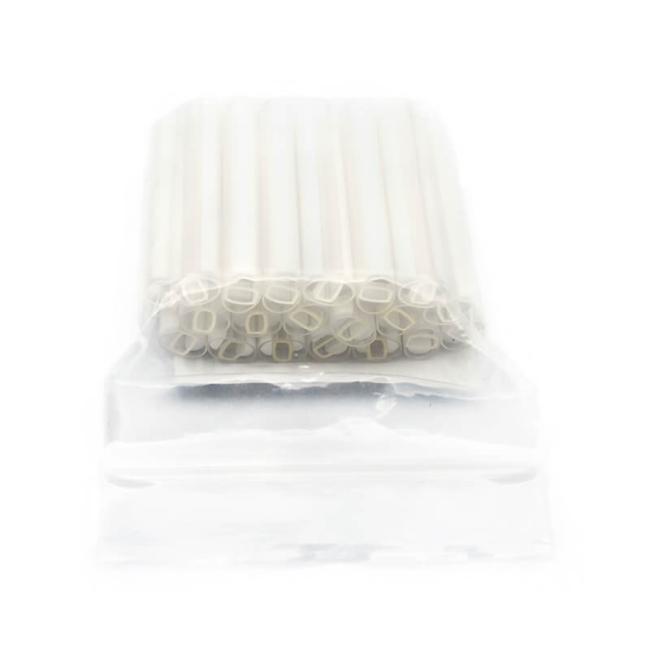

Transparent Fiber Optic Splice Heat Shrink Protective Sleeve For 12 Ribbons
Price:
Negotiable
MOQ:
10000
Delivery Time:
7-15 Days
Brand:
DOWELL
Product Description
Transparent Fiber Optic Splice Heat Shrink Protective Sleeve For 12 Ribbons
Fusion splice protection sleeves are designed to meet or exceed Telcordia Standard TANWT 001380. Designed for durability and reliability, the sleeves are constructed with an inner EVA meltable adhesive tube, and a polyolefin heat shrink outer tube. The strength member within the sleeve is made of tempered stainless steel with rounded and polished edges. The tubes are clear to allow viewing the color of the fiber after splicing. The entire assembly is heat bonded to ensure that all members maintain perfect alignment during shipping, handling, and the shrinking process for the best in optical fiber protection.
Specification:
| Properties | Test Method | Typical Data |
| Tensile Strength(MPa) | ASTM D 2671 | ≥18 Mpa |
| Ultimate Elongation (%) | ASTM D 2671 | 700% |
| Density (g/cm2) | ISO R1183D | 0.94 g/cm2 |
| Dielectric Strength (KV/mm) | IEC 243 | 20KV/mm |
| Dielectric Constant | IEC 243 | 2.5max |
| Longitudinal Change (%) | ASTM D 2671 | ±5% |
Fearture:
1.1 Working Temperature : -45 ~ 110 ℃
1.2 Shrinking temperature range: 120 ℃
1.3 Standard color: Clear
1.4 Other 12 colors available: White, Blue, Grey, Yellow, Brown, Black, Orange, Pink, Red, Cyan, Green, Purple.
Package:
