Waterproof IP68 FTTH Fiber Optic Outdoor Distribuction Box 16 cores

It is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. It intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTx network building.

Specification:

Features:

1.1 Maximum 16fiber splice capacity, stainless anti-rust bolts and nuts
1.2 Easy for maintenance and expansion, neat cabling.
1.3 1×16 PLC Splitter can be installed in each splitter cassette.

Application:

2.1 Fiber-to-the-Home (FTTH) Networks
      Acts as a termination point for optical fibers entering homes or buildings.
      Splits and distributes signals to multiple subscribers via optical splitters.
2.2 Telecommunication Networks
      Used in Central Offices (COs) and Outside Plant (OSP) environments.
      Facilitates connections between backbone cables and distribution cables.
2.3 Data Centers & Enterprise Networks
      Manages high-density fiber connections between servers and switches.
      Provides easy access for maintenance and upgrades.
2.4 Cable TV (CATV) & Broadband Distribution
      Distributes optical signals to multiple endpoints (e.g., set-top boxes, modems).
      Supports PON (Passive Optical Network) architectures like GPON/EPON.
2.5 Mobile Backhaul & 5G Networks
      Connects cell towers to the core network via fiber.
      Enables high-speed, low-latency data transmission for 5G small cells.

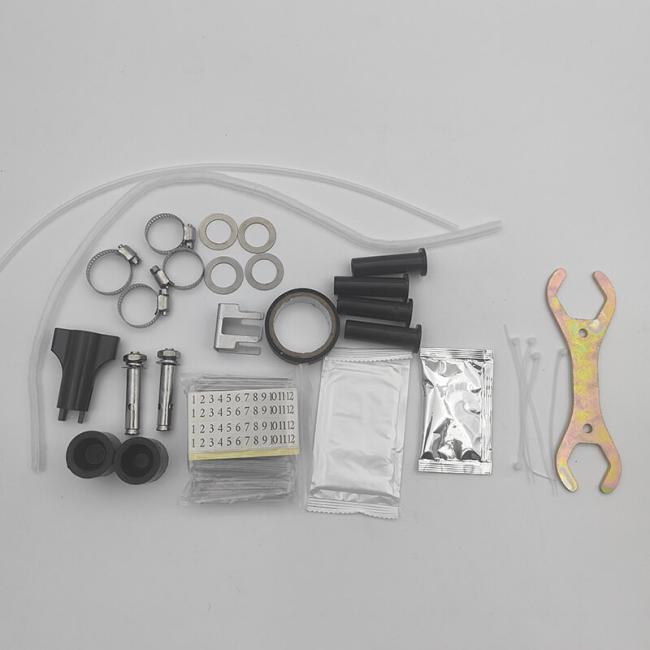

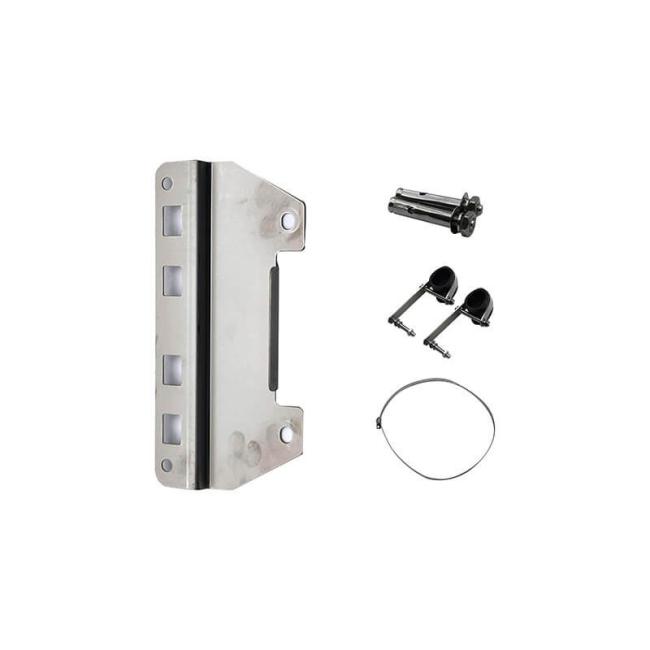

Accessories:
