Engineering track, hydraulic chassis, easy to move, more suitable for plain, plateau and other landforms, chassis 4 legs, drilling
construction vibration is small, good stability
4500 KG Hydraulic Crawler Foundation Pile Driver for Large Diameter Construction
Price:
$19,000.00/sets 1-2 sets
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
Be Focus
Product Description
Product Description
Product Paramenters
drilling depth | drilling depth | 120M | |
drilling diameter | 1500mm | ||
Power head speed | 17 r/min | ||
Power head torque | 11 kN.m | ||
Maximum lifting force of rig | 10t | ||
Effective height of the rig | 4620mm | ||
drill rod | Diameter 168mm*6.5mm thickness *2m | ||
Drill rod power | 11KW | ||
Sand and gravel pump | throughput | 200L/min | |
rated power | 22KW | ||
Vacuum pump | Maximum displacement | 4.66m³/min | |
Input power | 7.5kw | ||
Generator set | Rated power | 50kw | |
Rated voltage | 380v | ||
Rated frequency | 50Hz | ||
Specifications (Length * width * height) | 4300*1600*2800 | ||
Product advantage

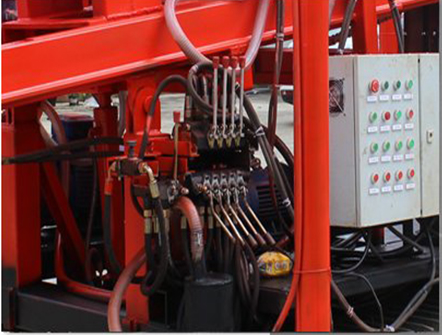

The handle and instrument of all the actuator of the reverse circulation rig are on the operating platform, so the operation and
control are convenient and reliable.
control are convenient and reliable.
The drilling frame of the reverse circulation drilling machine has the advantages of large drilling stroke, large torsional
resistance, simple structure, convenient maintenance, easy handling, convenient operation of the hole, and large top Angle
drilling can be constructed
resistance, simple structure, convenient maintenance, easy handling, convenient operation of the hole, and large top Angle
drilling can be constructed

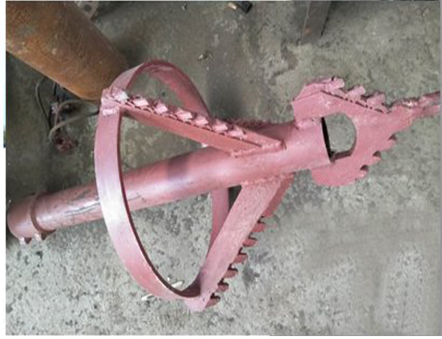

The bit is cast as a whole, with high impact resistance, high impact capacity, high drilling efficiency, heat treatment of drill
pipe, high hardness and low wear
pipe, high hardness and low wear
Usage scenario
Multi-purpose easy construction
Suitable for railway, water conservancy and other construction projects and outdoor mountain geological sampling survey, geological core drilling, small grouting holes, blasting holes, etc.

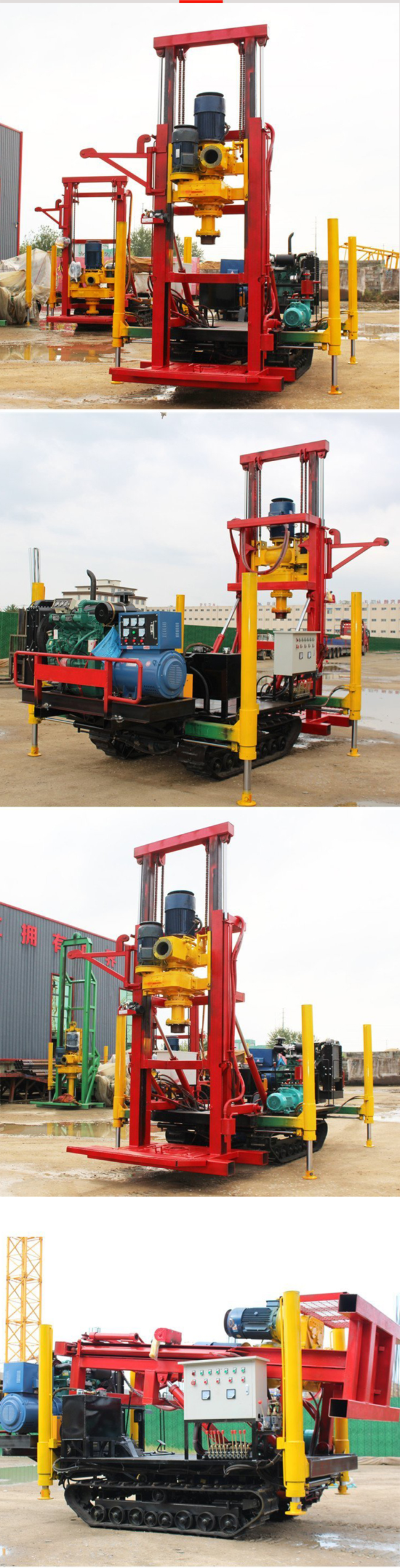

Production Show
Company Information
Company profit
Be Focus Electromechanical Equipment Co., Ltd. was founded in 1998 (formerly Yulong, Xinxiang Bolting and shotcreting support plant), which is specialized in building mines, tunnel bridges, subway culverts Design and research of concrete machinery for hydropower engineering, underground engineering and coal high-methane mine roadway It is a high-tech enterprise integrating innovation, production, sales and service.
Company culture
Cooperative unit
Productive capacity
Certifications
Packaging & Delivery
FAQ
1. Who are we? We are based in Henan, China, start from 2005,sell to Domestic Market(40.00%),North America(15.00%),Southeast Asia(10.00%),Africa(10.00%),South America(5.00%),Oceania(5.00%),Western Europe(5.00%),Eastern Europe(3.00%),Mid East(2.00%),Eastern Asia(00.00%),Central America(00.00%),Northern Europe(00.00%),Southern Europe(00.00%),South Asia(00.00%). There are total about 21-50 people in our office. 2. How can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 3.What can you buy from us? Concrete Mixer,Concrete Pump,Concrete Road Paver,Steel Bar Straightening and Cutting Machine,Steel Bar Bending Machine 4. Why should you buy from us not from other suppliers? Henan Be Focus Machinery Manufacturing Co., Ltd. is a professional production and processing company for steel machinery, concrete mixers, road machinery, batching machines, etc. It has a complete and scientific quality management system. 5. What services can we provide? Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES; Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF; Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow; Language:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian, Korean,Hindi,Italian
