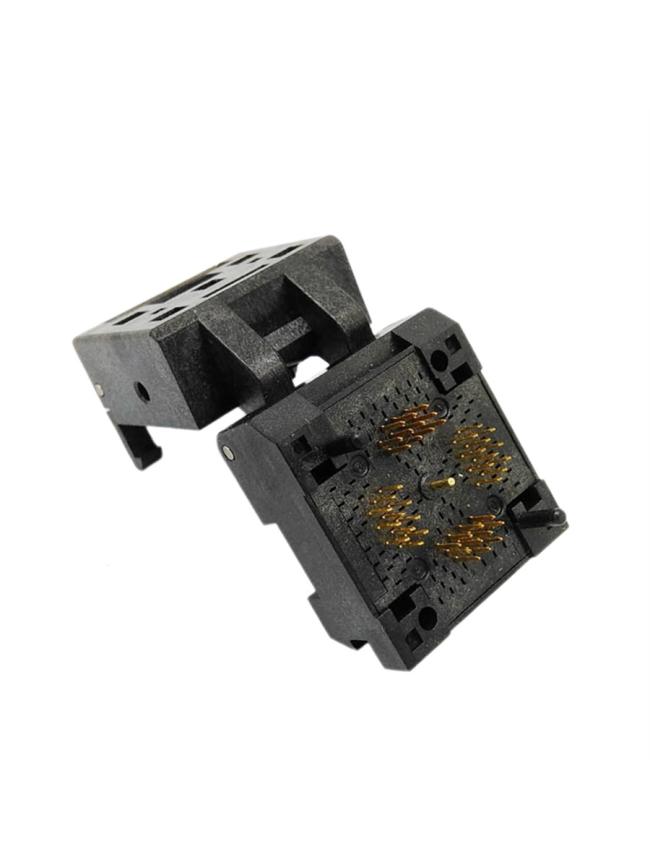

QFN44 MLF44 WLCSP44 Burn in Socket Pin Pitch 0.5mm IC Body Size 7x7mm IC550-0444-010-G Clamshell Flash Test Socket Adapter

Product Features:

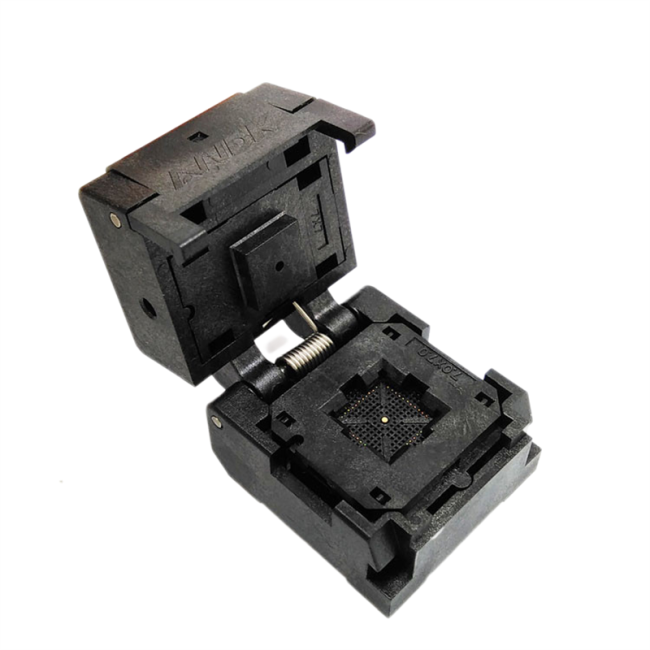

a.Clamshell structure burn in socket

b.Adopting engineering material for socket structure,

Strength is high ,lifetime is long

c.Adopting import BeCu material for socket contact

Spring ,thickening gold-plating surface ,impedance is small elasticity is good

d.For 0.4mm pitch package

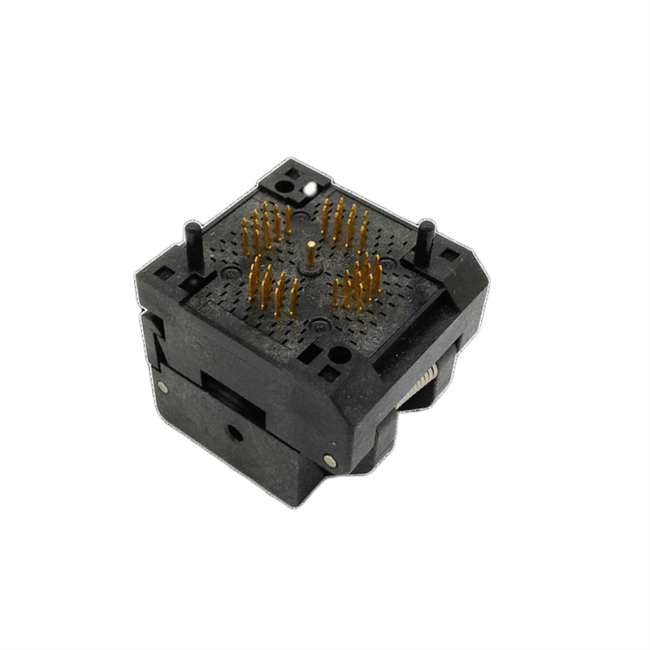

e.Thru hole design

Material & Performance:

Ø socket Body: PEI

Ø Contacts:Beryllium Copper Alloy

Ø Contact Plating:Gold over Nickel

Ø Operation Force:2.0KG min, the more PINs the greater force

Ø Contact Resistance:50mΩ max

Ø Dielectric:700V AC for 1 minute

Ø Insulation Resistance:1,000MΩ500V DC

Ø Max Current Capacity : 1A

Ø Temperature Rating:-55℃~+175 ℃

Ø Life Span 15,000 Times (Mechanical)

Note :

* 100% brand new , high Quality and duarable

* Tested before shipping

* Easy to use

* Technical support and datasheet are available if you need .

* we are the original manufacturer and welcome anyone to be our distribution agents

* Professional manufacturer in all kinds of IC chip testing sockets and adapters.

More Quantities with LOWER PRICE!

* More types of sockets and adapters for eMMC , eMCP , SOP , SSOP , TSSOP , QFP ,QFN , BGA , SOT , MSOP , DFN and customize design , for customized socket and more product detail , please feel free to contact us .

Specification and Dimension :

* Type : Test & Burn in Socket ( without pcb )

* Package : QFN44 , MLF44 , WLCSP44

* Pin Pitch : 0.5 mm

* Pin Count : 44 pins

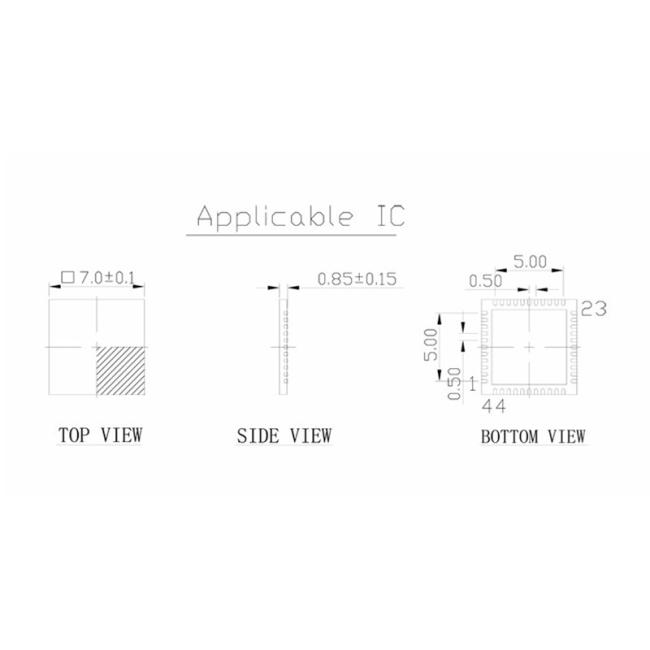

* Applicable IC body size : 7x7 mm

Package Including :

* QFN44-0.5 adapter 1 piece
