Multifunctional Cell Phone Signal Jammer Blocking 10 Antennas 2G 3G 4G 5G WIFI GPSL1 Signals
10 Antennas Full Bands Multifunctional Cell Phone Signal Jammer Blocking 2G.3G.4G.5G.WIFI.GPSL1 Signals

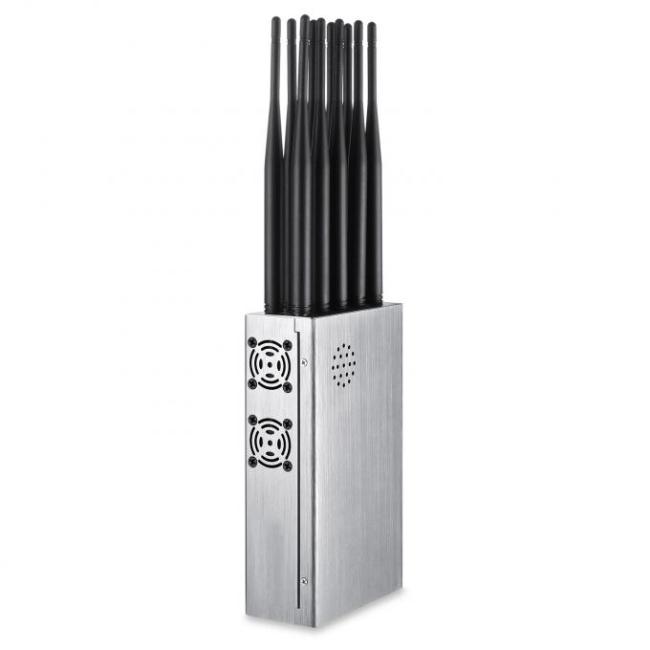

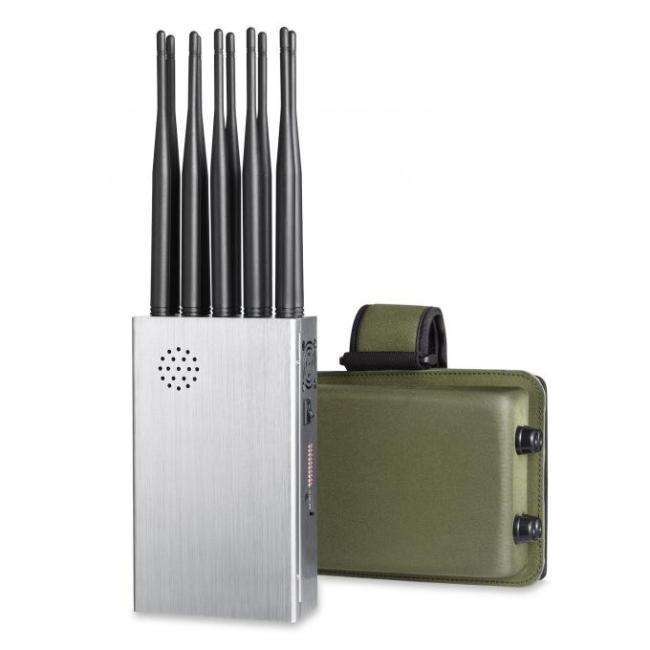

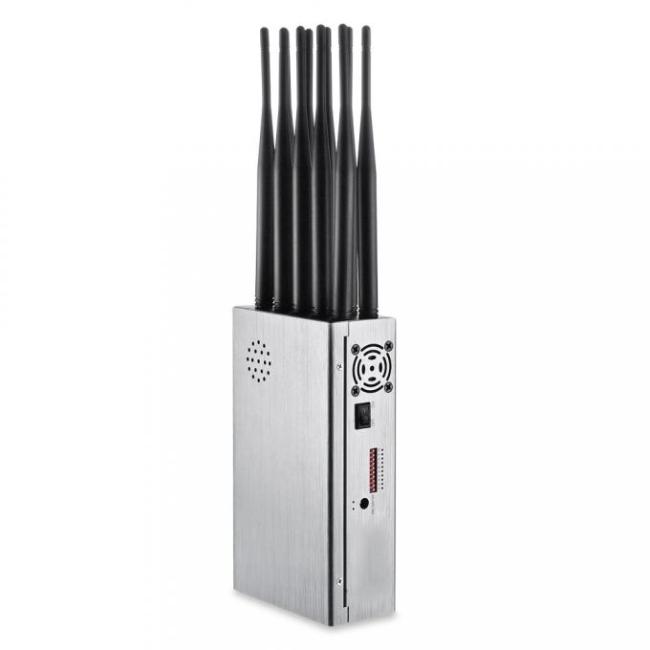

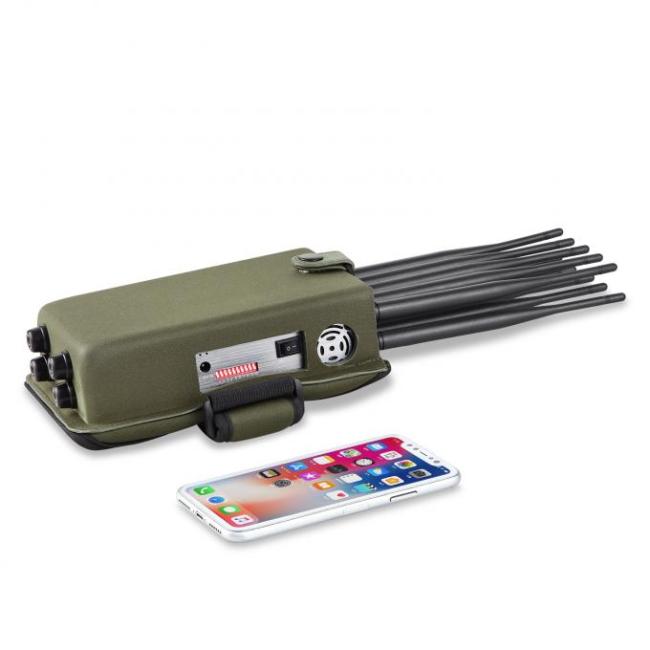

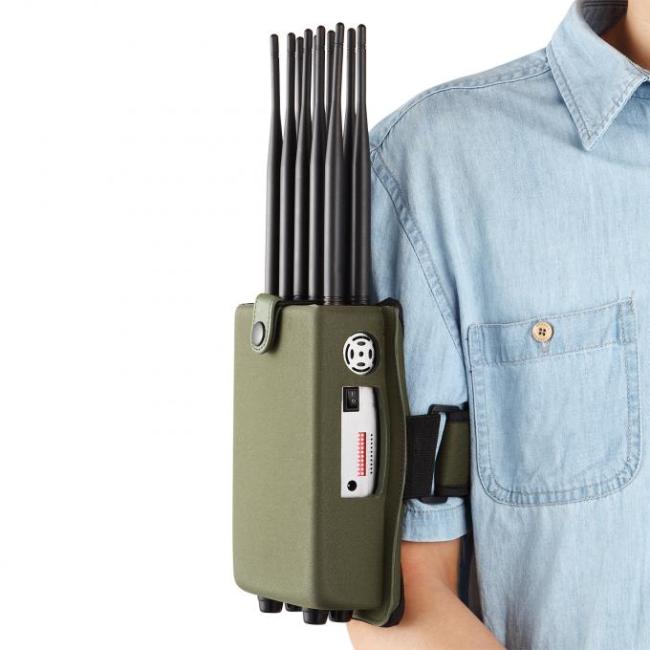

This 10 antennas multifunctional hand-held portable cell phone jammer is the private design of JinYaTong Technology , designed with 2 models '1080A' and '1080B' for your option .
1: JYT-1080A shielding mobile phone 2G 3G 4G 5G and GPSL1 WIFI signals
2: JYT-1080B shielding mobile phone 2G 3G 4G 5G and WIFI LOJACK signals
This cell phone jammer meets your blocking needs for the most common affected frequency types.
And the handheld design makes it easy to carry.
Build-in 3 cooling fans and Bigger hot sink ensure the device to work safe and continuously
Specifications:
Cover interface standards:
JYT-1080A
Band 1:CDMA: 850 to 894MHz
Band 2:GSM: 925 to 960MHz
Band 3:DCS: 1805 to1990MHz
Band 4:3G : 2110 to 2170MHz
Band 5:4G : 2620 to 2690MHz
Band 6:4G1: 738 to 821MHz
Band 7:5G1 : 3300 to 3600MHz
Band 8:5G2 : 3600 to 3800MHz
Band 9:GPSL1: 1570 to 1580MHz.
Band 10:WIFI: 2400 to 2485 MHz
JYT-1080B
Band 1:CDMA: 850 to 894MHz
Band 2:GSM: 925 to 960MHz
Band 3:DCS: 1805 to 1990MHz
Band 4:3G : 2110 to 2170MHz
Band 5:4G : 2620 to 2690MHz
Band 6:4G1: 738 to 821MHz
Band 7:5G1 : 3300 to 3600MHz
Band 8:5G2 : 3600 to 3800MHz
Band 9:Lojack: 165 to 174MHz.
Band 10:WIFI: 2400 to 2485 MHz
We can also customize the frequencies according to different requirements,Please feel free to contact us anytime!
Parameters:
Output Power: 10W
Power supply: AC110-240V to DC12V
Full set Weight: 2 KGS
Size: 195*102*48(not include Antennas)
Length of antenna : 166mm Gain:2.0dbi
Shielding Radius: 20meters at-70dBm (depends on the signal strength in the given area)
Battery: Built-in battery 7.4V/7800mAh
Working Time: More than 2 hours
Cooling System: High efficiency aluminum alloy radiator, Build-in 3x cooling fans
1.ODM and OEM orders are welcome.
2.Small size design,easy to cary.
3.With DIP Switch,Support the adjust or turn off of any single band without influencing the other bands's operation.
4.The shileding distance up to 20m, Depends on the signal strength in a given area.
5.External Omni-directional antennas. all the TX frequency covered down link only.
6.Equipped with a car charger, which can be used directly in the car, 12V DC/AC power supply is also available.
7.Built-in rechargeable 7.4v 7800Mah battery, Working time up to 2 hours.
8.Silkscreen OEM service can be offered.
Application:
1.It can be applied at meeting rooms, conference rooms, museums, galleries, theaters, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more;
2.For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument.
Warranty: one year from delivery date
