ROHS certified high sealing cap tape: Suitable for precision electronic components, providing reliable packaging for high-precision carrier tapes
Price:
Discussible
MOQ:
20Rolls
Delivery Time:
3-5days
Brand:
ACE DELIXIN
Product Description

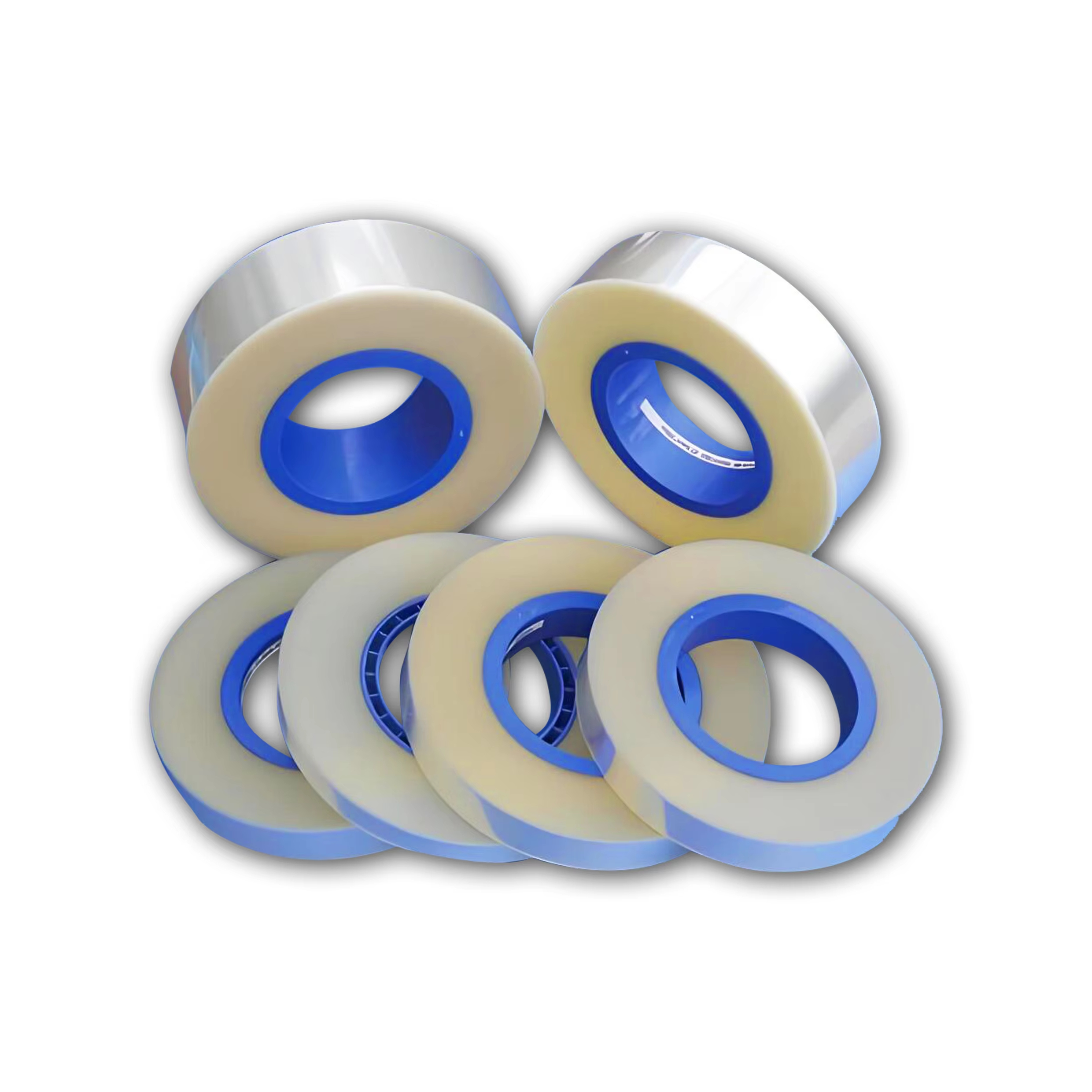

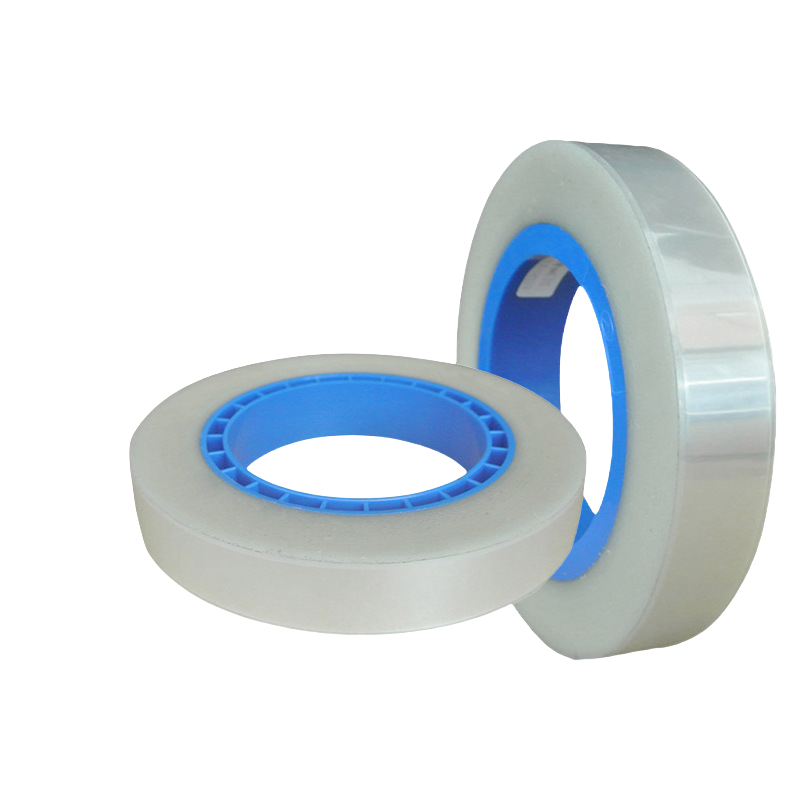

5.4-81.5MM Self-Adhesive Tape / Heat-Seal Cover Tape
Product Description
Custom cap straps for SMD carrier tapes: ESD anti-static PET transparent cap straps are provided, supporting heat-sealing and self-adhesive types
About our Cover Tape:
| Carrier tape(mm) | 8 | 12 | 16 | 24 | 32 | 44 | 56 | 72 | 88 |
| Cover tape(mm) | 5.4 | 9.3 | 13.5 | 21.3 | 25.5 | 37.5 | 49.5 | 65.5 | 81.5 |
Physical Properties:
| Item | Heat Seal Tape | Self-Adhesive Tape |
| Backing | PET film | PET film |
| Adhesive Type | Acrylic | Acrylic |
| Thickness (um) | 58±5 | 58±2 |
| Haze (%) | 8-12 | 2 |
| Tensile strength (kg/15mm) | 3.5 | MD/ 22.4 TD / 25.9 |
| Appearance | Clear | Transparent |
| Sealing style | Heat | Autohesion, press fit |
| Elongation (%) | 40 | MD/ 147 TD / 120 |
| Surface resistance (ohm) | 10E10-12 | 10E9-11 |
| (Surface Side) | ||
| Surface resistance (ohm) | 10E10-12 | 10E9-11 |
| (Sealant Side) | ||
| (Sealing Condition Suggestion) | 160~200,0.30Secx2.5kg/cm2 | ------ |
