Injection-molded empty plastic spools with SGS certification. Custom parts for SMD carrier tape carriers are available.
Price:
Discussible
MOQ:
100pcs
Delivery Time:
5-8days
Brand:
ACE DELIXIN
Product Description

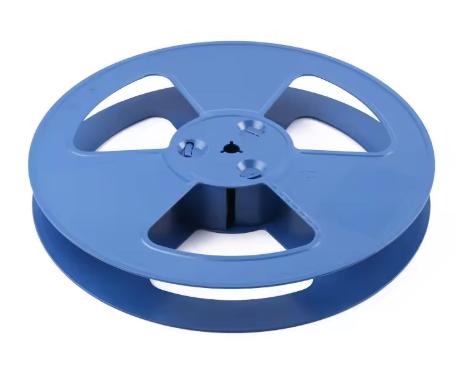

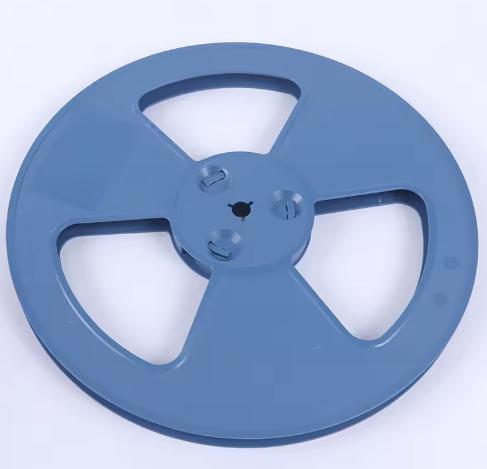

72mm/88mm width plastic cable reels, specially designed for mass packaging of SMD resistors.
Used together with cover tape, reel carrier tape forms a fully enclosed package. It effectively protects electronic components against static electricity, moisture, dust and mechanical damage during transportation, storage and assembly. With standardized dimensions and precisely positioned locating holes, it ensures perfect compatibility with automated equipment and greatly boosts production efficiency.

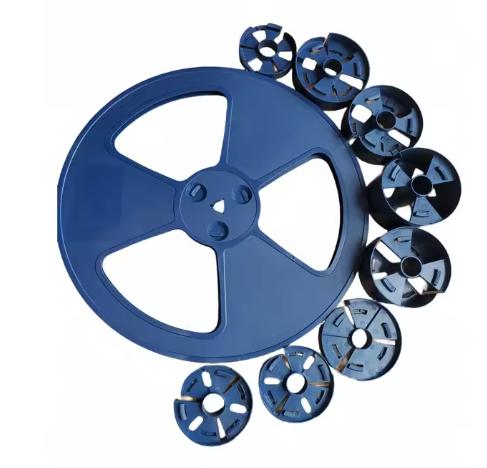

A wide range of size specifications including 7-inch, 13-inch and 15-inch are available to meet component packaging demands of different capacities. It is widely applied in the automated production process of integrated circuits, semiconductor devices, chip resistors, capacitors and other electronic components.
| Outer Diameter Sizes | 7-inch/ 13-inch/ 15-inch |
| Carrier Tape Width | 8-88 mm |
| Pocket Depth | 0.4-35 mm |
| Positioning Hole Tolerance | ±3μm |
| Dimensional Tolerance | ±0.05 mm |
| Anti-static Performance(Surface Resistance) |
106-109Ω/sq |
| Operating Temperature Range | -20℃ to 80℃ |
| Main Materials | PS/ ABS |
| Maximum Capacity(Components per Reel) |
5,000-20,000 pcs |
