2.25kw Power Voltage 220 380 Air Cooler Condenser with Corrosion Resistance Salt Spray
Product Description:

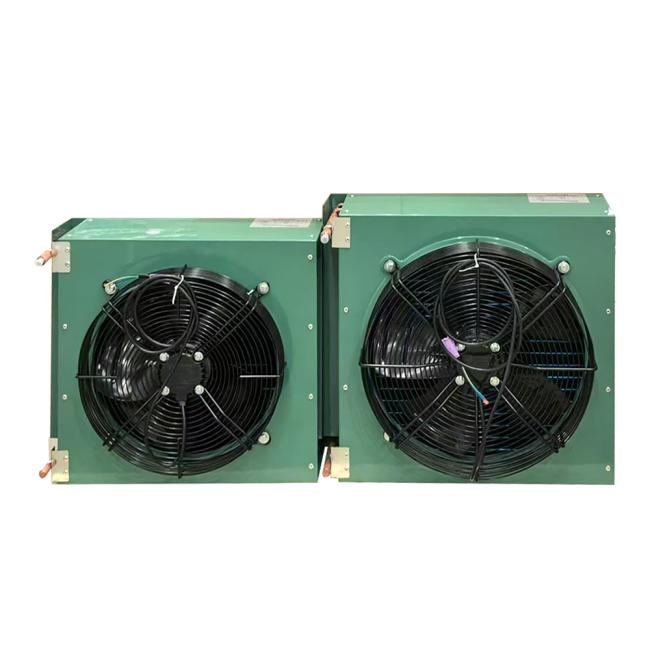

The Air-Cooled condenser is a type of cooling equipment that is used with radiating facilities. It offers three types to meet the specific needs of customers, which are H, V, and W. The H type is side blowing while the V and W types are roof blowing, providing a variety of options to choose from.
The Air-Cooled condenser is designed with a reasonable structure and excellent interchangeability, making it easy to work with and adjust. It is highly versatile and can be paired with various compressors according to the specific demands of different cooling systems.
Customers can select the Air-Cooled condenser with either window fin or honeycomb fin, depending on their particular requirements. Both fin types are available to meet various cooling needs, providing flexibility and adaptability in a single package.
| Model | Area | Row bend several | Fan | Intake pipe Ømm | The liquid pipe Ømm | Weight kg | ||||
| Number | Power(W) | Air volume m³/h | Wind leaf diameter Ø mm | Voltage(V) | ||||||
| FNH-0.6/2 | 2 | 2x4.5 | 1 | 16 | 500 | 200 | 220 | 10 | 10 | 4 |
| FNH-0.9/3 | 3 | 3x45 | 1 | 16 | 500 | 200 | 220 | 10 | 10 | 43 |
| FNH-1.2/4 | 4 | 3x5.5 | 1 | 40 | 800 | 250 | 220 | 10 | 10 | 6 |
| FNH-1.8/6 | 6 | 3*7 | 1 | 90 | 1250 | 300 | 220 | 10 | 10 | 8 |
| FNH-2.5/8.5 | 8.5 | 4*7 | 1 | 90 | 1250 | 300 | 220 | 10 | 10 | 10.2 |
| FNH-3.6/12 | 12 | 4*8 | 1 | 164 | 1800 | 350 | 220/380 | 16 | 12 | 13.8 |
| FNH-4.5/15 | 15 | 4*9 | 1 | 164 | 1800 | 350 | 220/380 | 16 | 12 | 16.5 |
| FNH-5.4/18 | 18 | 4*10 | 1 | 216 | 3000 | 400 | 220/380 | 16 | 12 | 22 |
| FNH-6.6/22A | 22 | 5*10 | 1 | 216 | 3000 | 400 | 220/380 | 19 | 16 | 24 |
| FNH 7.6/22B | 22 | 4*8 | 2 | 2*164 | 2*1800 | 350 | 380 | 19 | 16 | 26 |
| FNH-8.4/28 | 28 | 4*8 | 2 | 2*164 | 2*1800 | 350 | 380 | 19 | 16 | 29 |
| FNH-9.9/33 | 33 | 4*9 | 2 | 2*216 | 2*3000 | 400 | 380 | 19 | 16 | 36 |
| FNH-13.0/41 | 41 | 4*12 | 2 | 2*216 | 2*3000 | 400 | 380 | 19 | 16 | 40 |
| FNH-15.0/49 | 49 | 4*14 | 2 | 2*216 | 2*3000 | 400 | 380 | 19 | 16 | 50 |
| FNH-18.0/60 | 60 | 4*14 | 2 | 2*216 | 2*3000 | 400 | 380 | 22 | 16 | 58 |
| FNH-21.0/70 | 70 | 4*18 | 4 | 4*164 | 4*1800 | 350 | 380 | 22 | 19 | 72 |
| FNH-24.0/80 | 80 | 4*20 | 4 | 4*216 | 4*1800 | 400 | 380 | 25 | 22 | 81 |
| FNH-27.0/90 | 90 | 4*20 | 4 | 4x216 | 4*3000 | 400 | 380 | 25 | 19 | 90 |
| FNH-30.0/100 | 100 | 4x24 | 4 | 4x216 | 4*3000 | 400 | 380 | 25 | 19 | 98 |
| FNH-36.0/120 | 120 | 4*24 | 4 | 4x216 | 4*3000 | 400 | 380 | 28 | 19 | 105 |
| FNH-42.0/140 | 140 | 5*24 | 4 | 4x290 | 4*4500 | 450 | 380 | 28 | 22 | 128 |
| FNH-45.0/150 | 150 | 5*24 | 4 | 4x290 | 4*4500 | 450 | 380 | 32 | 25 | 135 |
| FNH1-54.0/180 | 180 | 6x24 | 4 | 4x449 | 4x6500 | 500 | 380 | 32 | 25 | 170 |
| FNH-60.0/200 | 200 | 6*24 | 4 | 4x449 | 4x6500 | 500 | 380 | 32 | 25 | 190 |
| FNH-66.0/220 | 220 | 6x25 | 4 | 4x449 | 4x6500 | 500 | 380 | 32 | 25 | 200 |
| FNH-75.0/250 | 250 | 6x28 | 4 | 4x670 | 4*8500 | 550 | 380 | 32 | 25 | 220 |
| FNH-90.0/300 | 300 | 6x28 | 4 | 4x670 | 4*8500 | 550 | 380 | 32 | 25 | 260 |
Applications:
Refrigeration units require a specialized component called an H-type condenser to effectively operate and maintain cold storage at various temperatures.
The H-type condenser is uniquely designed to meet the specific requirements of refrigeration units and can help to ensure the unit operates efficiently and effectively.
By matching the cold storage at different temperatures, the H-type condenser can contribute to energy savings and reduce operating costs, while also increasing the longevity of the refrigeration unit.
Packing and Shipping:
Product Packaging:
-
The air cooler condenser will be packaged in a sturdy cardboard box.
-
The box will be labeled with the product name and description.
-
The product will be wrapped in protective materials to prevent damage during shipping.
Shipping:
-
The air cooler condenser will be shipped via a reliable courier service.
-
A tracking number will be provided to the customer once the product has been shipped.
-
The estimated delivery time will vary based on the customer's location.
FAQ:
Q: Where is this air cooler condenser product made?
A: It is made in China.
Q: What is the minimum order quantity for this air cooler condenser product?
A: The minimum order quantity is 1.
Q: What is the price range for this air cooler condenser product?
A: The price range is between $200 and $100000.
Q: What are the packaging details for this air cooler condenser product?
A: The packaging details are in a wooden case.
Q: What is the delivery time for this air cooler condenser product?
A: The delivery time is 30 work days.
Q: What are the payment terms for this air cooler condenser product?
A: The payment terms are T/T and L/C.
