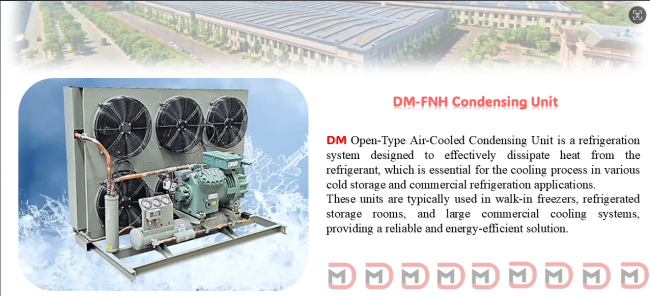

Product Description:

1. H-Type
2. Fins
3. Axial Fans
4. Fan Motor
5. Filter
6. Air Inlet/Outlet Grilles
7. Headers/Manifolds
8. Support Frame
9. Deflector Plates
10. Thermal Expansion Valves
11. Pressure Relief Valves
12. Electrical Controls
13. Compressor

Features:

1. Compact Design: The H-shaped tube layout minimizes space requirements while maximizing heat transfer surface area, ideal for installations with limited space.

2. Water-Free Operation: No water consumption or complex water circulation systems, making them environmentally friendly and suitable for arid regions.

3. Versatility: Suitable for diverse applications, from small HVAC systems to large industrial refrigeration.

4. Durability: Corrosion-resistant materials (e.g., aluminum fins, galvanized steel casing) ensure reliability in harsh environments.

Technical Parameters:

Temperature : 0~10°C and -15~-25°C

Nominal heatexchange capacity : 17200~62000

Fan diameter: 400~550mm

Voltage : 380V/220V

refrigerant: R404A-R507A*R22

Applications:

Commercial HVAC Systems: Installed in office buildings, shopping malls, and hotels for air conditioning and heat pump systems.

Industrial Refrigeration: Used in food processing plants, cold storage warehouses, and beverage factories to maintain low temperatures.

Data Centers: Provides cooling for server racks and IT equipment.

Customization:

Product Customization Services for Freezer Room Condensing Unit

Air Cooled Condensing Units Product Customization Services

Cold Room Condensing Unit Customization Services

Brand Name: DM

Model Number: DM-UNIT-FNH

Place Of Origin: China

Packaging Details: Wooden Case

Delivery Time: 30 Work Days

Payment Terms: T/T;

Supply Ability: 10000pcs/year

Condenser Fan: Axial Fan

Condensing Temperature: 45~55C

Evaporation Temperature: -40℃~-10℃

Transport Package: Export Standard Carton & Pallet

Compressor Quantity: 1

FAQ:

Q: What is the brand name of the condensing unit?

A: The brand name of the condensing unit is DM.

Q: What is the model number of the condensing unit?

A: The model number of the condensing unit is DM-UNIT-FNH.

Q: Where is the condensing unit manufactured?

A: The condensing unit is manufactured in China.

Q: What are the payment terms for purchasing the condensing unit?

A: The payment terms for purchasing the condensing unit are T/T.
