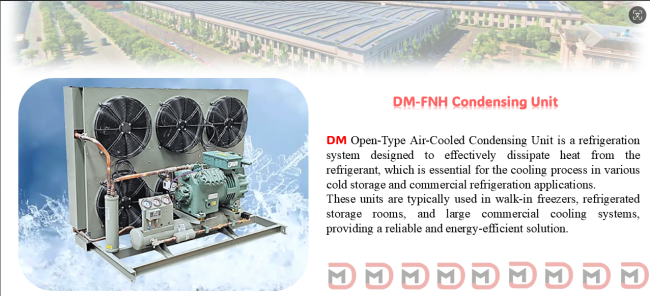

Product Description:

1.   H-Type

2.   Fins

3.   Axial Fans

4.   Fan Motor

5.   Filter

6.   Air Inlet/Outlet Grilles

7.   Headers/Manifolds

8.   Support Frame

9.   Deflector Plates

10.   Thermal Expansion Valves

11.   Pressure Relief Valves

12.   Electrical Controls

13.   Compressor

Features:

1. Compact Design: The H-shaped tube layout minimizes space requirements while maximizing heat transfer surface area, ideal for installations with limited space.

2. Water-Free Operation: No water consumption or complex water circulation systems, making them environmentally friendly and suitable for arid regions.

3. Versatility: Suitable for diverse applications, from small HVAC systems to large industrial refrigeration.

4. Durability: Corrosion-resistant materials (e.g., aluminum fins, galvanized steel casing) ensure reliability in harsh environments.

Technical Parameters:

Main Parameters

Temperature : 0~10°C and -15~-25°C

Nominal heatexchange capacity: 17200~62000

Fan diameter: 400~550mm

Voltage: 380V/220V

Refrigerant: R404A-R507A*R22

Applications:

1. Commercial HVAC Systems: Installed in office buildings, shopping malls, and hotels for air conditioning and heat pump systems.

2. Industrial Refrigeration: Used in food processing plants, cold storage warehouses, and beverage factories to maintain low temperatures.

3. Data Centers: Provides cooling for server racks and IT equipment.

Customization:

Product Customization Services for Freezer Room Condensing Unit
Brand Name: DM
Model Number: DM-UNIT-FNH
Place Of Origin: China
Price: $2000~$100000
Packaging Details: Wooden Case
Delivery Time: 30 Work Days
Payment Terms: T/T;
Supply Ability: 1000000pcs/year
Weight: 260 Lbs
Compressor Type: Scroll
Fan Quantity: 1~6
Condenser Fan: Axial Fan
Evaporation Temperature: -40℃~-10℃

FAQ:

Q: What is the brand name of the condensing unit?

DM

Q: What is the model number of the condensing unit?

DM-UNIT-FNH

Q: Where is the condensing unit manufactured?

China

Q: What is the minimum order quantity for the condensing unit?

1
