18-50L Total Fuel Consumption Customized Generator Sets for Diamond Mining Equipment
Price:
Negotiable
MOQ:
1 set
Delivery Time:
Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month
Product Description
Generator sets power land diamond mining equipment for sale
1. Description:
All processing power from the generator sets or electric power . all production processing can be combined flexibly . all processing is consist of feeding system .screening system . water supply system.iielection mining system . according to the different mining to match the didderent election mining device and tailing processing system . generally electric machine : agitation chute with fixed chute . jigging and centrifuge so on .meantime we can according to the customer's inquirement to match the refine device .
2.Images:

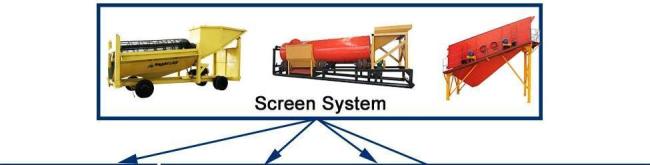

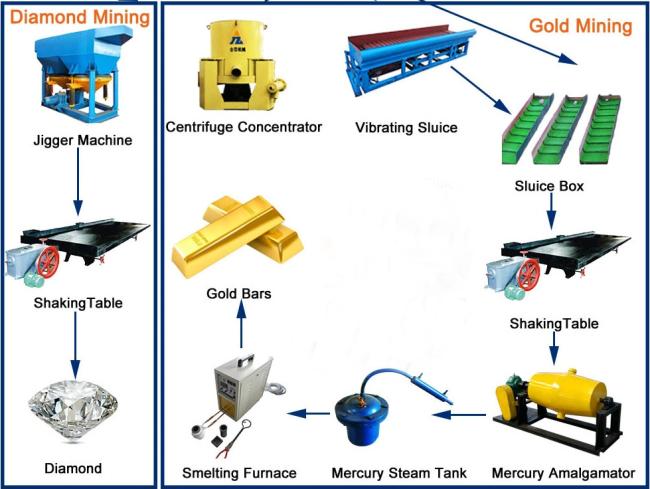

production processing and drawing :
| land Material (gold .diamond .iron powder so on ) is feed into the storage with grille by excavator and loader,high pressure water released and wash the mineral by water pipe at the around storage,then,mixture mineral by forward into the drum screen .we are according to the matrial to choose the which kind of drum .(normally drum screen and agitation screen )according to the drum net mess to get the difference matierial .This finer material passes through the screen openings while the large material tumbles towards its eventually exit at the real of the drum.After that,the fine mineral and water go through the sluice bow which is consist with gold grass mat.The no use mineral are washed out and the gold are catched by the gold grass mat. the mixture material is collected by the mining machinery( agiatation chute .jigger . concentration so on ) . so it is finished roughting . |
3.Land mining machiery application :
| 1 | Land gold |
| 2 | Land diamond |
| 3 | Land gold and diamond |
4. Basic prameter:
| Specifications of Professional Diamond Mining Equipment Machine on sale | |||
| Model | Set Sail 50 | Set Sail 100 | Set Sail 200 |
| Parameters | |||
| Size /mm | 7000*2000*3000 | 8300*2400*4700 | 9800*3000*5175 |
| Capacity | 50-80 tph | 100-150 tph | 200-300 tph |
| Power | 50 kw | 120 kw | 150 kw |
| Feeder Hopper /mm | 2000*2200 | 3000*2200 | 3800*3000 |
| Clay Scrubber /mm | φ1000*2000 | φ1200*3000 | φ1500*3000 |
| Trommel Screen /mm | φ1200*3000 | φ1500*3500 | φ1800*4000 |
| Sluice Box | 2 sets | 3 sets | 4 sets |
| Water Supply /m³ | 120 m³ | 240 m³ | 370 m³ |
| Wheels | 6 wheels | 10 wheels | 10 wheels |
| Recovery Rate | 98% | 98% | 98% |

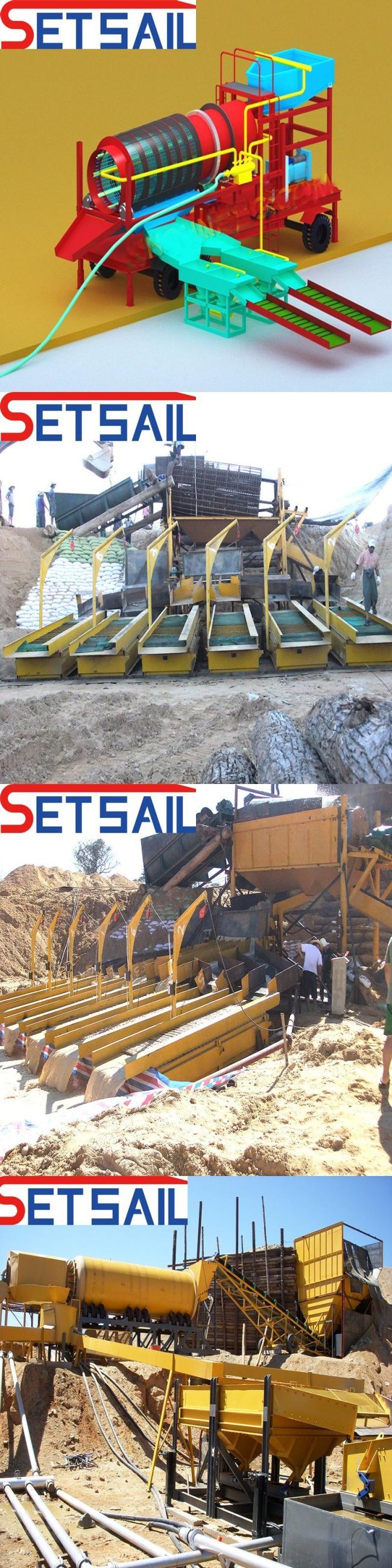

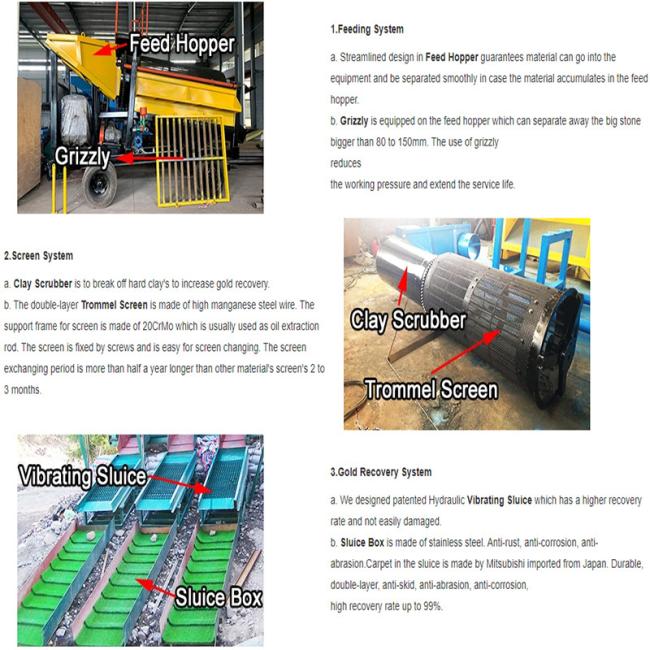

5.Detailed image :
6.Feature: | 1 | simple structure . portable machiner conbine togehter |
| 2 | This machiner can elect gold and diamond in the same time |
| 3 | High recovery gold and diamond ratio. |
| 4 | Low failure . High capacity . |
7. All device in the land mining production line :
8.Company profile :
| Set sail factory is found in 1992 . it is one of the leader of china dredging machinery equipment industrial. We have manufacture experience more than 20 years so far. Our mainly product : all kinds power of cutter suction dredger (electric hydraulic ) jet suction dredger trailing suction dredger wheel suction dredger chain bucket dredger chain bucket mining dredger land mining machinery multi-function service working boat sand transportation boat sand wishing machinery etc. We can according to customers requirement to make the design and customize the product . |
7.Feature: | 1 | simple structure . portable machiner conbine togehter |
| 2 | This machiner can elect gold and diamond in the same time |
| 3 | High recovery gold and diamond ratio. |
| 4 | Low failure . High capacity . |
8. Our service :
| 1 | we can send the export enginer to the site before doing the design . help the customers get the accurate design and solution |
| 2 | we can let the customers what know hwo well the equipment by the video |
| 3 | we can provide the 1-2 warrant and longlife technology support |
| 4 | Testing product before delivery product |
| 5 | Assist customers in formulating construction plans |
| 6 | Free guide to equipment installation and debugging |
| 7 | Train technical staff for customers |
| 8 | we can send the engginer to the aboard for installation and free training wrokers |
