1200x900mm Flatbed CAD Paper Pattern Cutter Machine with 1200mm/s Cutting Speed and All Aluminum Countertops

Name: 1200x900mm Flatbed CAD Paper Pattern Cutter Machine with 1200mm/s Cutting Speed and All Aluminum Countertops
Brand: Wuhan Gemei Joint Technology Co., Ltd.

Price Negotiable

Price: $2,645.00--$3,499.00/Sets 1-10 Sets

MOQ: 1set

Delivery Time: 3-7 Working Days

Brand: KAEMI or OEM

Product Description

1200x900mm Flatbed CAD Paper Pattern Cutter

Professional pen drawing, writing, and paper pattern cutting machine designed for CAD paper pattern cutting applications across various industries.

Technical Specifications

Model	GM-1209B3	GM-1509B3	GM-1510B3	GM-1512B3
Cutting Window (Fabric Scope)	1200*900mm	1500*900mm	1500*1000mm	1500*1200mm
Overall Dimension (mm)	16001280750	19001280750	19001380800	19001580800
Cutting Speed	1200mm/s
Cutting Thickness	2mm
Cutting Materials	White Paper, Kraft, Plastic Board, Fiberboard, etc.
Repeatability Precision	≤0.01mm
Communication Port	USB/RJ45 Ethernet; Shared Folder Print in LAN
Buffer Memory Size	1M/8M/32M (Can buffer more than 1 page)
File Formats	HPGL (Compatible with Domestic and International CAD Online)
Control Panel	9 Keys and LED Display
Motor/Driver	High Performance 3 Phase Step-motor
Supply Voltage	AC 220V/110V±10%, 50Hz/3.5KW
Working Environment	Temperature: -30~50℃ or -22~122℉; Humidity: 10%-95% RH
Fasten	Vacuum Adsorption
Paper Thickness	150g-500g/㎡
Application Areas	Garment, Shoes-Making, Bags, Furniture, Automobile Decoration, Box Cutting, etc.

Main Features

New frame design ensures machine stability when running at high speed
Optimized circuit layout with compact electrical components for better heat dissipation
Cutting starting points and cutting sequence display system
Latest system version with optimized dashed lines and arcs for smoother operation
Unique error data identification function

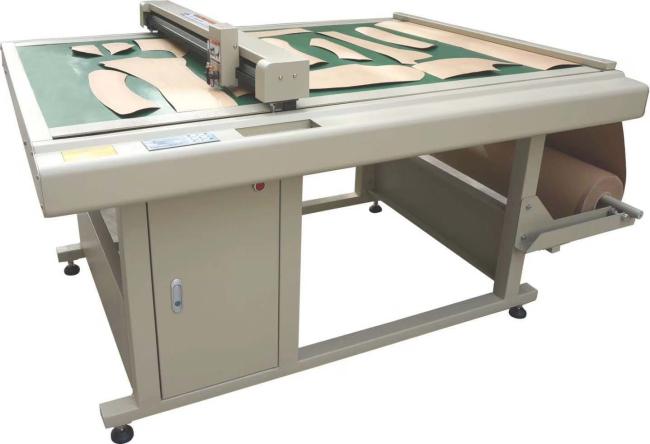

CAD Paper Pattern Cutter machine front view showing control panel and cutting area

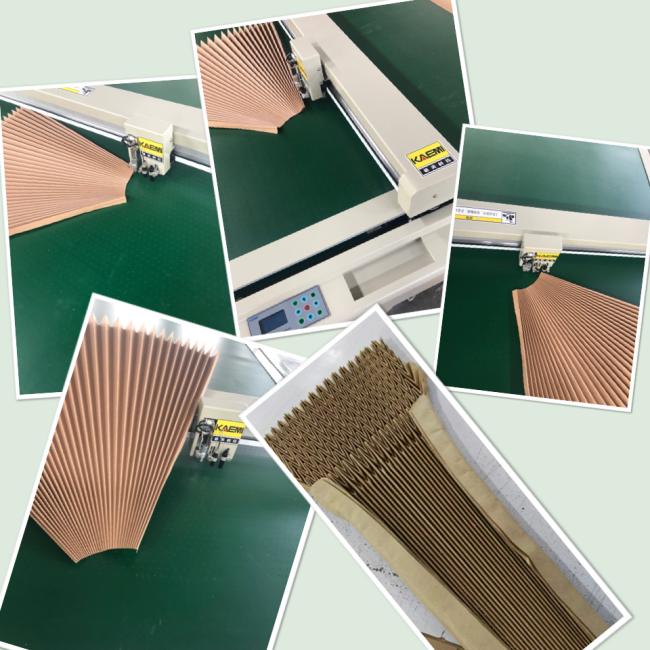

Close-up view of CAD cutter cutting mechanism and precision components

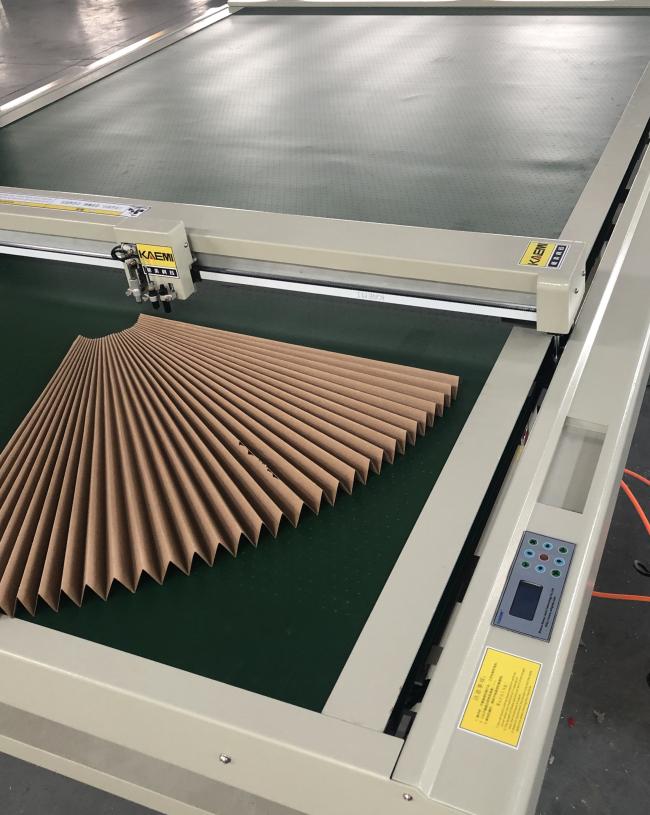

Side view of industrial CAD paper pattern cutting machine

Manufacturer Profile

Wuhan Gemei Joint Technology Co., Ltd. is located in the national economic development Zone - Wuhan Linkong economic development zone. We are a specialized company focusing on the research and development, production, sales and service of automation equipment for the clothing, bags and shoes industries.

Our company shoulders the historical mission of "changing traditional industries with high technology", and is committed to providing CAM/CAD integrated solutions for garment, luggage, footwear and other enterprises. Gemei is recognized as a high-tech enterprise and software enterprise in Hubei Province, with "information port" certification and status as an entrepreneurship enterprise for overseas students in Wuhan City.

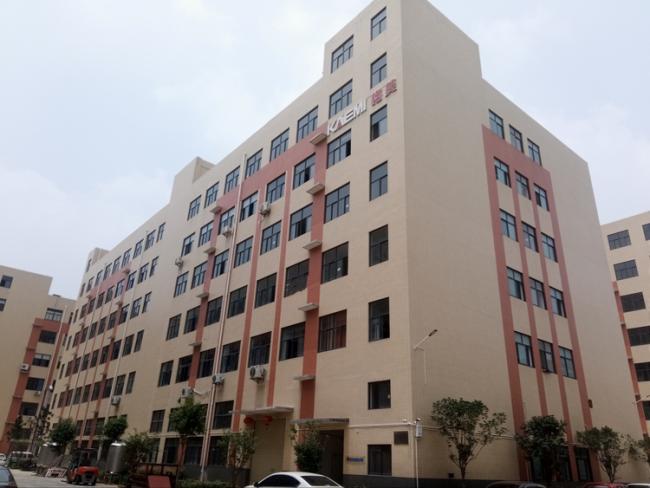

Wuhan Gemei Joint Technology company building and facilities

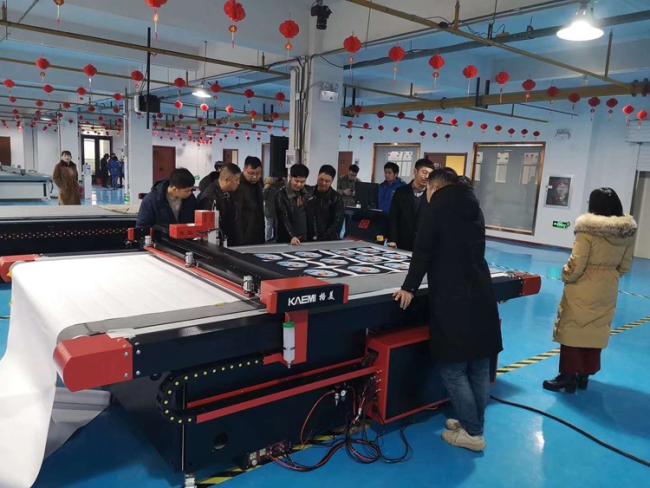

Manufacturing facility and production line at Gemei factory

Quality control and testing area in Gemei production facility

Since establishment, GEMEI has developed a comprehensive series of cutting machines for clothing, bags, shoes and hats, obtaining multiple software copyright and patent certificates. Our GM series cutting machines combine the essence of Chinese and foreign technologies, integrating world advanced technology with Chinese manufacturing advantages.

We maintain a research and development team composed of doctors, senior engineers and other high-quality talents, insisting that "innovation" is the eternal driving force behind GEMEI's development.

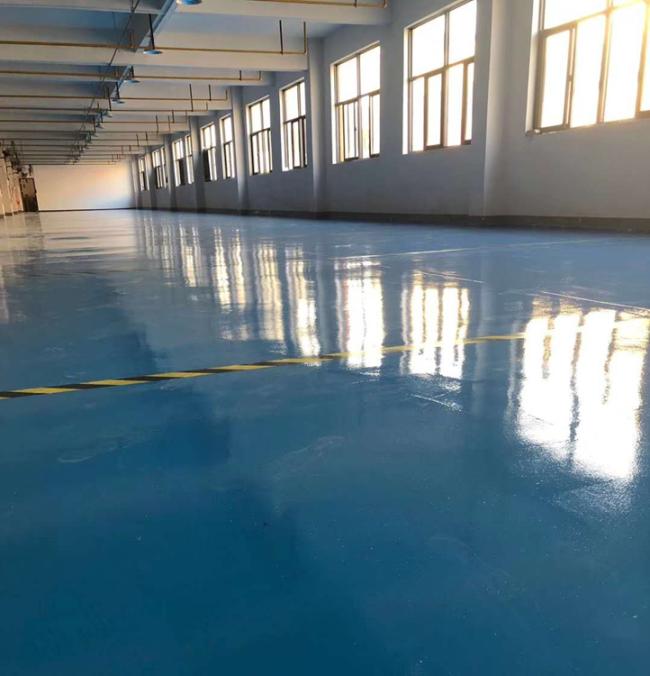

Research and development team working on cutting machine technology

Packing & Delivery

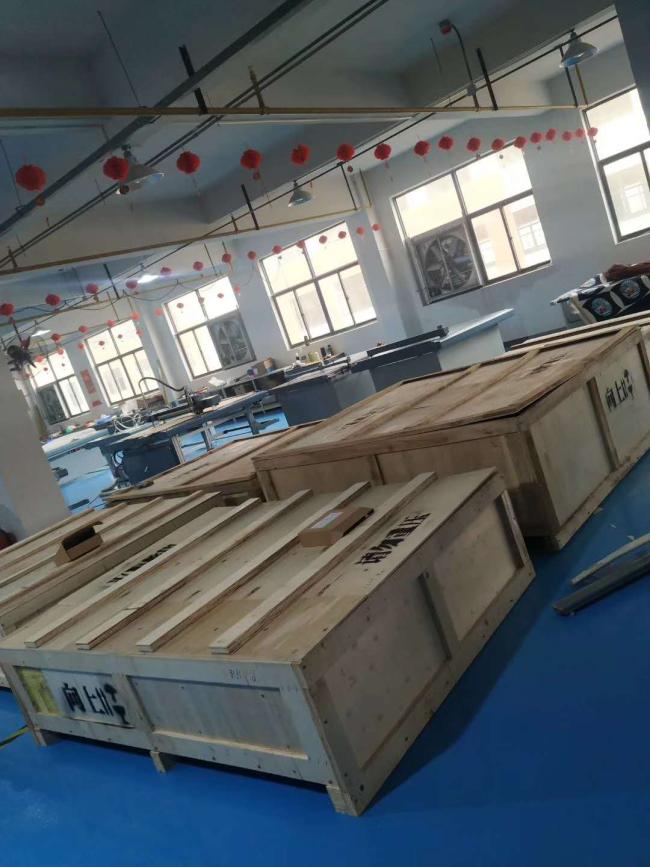

Secure wooden case packaging for CAD cutter machine

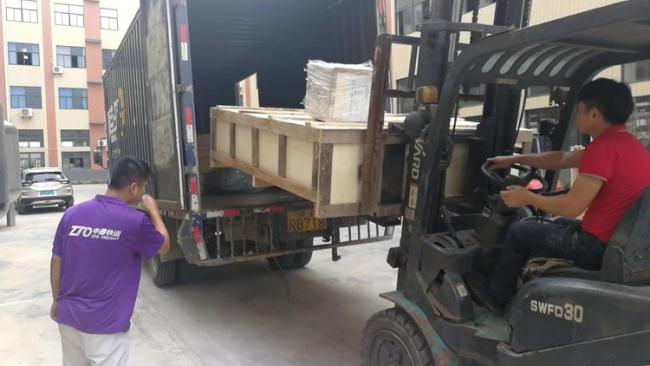

Export-standard packaging process for industrial equipment

Ready for shipment CAD cutting machines in protective packaging

Industry Exhibitions

Gemei exhibition booth at international trade show

Industry professionals visiting Gemei exhibition display

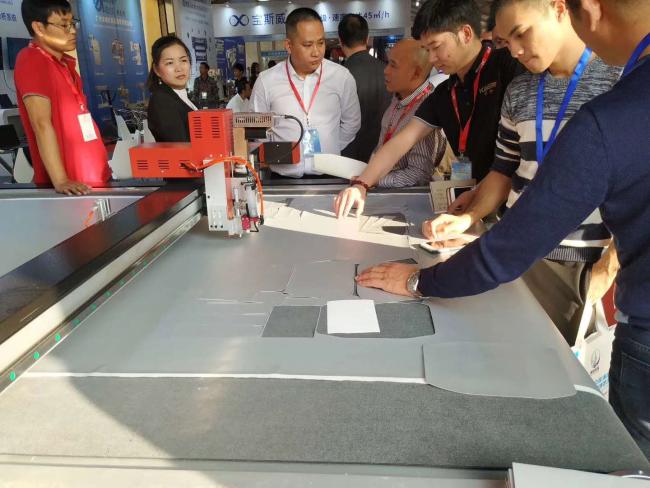

Live demonstration of CAD cutting machine at exhibition

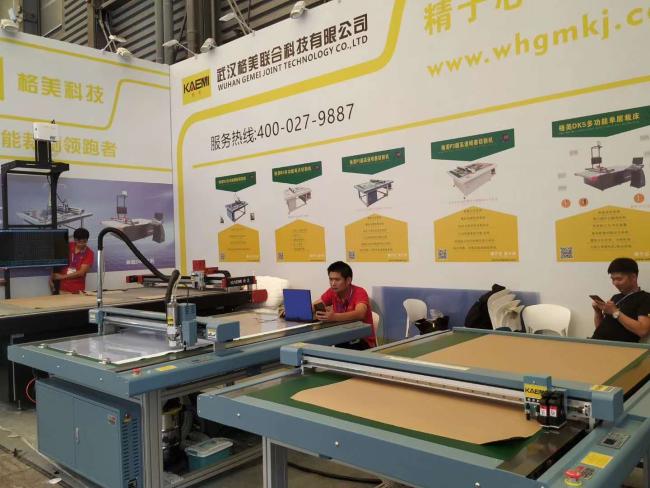

Gemei team interacting with customers at trade event

International business discussions at industry exhibition

Award recognition and certificates displayed at exhibition

Certifications

Quality management system certification for manufacturing

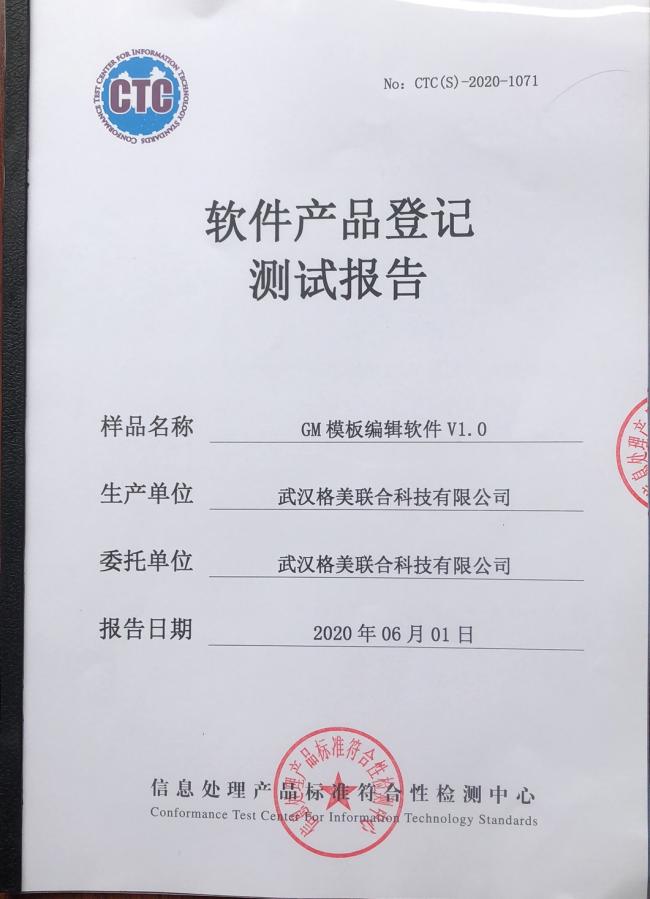

Industry-specific quality and performance certifications

Frequently Asked Questions

Are you a manufacturer?

Yes, we specialize in the R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters in this field for over 10 years.

How do you pack these products?

Usually packed in wooden cases according to export standards, with customization available based on your requirements.

Is it customizable?

Yes, we offer standard sizes commonly used in the industry and can customize according to your specific requirements.

What about after-sales service?

We provide professional after-sales support with 24-hour technical assistance available by phone, email, or Skype.

What is your lead time?

Spot goods typically take 2-4 days, while custom orders require 5-7 days for completion.
