1209/1509 Pen Plotter Printer with 1200mm/s Cutting Speed All Aluminum Countertops and Edge Finding Viewing System
Price:
$2,645.00--$3,499.00/Sets 1-10 Sets
MOQ:
1set
Delivery Time:
2-5 Working Days
Brand:
KAEMI or OEM
Product Description
1209/1509 Pen Plotter Printer Flatbed Paper Pattern Cutter CAD Graph Contour Plotter
Professional flatbed plotter and cutter designed for CAD graph contour plotting and paper pattern cutting applications across various industries.
Main Features
- New frame design ensures machine stability during high-speed operation
- Optimized circuit layout with compact electrical components and improved heat dissipation
- Cutting starting points and cutting sequence display system
- Latest system version with optimized dashed lines and arcs for smoother machine operation
- Unique error data identification function
- Compatible with normal ball pen, rollerball pen, and gel pen drawing
- Intelligent line subdivision speed control system (linear, arc, sharp, arc)
- Intelligent identification priority processing system (external contour, repeated lines, cutting)
- Automatic paging and sequential display system
- Updated edge finding viewing system for precise sticker cutting according to edges
Technical Specifications
| Model | GM-1209B3 | GM-1509B3 | GM-1510B3 | GM-1512B3 | GM-1812B3 |
|---|---|---|---|---|---|
| Paper Cutting Area | 1200*900mm | 1500*900mm | 1500*1000mm | 1500*1200mm | 1800*1200mm |
| Overall Dimension | 1705*1445*1100mm | 2005*1445*1100mm | 2005*1445*1100mm | 2005*1645*1100mm | 2305*1645*1100mm |
Maximum Speed: 1200mm/s
Materials Fasten: Vacuum Adsorption
Maximum Cutting Thickness: 2mm
Cutting Materials: White Paper, Kraft, Plastic Board, Fiberboard, etc.
Material Loading Method: Manual/Automatic
Pen/Knife Type: Ball Pen, Rollerball Pen, Gel Pen/Tungsten Steel Blade
Precision: ≤0.01mm
Communication Port: USB/RJ45 Ethernet; Shared Folder Print in LAN
File Formats: HPGL (Compatible with Domestic and International CAD Online)
Control Panel: 9 Keys and LED Display (Chinese and English Switch)
Motor/Driver: High Performance 3 Phase Step-motor
Supply Voltage: AC 220V/110V±10%, 50Hz
Working Environment: Temperature: -30~50℃ (-22~122℉); Humidity: 10%~95% RH
Paper Thickness: 150g-500g/㎡
Application Areas: Garment, Shoes-Making, Bags, Furniture, Automobile Decoration, Box Cutting, etc.
Materials Fasten: Vacuum Adsorption
Maximum Cutting Thickness: 2mm
Cutting Materials: White Paper, Kraft, Plastic Board, Fiberboard, etc.
Material Loading Method: Manual/Automatic
Pen/Knife Type: Ball Pen, Rollerball Pen, Gel Pen/Tungsten Steel Blade
Precision: ≤0.01mm
Communication Port: USB/RJ45 Ethernet; Shared Folder Print in LAN
File Formats: HPGL (Compatible with Domestic and International CAD Online)
Control Panel: 9 Keys and LED Display (Chinese and English Switch)
Motor/Driver: High Performance 3 Phase Step-motor
Supply Voltage: AC 220V/110V±10%, 50Hz
Working Environment: Temperature: -30~50℃ (-22~122℉); Humidity: 10%~95% RH
Paper Thickness: 150g-500g/㎡
Application Areas: Garment, Shoes-Making, Bags, Furniture, Automobile Decoration, Box Cutting, etc.
Updated Feature: Edge Finding Viewing System with CCD Camera can Cut Sticker Ideally according to the Edges (Normal CAD Drawing and Cutting Function also Maintained)
Standard Configuration
- High Power Suction Air Pump *1
- Imported Leather Mesa Pad *1 (Factory Laid And Fixed)
- Pen Holder *1
- Special Tungsten Steel Blade *1

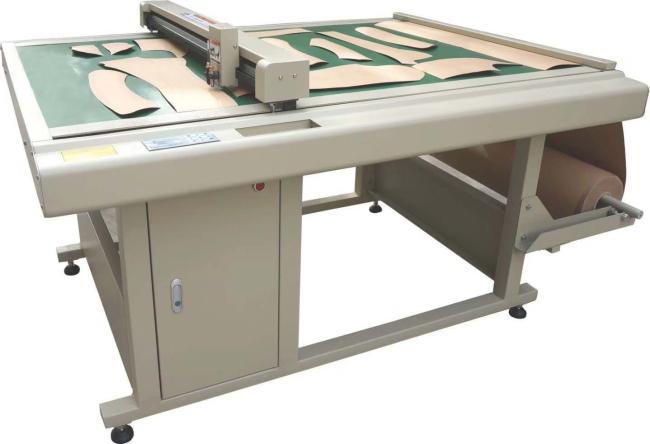

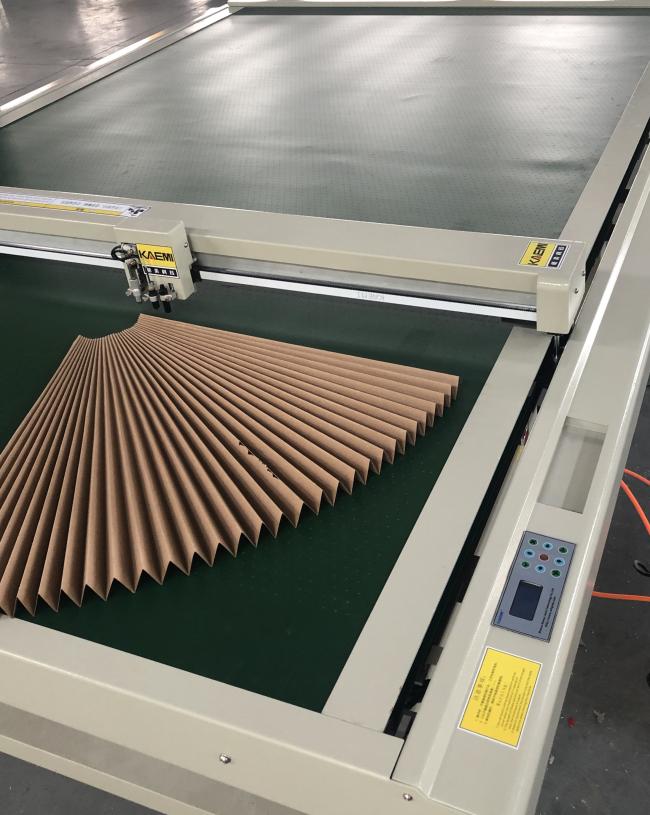

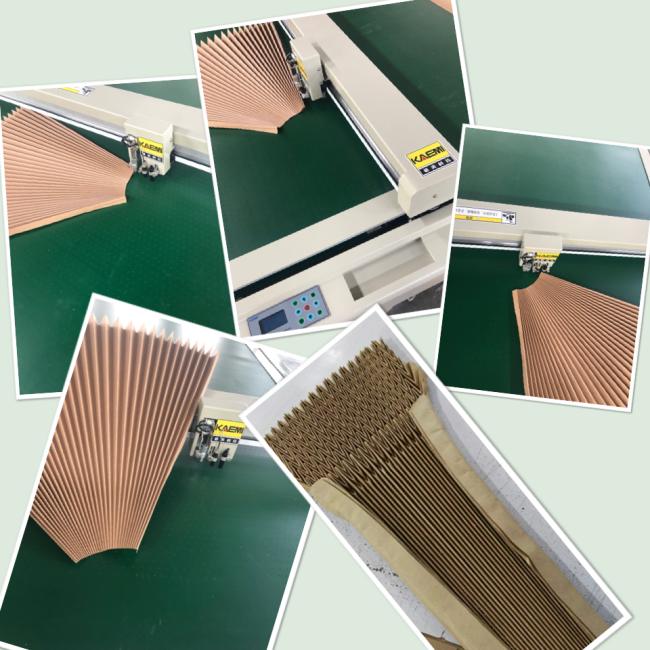

Product Images

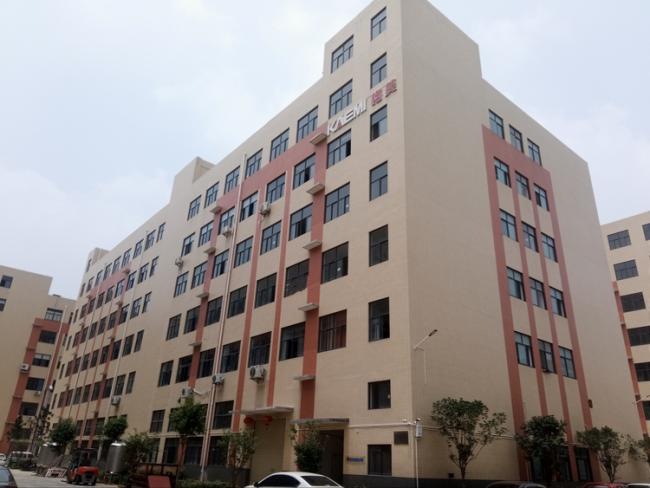

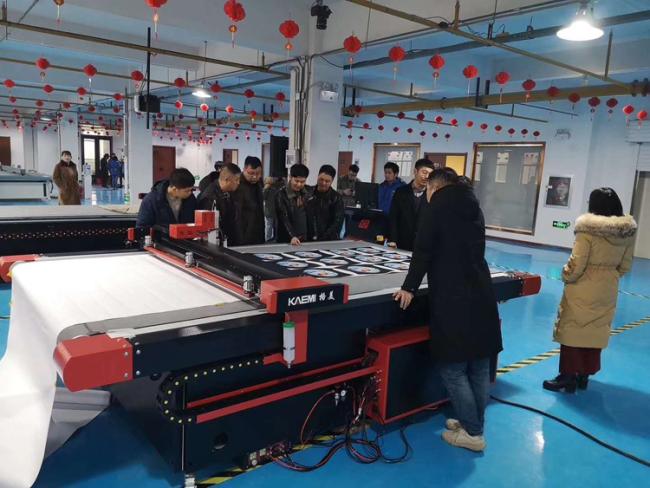

Manufacturer Profile
Wuhan Gemei Joint Technology Co., Ltd.
Located in the national economic development zone - Wuhan Linkong economic development zone. Specialized in research, development, production, sales and service of automation equipment for clothing, bags and shoes industries. The company carries the mission of "changing traditional industries with high technology" and provides CAM/CAD integrated solutions for garment, luggage, footwear and other enterprises. Gemei is a high-tech enterprise and software enterprise in Hubei Province, certified as an "information port" enterprise and entrepreneurship enterprise for overseas students in Wuhan City.
Located in the national economic development zone - Wuhan Linkong economic development zone. Specialized in research, development, production, sales and service of automation equipment for clothing, bags and shoes industries. The company carries the mission of "changing traditional industries with high technology" and provides CAM/CAD integrated solutions for garment, luggage, footwear and other enterprises. Gemei is a high-tech enterprise and software enterprise in Hubei Province, certified as an "information port" enterprise and entrepreneurship enterprise for overseas students in Wuhan City.
Since establishment, GEMEI has developed a series of cutting machines for clothing, bags, shoes and hats, obtaining multiple software copyright and patent certificates. Combining Chinese and foreign technologies, GM series cutting machines feature novel designs different from traditional domestic cutting machines, embodying the "good at core, simple in shape" design principle. The company maintains a research and development team composed of doctors and senior engineers, with "innovation" as the core development power.

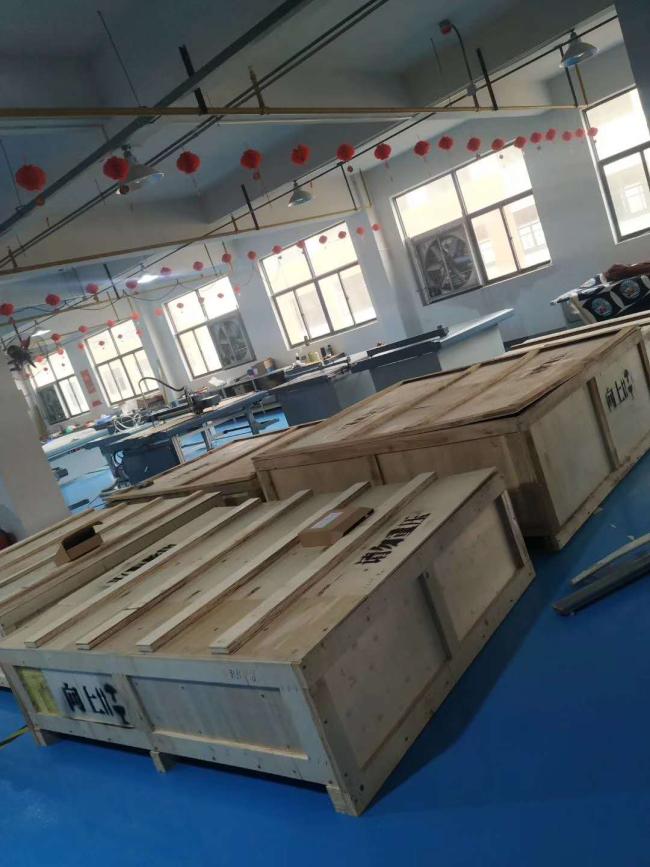

Packing & Delivery

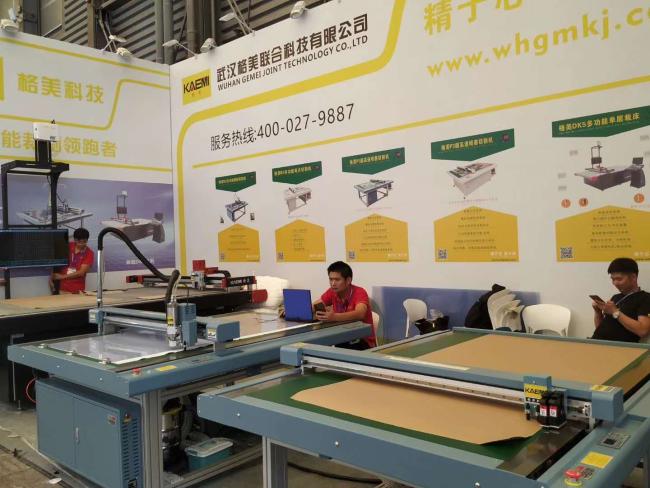

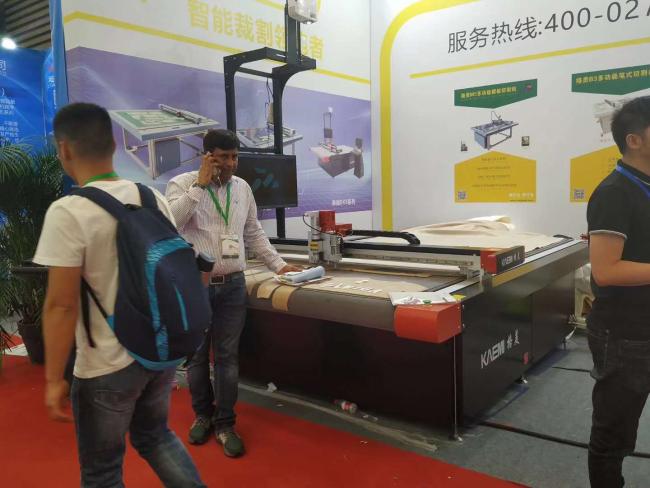

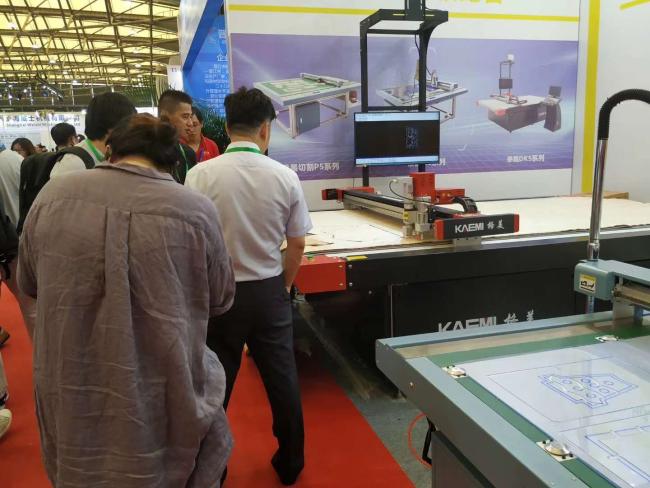

Exhibition & Trade Shows
Certifications & Quality Standards
Frequently Asked Questions
- Q: Are you a manufacturer?
A: Yes, we specialize in R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters with over 10 years of experience. - Q: How do you pack these products?
A: Usually packed in wooden cases according to export standards or customer requirements. - Q: Is it customizable?
A: Yes, we have standard sizes commonly used in the industry and can customize according to specific requirements. - Q: What about after-sales service?
A: We provide professional after-sales support with 24-hour technical assistance via phone, email, or Skype. - Q: What is your lead time?
A: Stock items typically ship in 2-4 days, while custom orders take 5-7 days.
