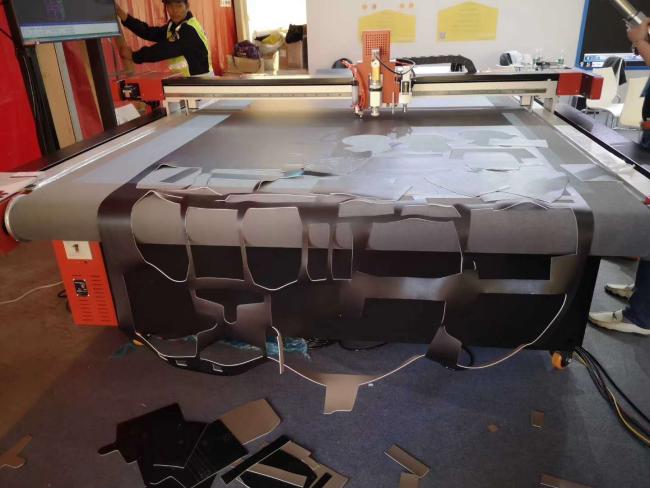

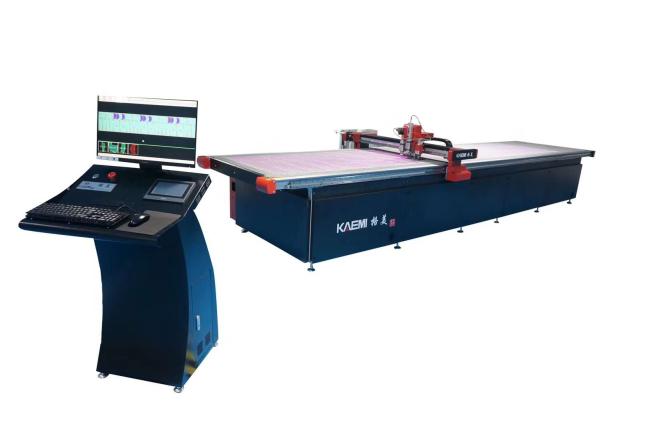

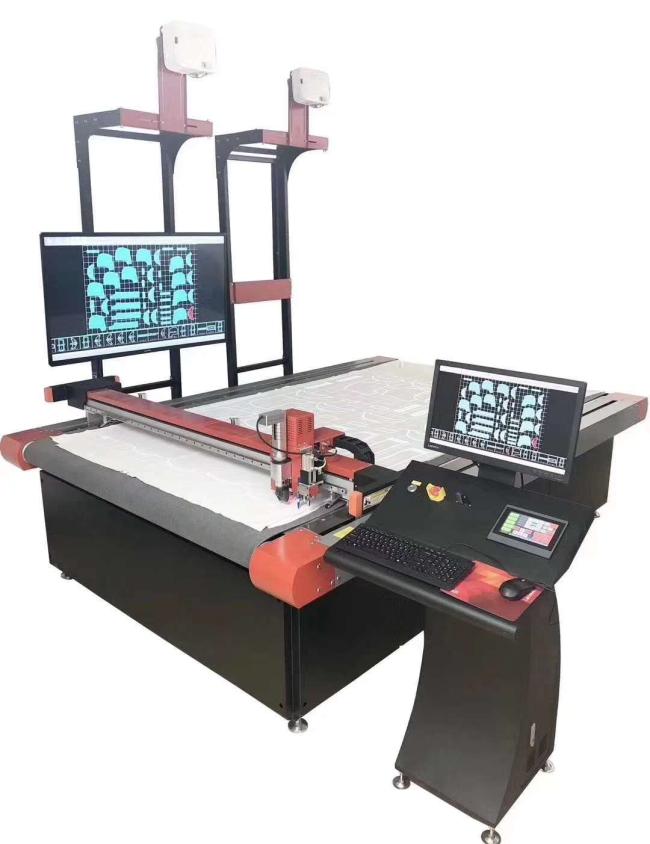

Automatic 2516 CNC Digital Cutter Machine with 2500x1600mm Cutting Scope and 35mm Thickness for Garment Fabric Cutting
Advanced automatic fabric feeder CNC digital cutter designed for precision garment, fabric, and textile cutting applications.
- Continuous Feeding System
- Independent Operator Touch Screen Control
- Various Scissors/Punching Devices
- Digital Image Cutting Positioning System
- Modular Partition Table and All-aluminum Profile Fuselage
- Imported Servo Motor/Drive System
- Remote Wireless Control Operating System
- Intelligent Suction Zoning System
| Model | GM-2516DK5 | GM-2518DK5 | GM3016DK5 |
|---|---|---|---|
| Cutting Window (Fabric Scope) | 2500×1600mm | 2500×1800mm | 3000×1600mm |
| Overall Dimension (mm) | 3420×2350×1220 | 3420×2550×1220 | 3920×2350×1220 |
| Materials Fasten | Vacuum Adsorption | ||
| Max Cutting Thickness | ≤35mm | ||
| Cutting Materials | Flexible Materials (Knitted Fabrics, PU, Leather, Sponge, Hard Materials, Cardboard, PVC Board, Various Fiber Composite Materials, etc.) | ||
| Cutting Speed | 100mm~1200mm/s (Speed varies according to cutting materials) | ||
| Tool Types | Milling Cutter, Nicking Tool, Drill, Pen | ||
| Repeatability Precision | ≤0.01mm | ||
| Communication Port | USB/RJ45 Ethernet, Shared Folder Print in LAN | ||
| Buffer Memory Size | 1M/8M/32M (Can buffer more than 1 page) | ||
| File Formats | DXF/HPGL/HPG/PLT Formats Compatible | ||
| Control Panel | Color Multilingual Touch Screen | ||
| Feeding Method | Roller and Crawler Feed Automatically | ||
| Supply Voltage | AC 220V/380V±10%, 50Hz | ||
| Fuse Value | 30A/35A | ||
| Working Environment | Temperature: 0~40℃ (32~104℉); Humidity: 20%~80% RH, No Condensation | ||
| Location Mode | Cross Laser, CCD Positioning | ||
| Power Consumption | Control Part: 2.2KW/h, Vacuum Part: 2.2-7.5KW/h | ||
| Application Areas | Garment, Shoes-Making, Bags, Furniture, Automobile Decoration, Advertising, Box Cutting, etc. | ||

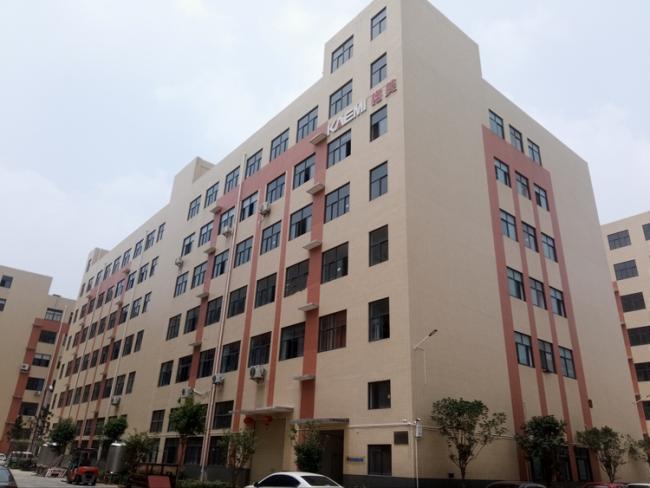

Wuhan Gemei Joint Technology Co., Ltd. is located in the national economic development zone - Wuhan Linkong economic development zone. We are a specialized company focusing on the research, development, production, sales and service of automation equipment for the clothing, bags, and shoes industries.
As a high-tech enterprise and software enterprise in Hubei Province, we are committed to providing CAM/CAD integrated solutions for garment, luggage, footwear and other enterprises. Our mission is to transform traditional industries with advanced technology.

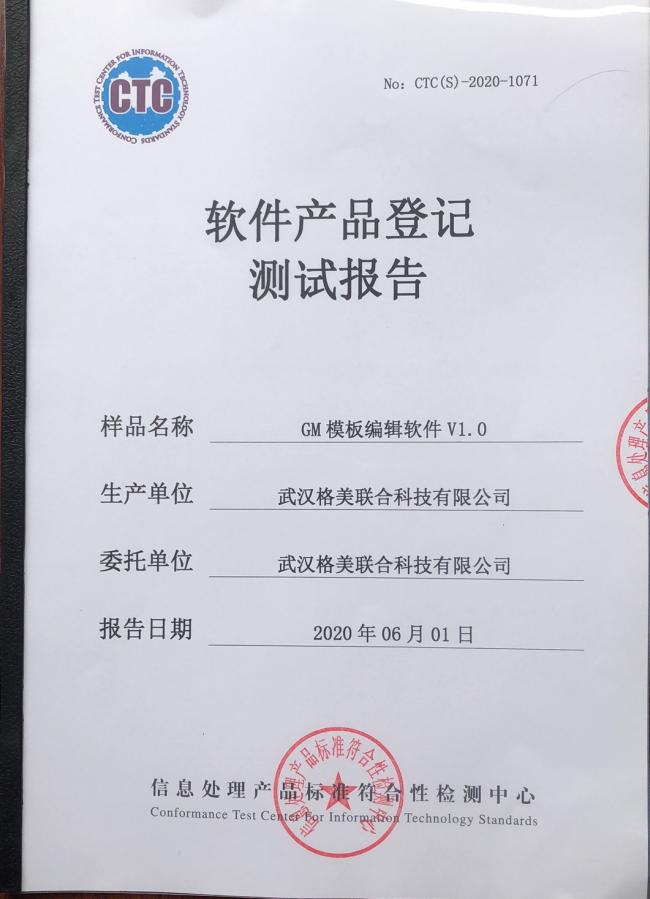

Since establishment, Gemei has developed a comprehensive series of cutting machines for clothing, bags, shoes and hats, obtaining multiple software copyright and patent certificates. Our GM series cutting machines combine international technology with Chinese manufacturing excellence, featuring innovative designs that prioritize core functionality and simplified operation.
