It has been widely used for alluvial gold, placer gold, tantalite, niobite, and tin ore concentration.
Heavy Duty Mobile Gold Mining Rotary Gold Sieving Machine Depending on the Model
Price:
$4,080.00 - $17,900.00/sets
MOQ:
1 unit
Delivery Time:
Negotiable
Brand:
Sinolion
Product Description

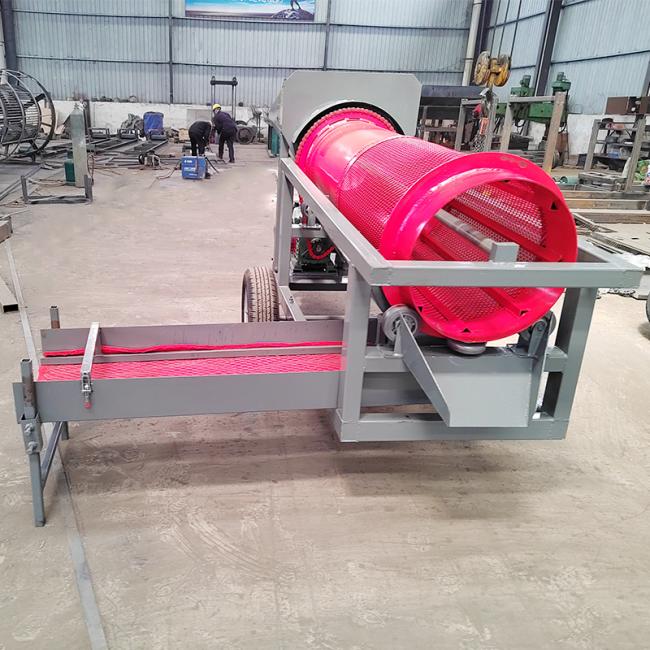

Heavy Duty Mobile Rock Gold Mining Rotary Gold Sieving Machine Gold Trommel Screen
Mobile trommel screen is designed for alluvial/placer gold ore processing, it's consist of a half covered trommel screen, one diesel engine/ electric motor, water pump& water pipes, and other facilities such as the feeding hoper and the mobile system. This mobile trommel machine normally works together with sluice box , gold centrifugal concentrator and shaking table to form a complete ore concentration plant.
Structure and Principle
Mobile gold trommel screens come in a wide range of sizes and capacities, Mining Machinery Trommel Screens are a mechanical screening machine used to separate materials. A trommel screen consists of a cylindrical drum, usually elevated at an angle at the feed end, a motor, and a reduction gear. When the material flows along the inclined rotating drum, the material jumps and rolls, and the small-sized material smaller than the sieve hole passes through the sieve hole, while the oversized material flows out from the other end of the sieve cylinder.
The mobile gold trommel is a kind of gold equipment which can be moved on land. It has the characteristics of compact structure,strong integrity, light weight, large handling capacity, simple operation, reliable operation, easy maintenance and convenient operation.
Product Name | Gold Trommel Screen | ||||||||
Model | GMTS0519 | GMTS1020 | GMTS1225 | GMTS1548 | GMTS1848 | ||||
Capacity (t/h) | 5-10 | 10-30 | 30-50 | 80-150 | 100-200 | ||||
Power(kw) | 1.5 | 4 | 5.5 | 11 | 15 | ||||
Diameter(mm) | 500 | 1000 | 1200 | 1500 | 1800 | ||||
Length(mm) | 1910 | 2000 | 2500 | 4800 | 4800 | ||||
Application
Production Site
Packing & Delivery
