Mobile Sawdust Firewood Wood Chips Sieve for Fertilizer Biomass Woodchip Screening
Price:
$4,100.00 - $28,750.00/sets
MOQ:
1 unit
Delivery Time:
Negotiable
Brand:
Sinolion
Product Description
Mobile sawdust firewood wood chips sieve for fertilizer biomass woodchip screening
Product Description
Wood chip screen is ideal for screening wood chips compost, food waste, glass, wood mulch, organics, shredded plastic, topsoil, wood waste, ssphalt shingles, bark, MSW and compost materials for use as landscaping and soil amendment products.
Sinolion offers a wide range of sizes and capacities, custom built one at a time and tailored to the needs of individual customers. Built for heavy duty applications they’re designed to provide years of trouble-free separation. Sinolion trommel Screens provide precise classification of a wide range of material, with multiple classifications available from one unit.
Wood chips screen working principle:

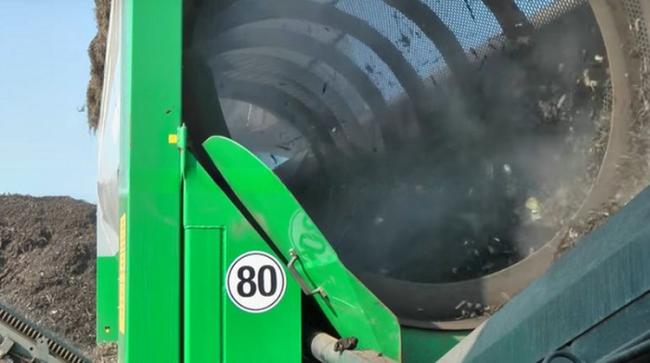

Wood chips screen consists of motor, decelerator, rotordrive, chassis, seal cap, inlet and outlet. Material feeds into the drum, is lifted up by the rotation and aerated as it falls back down. This action is repeated with each revolution along the length of the drum. The finer material passes through the screen openings while the larger material tumbles towards its eventual exit at the rear of the drum.
Wood chips screen applicable industry:
1) Quarry: suitable for screening and classifying gravel, clay, mountain meal, sand, etc.
2) Coal Industry: suitable for screening and classifying lump coal, coal dust, coal washing, etc.
3) Chemical, Mineral-selecting Industry: suitable for grading and classifying lump, powder substance, etc.
4) Metallurgy, construction and other industries
5) Woodchips, saw dust
6) Garbage recyle, Municipal Solid Waste
technical parameters
| Model | Trommel diameter | Trommel length | Capacity | Weight | Dimensions |
| MTS0818 | 800 | 1800 | ≤15 | 650 | 3.15*1.1*1.65 |
| MTS1022 | 1000 | 2200 | ≤30 | 2750 | 4.3*1.9*2.45 |
| MTS1230 | 1200 | 3000 | ≤60 | 3210 | 5.4*2.1*2.7 |
| MTS1550 | 1500 | 5000 | ≤90 | 7900 | 9.4*2.2*2.9 |
