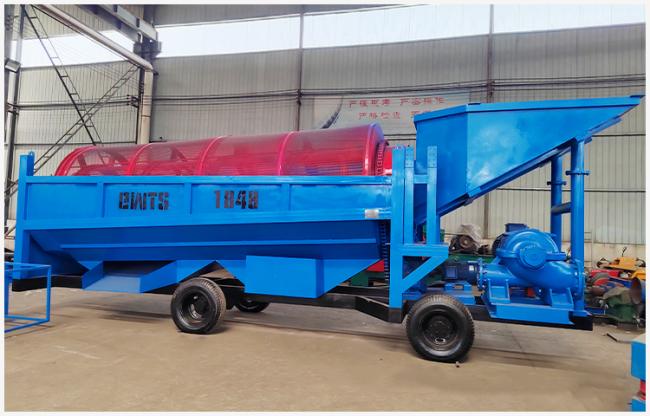

High Capacity Mobile Gold Mine Equipment Easy to Operate Gold Washiner Plant Machine

Price Negotiable
Price: $4,080.00 - $17,900.00/sets
MOQ: 1 unit
Delivery Time: Negotiable
Brand: Sinolion
Product Description
Hot Sales Mobile Gold Mine Equipment Gold Washiner Plant Machine

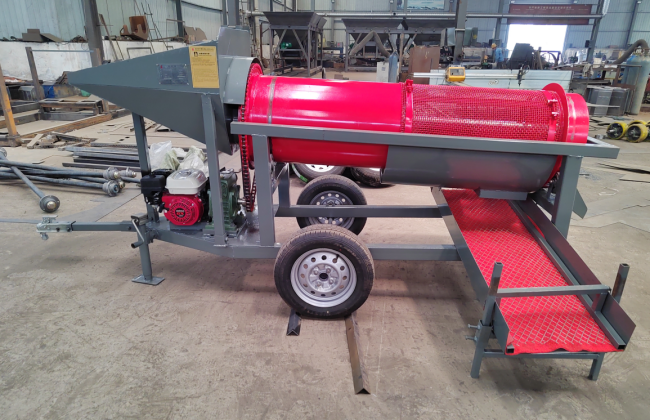

The trommel screen, also known as the rotary screen, is a mechanical screening machine for separating mineral ore materials, and is mainly used in the screening industry of gold beneficiation plants. The trommel screen controls the beneficiation according to the particle size, and the separation accuracy is high.
Gelin Provide different specifications trommel screen with Stationary and Mobile Type;
Sieve size, Layer quantity, Power type, Wheel type... can be customization as required.
Features
1.Customization available:The length diameter of the drum, screen mesh, mesh layer, portable or stationary etc can be customized.
2.Large capacity range from 5t/h to 200t/h;.
3.Easy move around,operation,and maintenance;
4.Low investment,long service life.

Structure and Principle

The cylinder of the drum screen is generally divided into several sections, depending on the specific circumstances, the screen holes from small to large arrangements, each section on the same size of the screen hole. The trommel screen mainly comprises a motor, a reducer, a roller device, a machine frame, a sealing cover and an inlet and outlet.
When feeding ore material into the drum, the material begins to rotate and tumble inside the drum before calming down
intermittently. This revolution is completed along the length of the drum. Hence, the larger ones tumble to their exit through the rear end of the drum while the finer materials pass through the screen openings and then pass to the downstream process equipment, which can be in various forms, such as gold concentrator, spiral chutes, jig machines, Sluice box with carpet etc.Separation of different materials is done efficiently.

Product Name
Gold Trommel Screen
Model
GMTS0519
GMTS1020
GMTS1225
GMTS1548
GMTS1848
Capacity (t/h)
5-10
10-30
30-50
80-150
100-200
Power(kw)
1.5
4
5.5
11
15
Diameter(mm)
500
1000
1200
1500
1800
Length(mm)
1910
2000
2500
4800
4800
