* ladder
* operating platform
* feed hopper
* generator
* reductor
* chain
* chain
* distribution Box
* drum trommel
* sluice box
* double screening mesh
* water hose
* little spray pipe
Gold Washing Mineral Separator Complete Sets Plant for Energy Mining 0-350 Tons per Hour
Price:
$24,000.00/sets >=1 sets
MOQ:
1 unit
Delivery Time:
Negotiable
Brand:
Sinolion
Product Description
Product Description
All the trommel screeners we have | ||||||||||
model | GMTS0519 | GMTS1020 | GMTS1225 | GMTS1548 | GMTS1848 | |||||
Capacity (TONS/HOUR) | 0-10 | 10-30 | 30-80 | 80-150 | 150-250 | |||||
Power (KW) | 1.5 | 4 | 5.5 | 11 | 15 | |||||
Drum Diameter (MM) | 500 | 1000 | 1200 | 1500 | 1800 | |||||
Drum Length (MM) | 1900 | 2000 | 2500 | 4800 | 4800 | |||||
Pole of mesh (MM) | 5-8 | 5-8 | 5-8 | 5-8 | 5-8 | |||||
Gold washing mobile trommel screens
1、Our products can be used to screen riversand, alluvial gold, rock ore and so on for gold collecting.
2、Our products remove impurities by gravity and washing push, the screened materials is out into the sluice box, and the other larger material is out by the tail.
3、 Our products are equipped with motor, generator, diesel generator and gasoline generator for customers to use without electricity.
4、 Our products can be equipped with water pump, centrifuge, sluice box, shaking table, gold amalgamator, and so on.
5、 Our factory provide one-stop service for the whole gold washing equipment.
6、Our factory hold our own instellectual property rights and invention patents.
7、Our factory provide 24*7 service and after salses services.
Product Details
* grille
* towing hook
* engine
* reductor
* chain
* sluice box
* drum screen
* water pipe
Related Products
Our complete sets for gold washing
***Each products in the producing line and the number of the products can be selected according to your output, raw materials and budget.
***The products in the producing line are driven by motor, diesel generator or gasoline generator at the same time.
***The clean water centrifugal pump can be used for sluice box , trommel screen and centrifugal concentrator. The slurry pump can be used for shaking table. The submersible sewage pump can be used for trommel screener, and centrifugal concentrator. They are optional for choose according to actual site.
***Different machine in the producing line can be connected with sluice box, or conveyor belt according to actual site.
***We can guide you how to select the machine economically and practically.
What can you see in the picture ?
work platform : The operator stands on it to check the working situation of the machine.
feed hopper : The raw material are put into feed hopper.
trommel screen : Our trommel screen can meet the requirements of capacity of 10-250 tons per hour.
diesel generators : It can be used for the whole sets to drive.
sluice : It is covered by sluice grass, selected by handmade and washed during and after usage.
vibrating sluice : It screens materials more effectively
slurry pump : It is used together with the shaking table or other machine.
shaking table : It sieves materials through vibration and corresponding angle.
centrifugal concentrator model | Outlet diameter |
STLB30 | 48 mm |
STLB60 | 76 mm |
STLB80 | 89 mm |
STLB100 | 108 mm |
sluice box width | sluice box length | |
0.35 m | 1.5 m | |
0.5 m | 5 m | |
1 m | 6 m | |
as your request | ||
shaking bed surface | material |
4520×1850 | fiber glass |
3000×1620 | fiber glass |
2100×1050 | fiber glass |
1100*500 | fiber glass |
1100*500 | aluminium alloy |
model | power |
diesel generator | 15 KW |
diesel generator | 30 KW |
diesel generator | 50 KW |
diesel generator | 75 KW |
diesel generator | 100 KW |
name | model | |||
submersible pump | 50WQ | 80WQ | ||
clean water pump | IS100-80-125A | IS100-65-200 | ||
slurry pump | 3/2-AH | 8/6E-AH | ||
as your actually situation | ||||
model available | ||

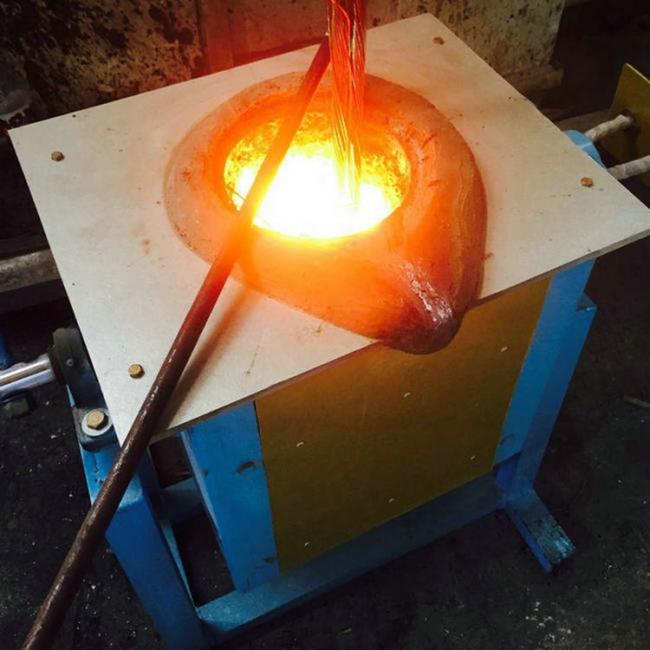

Furnace GP | 15-25 | |
Furnace ZP | 15-160 | |
model available | ||
Gold amalgamator | VAM-50l/100L | |
Amalgam retort | D100/D200 | |

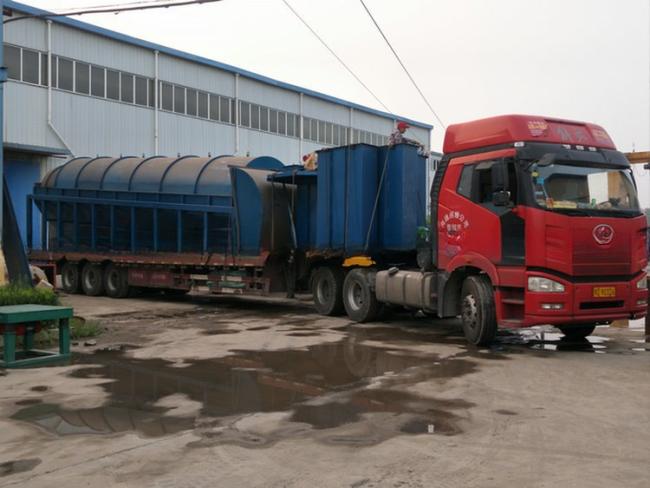

Packing & Delivery
Case
Company Profile
FAQ
***Do you support warranty ?
Our factory support the main components of 1 year warranty.
***Do you provide consumable parts ?
Our factory can provide some consumable parts , such as pull tray,spark plugs,V-belt and so on as your request.
***What kind of trommel screeners you have ?
We have GMTS 0519 with capacity 0-10 tons/hour , GMTS 1020 with capacity 10-30 tons/hour , GMTS 1225 with capacity 30-80 tons/ hour , GMTS 1548 with capacity 80-150 tons/hour, GMTS 1848 with capacity 150-250 tons/hour.
***Can you provide the complete sets of alluvial goldsand washing ?
It is our professional products in gold washing separator including shaking tables, furnace, centrifuge, sluice box, water pump,amalgamator and so on. We provide one-stop service.
