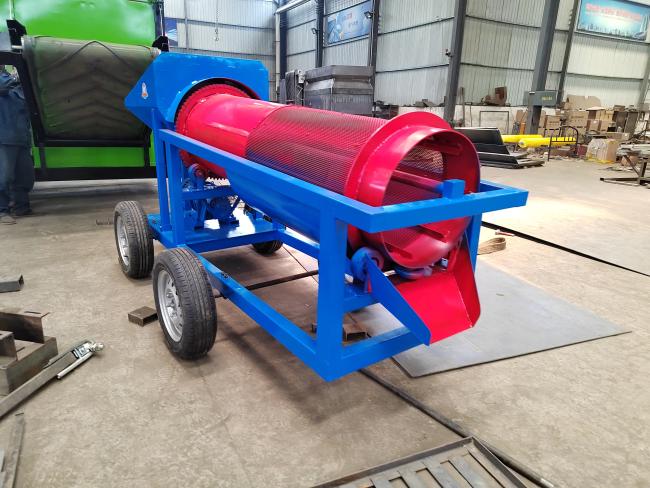

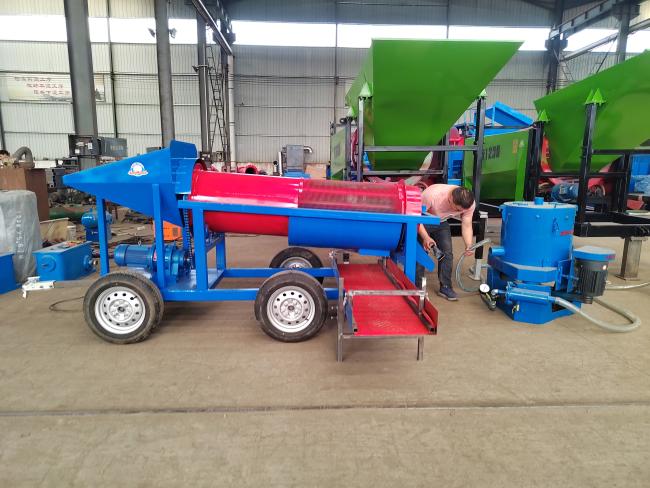

Maximum Size 100mm Mobile Gold Mining Rotary Drum Screen with Gasoline or Diesel Engine
Price:
$4,080.00/sets 1-2 sets
MOQ:
1 unit
Delivery Time:
Negotiable
Brand:
Sinolion
Product Description
Mobile Gold Mining Equipment Is Represented By Trommel Screen, Which Is Also Widely Used In Separation Technology. Small Trommel Screen is More Flexible And Convenient Than Large-scale Mobile Screen.
The Main Roller Screen Shall Have Motor, Reducer, Roller Device, Frame, Seal Cover, Inlet And Outlet Composition. The Roller Device Is Tilted On The Rack And Passed Through The Drum Device. The Axles Are Connected Together To Drive The Drum Device To Rotate Around Its Axis.
It has the following characteristics:
1. Smooth operation and low noise;
2. Simple structure, maintenance Convenient;
3. The screen holes are not easy to block;
4. The screening efficiency is high;
5. The screen has a long service life and is easy to replace.
Operation Principle
The Alluvial Gold Trommel Screen Machine Uses The Principle Of Gravity Separation, The Original Ore Through A Layer Of Screening And Classification Under The Impact Of Water Into The Agitation Sluice Chute For Next Step Coarse Separation, If There Is Capillary Gold In The Original Mine, Adding The Agitation Chute Fixed Chute In The Tail To Avoid Tails Running. If There Is Clay Mud In Original Ore, We Will Add Stirring In Front Of The Screen And Flushing Device In Screen Drum, So That The Unfavorable Factors Caused By High Mud Content Can Be Solved Well, And Can Be Adjusted According To Ore Body Condition And Site.
Operation Process
1. Input Of Raw Materials Raw Materials Inputted Through The Entrance Of The Hopper Will Be Pushed Into The Trommel Screen By The Strong Water Pressure Of The Shower Equipped In The Hopper.
2. Selection And Cleaning Of Raw Materials Raw Materials Of TheTrommel Screen Will Be Cleaned And Selected By The Rotation Of Trommel Screen And By Watering Of The Shower Inside, Run Into The Gold Dust Separate Panel.
3. Collecting Of Gold Dust Separated Soil And Sands With Lighter Specific Gravity Will Flow Away But Gold Dusts With Greater Specific Gravity Will Be Staying In The Gathering Mat To Be Collected.
Product Name | All the Models of Gold Trommel Screen | ||||||||
Model | GMTS0519 | GMTS1020 | GMTS1225 | GMTS1548 | GMTS1848 | ||||
Capacity (t/h) | 5-10 | 10-30 | 30-50 | 80-150 | 100-200 | ||||
Power(kw) | 1.5 | 4 | 5.5 | 11 | 15 | ||||
Diameter(mm) | 500 | 1000 | 1200 | 1500 | 1800 | ||||
Length(mm) | 1910 | 2000 | 2500 | 4800 | 4800 | ||||
