Gray Heavy Duty Mobile Trommel Screen for Circular Dirt Separation and Recycling Needs
Price:
$4,100.00 - $28,750.00/sets
MOQ:
1 unit
Delivery Time:
Negotiable
Brand:
Sinolion
Product Description

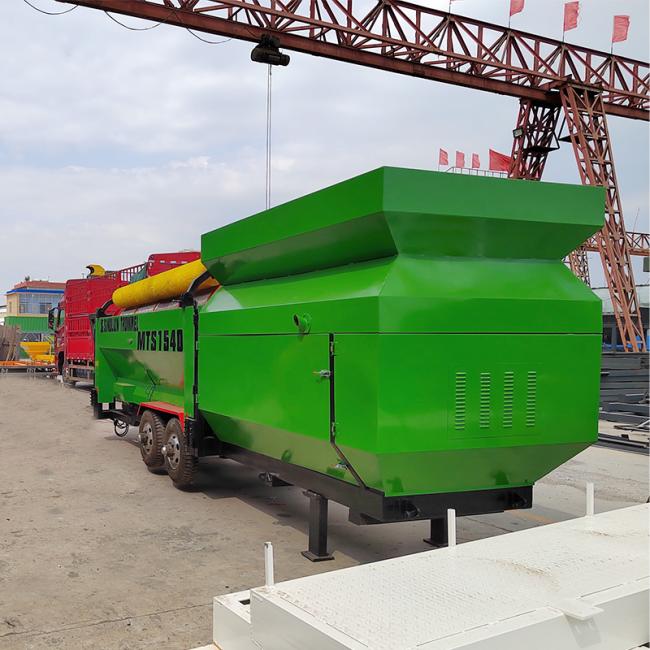

Heavy Duty Mobile Trommel Screen Dirt Screener Equipment Manufacturer
The mobile trommel screen can screen cohesive soil, remove impurities such as stones, broken stones, rotten leaves and so on in the soil (including cohesive soil), and classify and screen the soil (including cohesive soil). Fine soil with smaller particle size. In addition to screening fine soil, the mobile drum screen can screen compost, topsoil, cattle and sheep manure and other materials.
Structure and Principle
The composition of the drum screen is composed of several structures such as feeding hopper, motor, reducer, screen, discharge port, bracket, etc. The materials are first fed into the drum screen by an excavator or manually, and then various materials are fed into the drum screen. After entering the trommel sieve, it is sieved out of different sieve mesh apertures, and the large material is discharged from the tail of the trommel sieve. The equipment is optionally equipped with a cleaning brush, which can clean the clay on the screen during sieving to prevent materials from clogging the sieve holes.
Model | Trommeldiameter (mm) | Trommel length (mm) | Capacity (m3/h) | motor power （KW） | Weight (Kg) | Dimensions (L*W*H) |
MTS0818 | 800 | 1800 | ≤15 | 2.4 | 650 | 3.15*1.1*1.65 |
MTS1022 | 1000 | 2200 | ≤30 | 8.2 | 2750 | 4.3*1.9*2.45 |
MTS1230 | 1200 | 3000 | ≤60 | 10.6 | 3210 | 5.4*2.1*2.7 |
MTS1550 | 1500 | 5000 | ≤90 | 20 | 7900 | 9.4*2.2*2.9 |
Application
