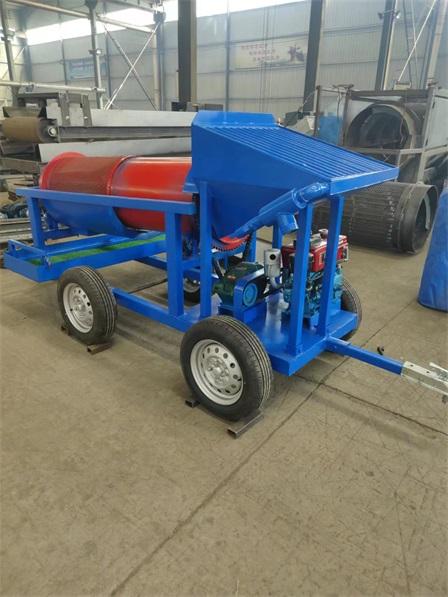

98% Portable River Alluvial Gold and Diamond Trommel Screen Washing Plant Machine

Price Negotiable
Price: $4,080.00/sets >=1 sets
MOQ: 1 unit
Delivery Time: Negotiable
Brand: Sinolion machinery
Product Description


Working principle

1 Raw material inputted through the entrance of the hopper by strong water pressure and artificial input.

2 Raw material of the trommel screen will be cleaned and selected by the rotation of trommel screen and by watering of the shower inside, run into the gold sudt separater panel.

3 Soil and sands with lighter specific gravity will flow away but gold dusts with greater specific gravity will be staying in the gathering mat to be collected.


Details of Product


Feed hopper

Hopper size : 800*790 mm
Steel bar diameter : 20 mm
Material : Galvanized seamless
Bar spacing : 50 mm
Hopper volume : 0.5 m3


Rotary drum

The engine and reducer use chains to drive the drum to rotate.

Diameter of rotary drum : 500 mm
Length of rotary drum : 1900 mm
Mesh material : woven
Pole diameter of mesh : less than 5 mm





Sluice box
Width : 350 mm
Length : 1500 mm
Color : red
Frame: include
Angle : adjustable 2-8 °



Quality Guarantee Rapid Rotary Type Wood Chips Machine Of Factory Prices Firewood Trommel Screen
Comany Information
Certifications

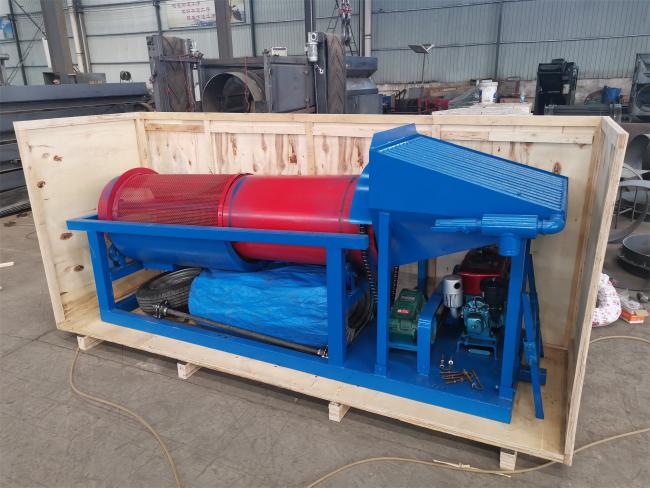

Packing & Delivery
