Coal-based Sawdust and Wood Chips Biomass Drying Equipment with accuracy Results

Price Negotiable
Price: $120,000.00/sets
MOQ: 1 unit
Delivery Time: Negotiable
Brand: Sinolion mesh belt dryer
Product Description
Production description

Professional Sawdust Wood Chips Biomass Drying Machinery with Cheapest Price

The riquette mesh belt dryer also named chain plate dryer, it is a kind of drying machine use steel net belt as transport carrier and dry material continuously. Because transmission belt is mesh, so this dryer can dry regular or irregular shape various briquette (for examples: coal, briquette of all kinds of mineral, food and vegetables). This briquette mesh belt dryer can be used with other supporting machine and also can be used alone.  Especially it is the ideal dry equipment of various kinds of materials briquette production line.

Features of briquette dryer mesh belt dryer machine

1. Small space to take. 2. Low investment. 3. High efficiency.
4. Large output and high evaporation strength
5. Standardized production, the number of segments can be increased according to output and work shop
Technical parameters
Model
DW-1.2-8
DW-1.2-10
DW-1.6-8
DW-1.6-10
DW-2-8
DW-2-10
DW-2-20
Quantity of unit
4
5
4
5
4
5
10
Width of belt(m)
1.2
1.6
2
Length of dry section(m)
8
10
8
10
8
10
20
Operation temperature(oC)
50-140
Steam pressure(MPa)
0.2-0.8
Steam consumption (kg/h)
120-300
150-375
150-400
180-500
180-500
225-600
450-1200
Drying time (h)
0.2-1.2
1.25-1.5
0.2-1.2
0.25-1.5
0.2-1.2
0.25-1.5
0.5-3
Drying capacity(kg water/h)
60-160
80-200
85-220
100-260
100-260
120-300
240-600
Total power (kw)
11.4
13.6
14.6
18.7
19.7
24.5
51

Overall size
L(m)
9.56
11.56
9.56
11.56
9.56
11.56
21.56
W(m)
1.49
1.49
1.9
1.9
2.32
2.32
2.32
H(m)
2.3
2.3
2.4
2.4
2.5
2.5
2.5

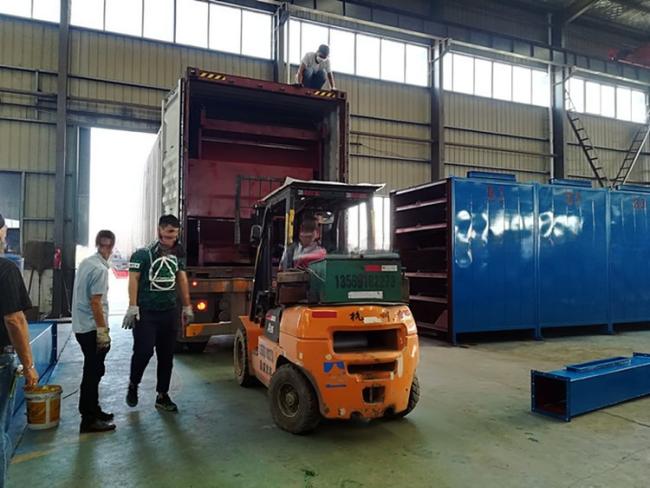

Packaging & Shipping
