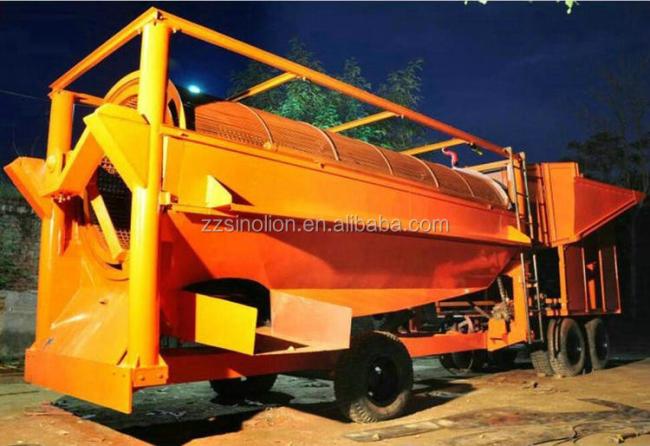

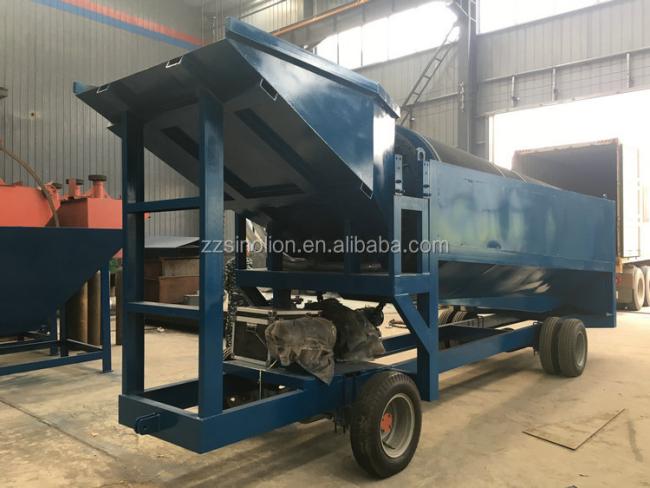

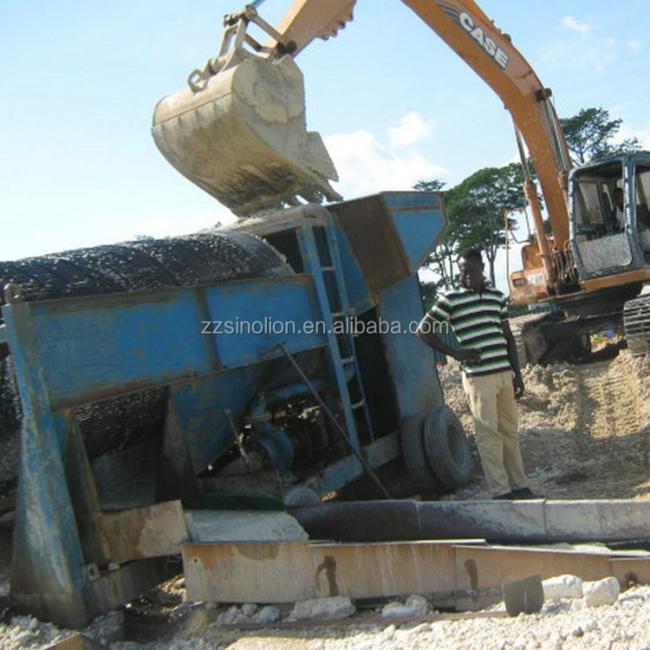

MSW Gold Trommel Screener Machine for Large Capacity Aluvial Sand Gold Screening
Description of large capacity gold trommel screener machine
The gold trommel screener has been more and more popular and widely applied in the placer/alluvial gold washing process, especially the river sand gold process. In addition, it is also very popular & effective in sand washing and screening as well as top soil screening.
Application of large capacity gold trommel screener equipment
2. Separation from sand and gravel in the sandstone field.
3. The coal industry is used for the separation of lump coal from pulverized coal and coal washing (part of coal washing machinery).
4. Chemical industry, the beneficiation industry is used for grading and separating powdery materials.
Main feature of gold trommel screener equipment
1. The mesh hole is not easy to block;
2. Smooth operation and low noise;
3. Simple structure and convenient maintenance;
4, the screening cylinder of gold trommel sieve can be closed, easy to close the dust collection;
5. The reliability of the whole machine is high, and the one-time investment is less;
6, the use of special screen, high screening efficiency, long service life.
Model | Capacity (t/h) | Power (kw) | Diameter (mm) | Length (mm) | Discharge (mm) | Input (mm) | Dimension (mm) |
YGTS1020 | 20-30 | 4.0 | 1000 | 2000 | 0-100 | ≤300 | 3390×1400×2140 |
YGTS1225 | 30-50 | 5.5 | 1200 | 2500 | 0-100 | ≤300 | 4146×1600×2680 |
YGTS1545 | 50-120 | 11 | 1500 | 4500 | 0-100 | ≤400 | 8160×2300×3080 |
YGTS1548 | 80-150 | 15 | 1800 | 4800 | 0-100 | ≤400 | 8460×2300×2500 |
YGTS1848 | 100-200 | 15 | 1800 | 4800 | 0-100 | ≤400 | 8460×2300×2700 |
YGTS2060 | 300-400 | 30 | 2000 | 6000 | 0-100 | ≤400 | 9680×2300×3420 |
Design and produce trommel screener based on customer special requirement
