Blue Gold Separation Trommel for Multiple Material Output and Double Screen Efficiency
Price:
$7,750.00/sets 1-1 sets
MOQ:
1 unit
Delivery Time:
Negotiable
Brand:
sinolion
Product Description
Product Description

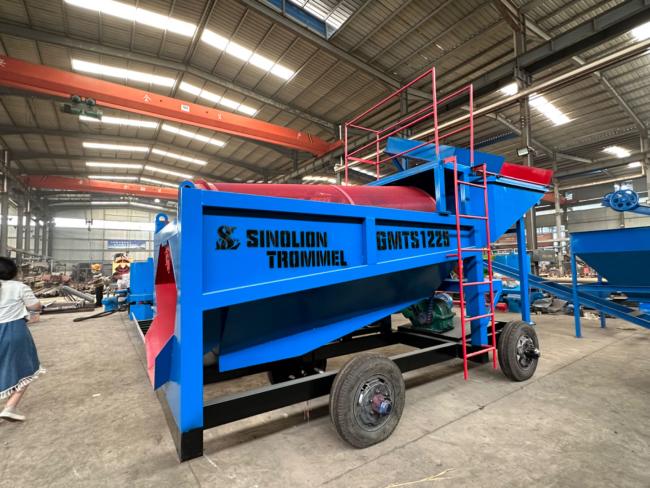

Our equipment is called gold mobile trommel screen, which is used to collect gold from placer gold、alluvial gold and rock gold .Its advantages are flexible movement, simple operation,convenient cleaning， high gold recovery capacity， and obvious gold selection effect, and the equipment can work in different construction and operation areas, it can be moved with a trailer hitch ,and the operation cost is low.
Working Principle
1.Raw material feeding
The raw material input through the hopper inlet is pushed into the screen drum by the powerful water pressure of the nozzle loaded in the hopper.
2. Washing
The screen barrel has a built-in galvanized seamless water spray pipe (diameter 42mm), and the raw materials are washed by water and selected through the gold panning tank through the rotation of the trommel screen.
3. Fine gold collection
Light dirt and sand are washed away by the water, and heavier gold will gather in the gold blanket.
The raw material input through the hopper inlet is pushed into the screen drum by the powerful water pressure of the nozzle loaded in the hopper.
2. Washing
The screen barrel has a built-in galvanized seamless water spray pipe (diameter 42mm), and the raw materials are washed by water and selected through the gold panning tank through the rotation of the trommel screen.
3. Fine gold collection
Light dirt and sand are washed away by the water, and heavier gold will gather in the gold blanket.

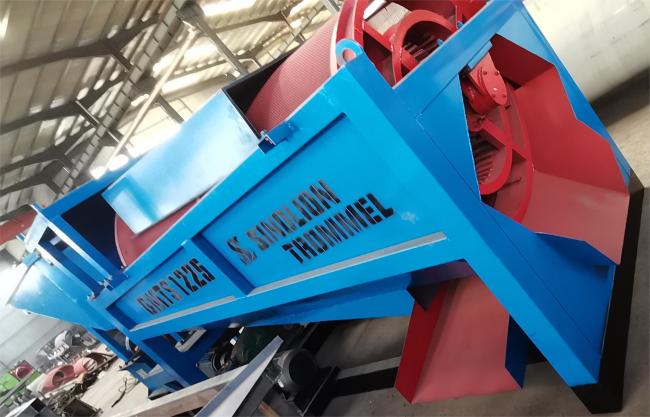

The drum part is made of round steel and manganese wire. It has three outlets, which can screen materials of three specifications, and the screen can be designed with two apertures, which improves the screening efficiency of materials and saves working time. , the maximum size of the product under the screen is 100 mm, the middle is 10-50 mm, and the thinnest is up to 3 mm.
Technical Parameters
Model | Capacity (t/h) | Power (kw) | Diameter (mm) | Length(mm) | Discharge(mm) | Input(mm) | Dimension (mm) |
GMTS0519 | 5—10 | 1.5 | 500 | 1910 | ≤300 | 0—100 | 3000*1000*1800 |
GMTS1020 | 10—30 | 4 | 1000 | 2000 | ≤300 | 0—100 | 3200*1400*1900 |
GMTS1225 | 30—50 | 5.5 | 1200 | 2500 | ≤300 | 0—100 | 4300*1650*2220 |
GMTS1548 | 80—150 | 11 | 1500 | 4800 | ≤300 | 0—100 | 8000*2200*3600 |
GMTS1848 | 100—200 | 15 | 1800 | 4800 | ≤300 | 0—100 | 8000*2200*4000 |

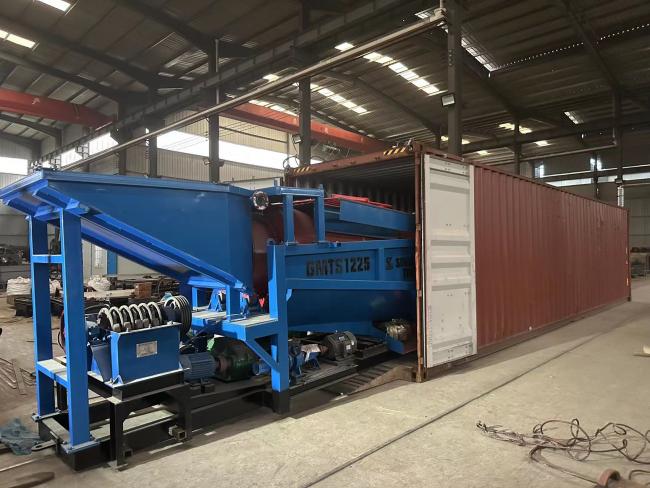

All products will be processed to be rustproof and moisture proof before delivery. 20GP container or 40GP container Equipment is packed with plastic wrap or steel case, depends on machine weight. Motor is packed with steel case or wooden case. Control panel is packed with wooden case. Loading container in factory.
Company Profile
We have rich experience in the production of mineral processing equipment.
We have professional engineers who can customize suitable equipment for your situation, welcome to consult!
