Mobile Gold Mining Trommel Screen 5-10 Tons Alluvial Plant with Customization Options
Price:
$4,050.00/sets 1-2 sets
MOQ:
1 unit
Delivery Time:
Negotiable
Brand:
sinolion
Product Description
Product Description

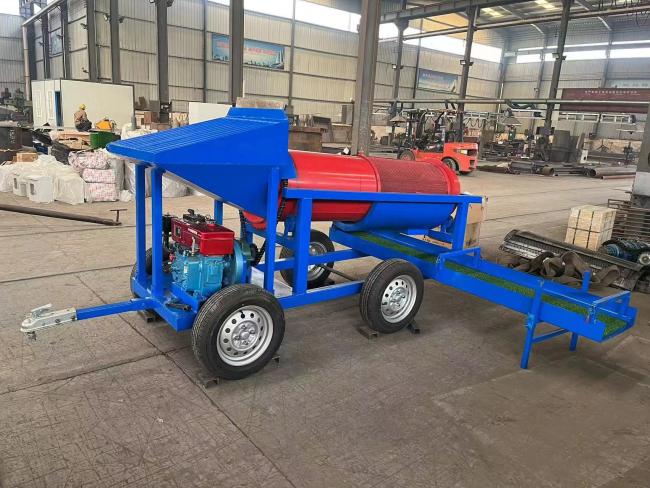

Our production is called a mobile gold trommel screen , also known as mobile gold car. The sieve-type gold mobile washing equipment is mainly used for sand splitting and gold selection. It is suitable for energy and mining, building materials store, manufacturing plant, construction engineering, energy and mining.
Our trommel screen has a lot of advantages ,such as: move conveniently ,well-adapted，Integrated design, operate simply, labor-saving,strongly-processing capacity, work efficiently, obvious gold-selected effect and so on.

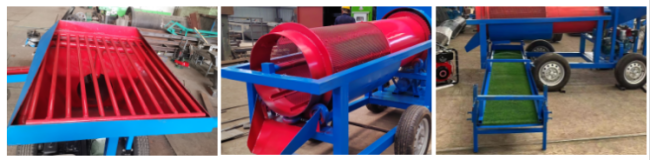

The function of grille
The grille is located above the feed hopper. It is made of round steel with a diameter of 20mm and an interval of 50mm. The grille blocks larger diameter materials from the hopper and prevents larger materials from entering the hopper and damaging the screen cylinder.
Raw materials input through the inletof the hopper will be pushed into thesieve by the strong water pressure ofthe spray head installed in the hopper ,through the rotation of the drum sievethe raw material is washed by waterand selected through the gold pan.the light soil and sand are washedaway by the water, and the heaviergold will gather in the gold pan.
The trommel screen is mainly composed of a motor, a reducer, a drum device, a frame, and a material inlet and outletThe motor is connected with the roller device through the reducer through the coupling, and drives the roller device torotate around its axis.
Technical Parameters
Model | Capacity (t/h) | Power (kw) | Diameter (mm) | Length(mm) | Discharge(mm) | Input(mm) | Dimension (mm) |
GMTS0519 | 5—10 | 1.5 | 500 | 1910 | ≤300 | 0—100 | 3000*1000*1800 |
GMTS1020 | 10—30 | 4 | 1000 | 2000 | ≤300 | 0—100 | 3200*1400*1900 |
GMTS1225 | 30—50 | 5.5 | 1200 | 2500 | ≤300 | 0—100 | 4300*1650*2220 |
GMTS1548 | 80—150 | 11 | 1500 | 4800 | ≤300 | 0—100 | 8000*2200*3600 |
GMTS1848 | 100—200 | 15 | 1800 | 4800 | ≤300 | 0—100 | 8000*2200*4000 |
Packing & Delivery

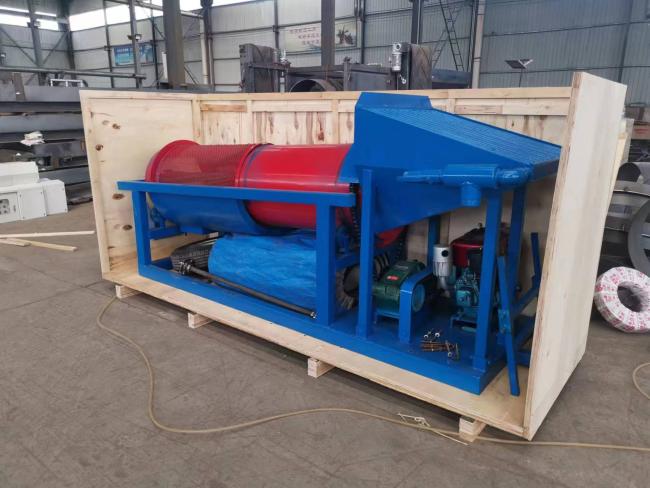

All products will be processed to be rustproof and moisture proof before delivery. 20GP container or 40GP container Equipment is packed with plastic wrap or steel case, depends on machine weight. Motor is packed with steel case or wooden case. Control panel is packed with wooden case. Loading container in factory.
