Small Capacity 10 Tons Mining Gold Trommel Screen Washing Plant with Gravity Separator
Price:
$5,310.00/sets 1-1 sets
MOQ:
1 unit
Delivery Time:
Negotiable
Brand:
Sionlion
Product Description
Product Description

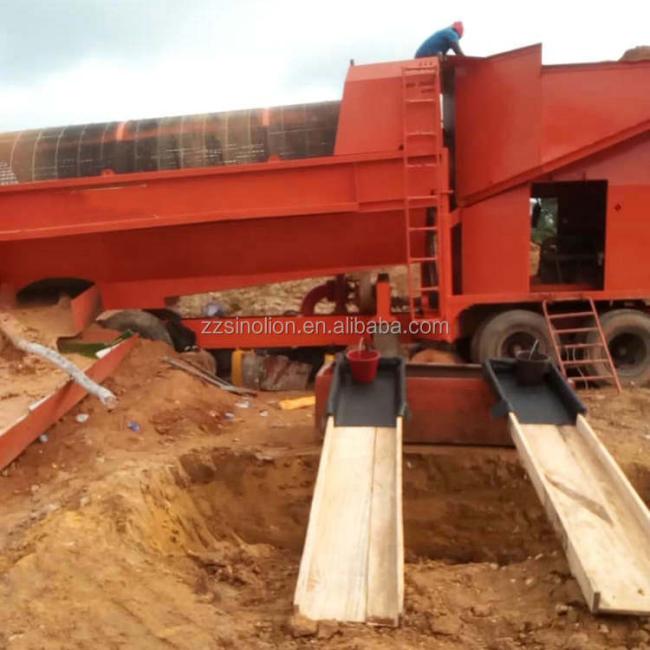

Our equipment is called gold mobile trommel screen, which is used to collect gold from placer gold、alluvial gold and rock gold . Its advantages are flexible movement, simple operation, convenient cleaning, high gold recovery capacity，and obvious gold selection effect, and the equipment can work in different construction and operation areas, it can be moved with a trailer hitch ,and the operation cost is low.

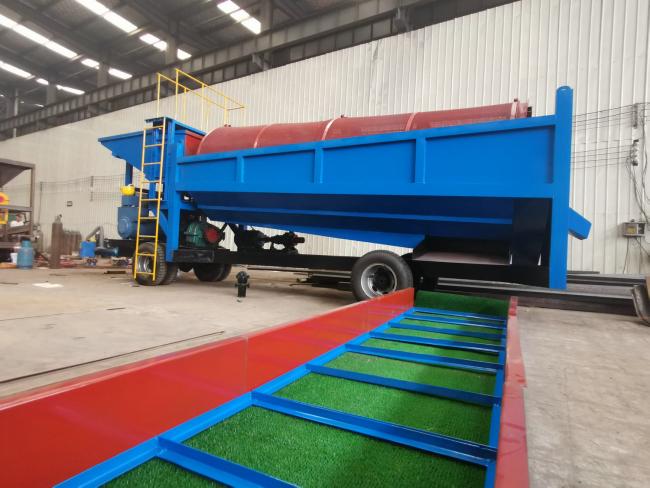

The mobile trommel gold washing plant is designed for alluvial / placer gold ore processing, it's consist a half covered trommel screen, one diesel engine or electric motor, water pump & water pipes, and with reducer, chain, leg and tire , roller so on , also has the feeding hoper and the mobile system.
Working principle
1.>Raw material feeding The raw material input through the hopper inlet is pushed into the screen drum by the powerful water pressure of the nozzle loaded in the hopper. 2> Washing The screen barrel has a built-in galvanized seamless water spray pipe (diameter 42mm), and the raw materials are washed by water and selected through the gold panning tank through the rotation of the trommel screen. 3> Fine gold collection Light dirt and sand are washed away by the water, and heavier gold will gather in the gold blanket.
Double screen
The drum part is made of round steel and manganese wire, the design of the double-layer screen improves the screening efficiency ; on the one hand, and on the other hand protects and improves the service life of the screen.
More models

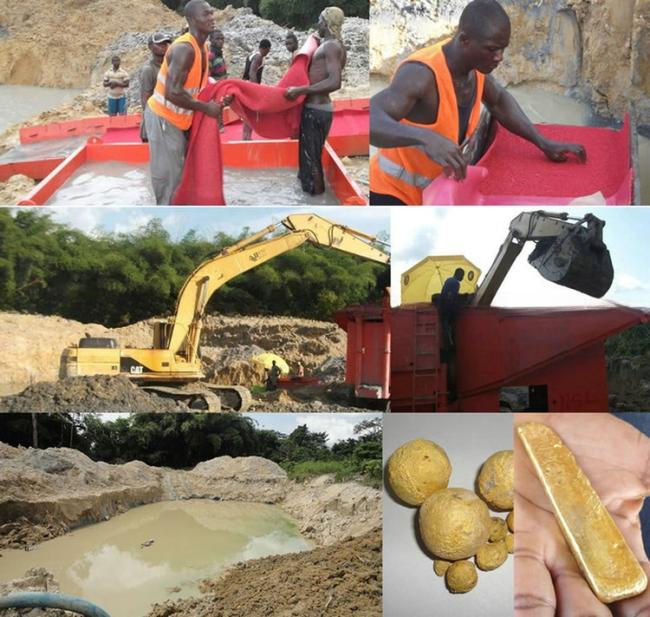

Case
Technical Parameters
Model | Capacity (t/h) | Power (kw) | Diameter (mm) | Length(mm) | Discharge(mm) | Input(mm) | Dimension (mm) |
GMTS0519 | 5—10 | 1.5 | 500 | 1910 | ≤300 | 0—100 | 3000*1000*1800 |
GMTS1020 | 10—30 | 4 | 1000 | 2000 | ≤300 | 0—100 | 3200*1400*1900 |
GMTS1225 | 30—50 | 5.5 | 1200 | 2500 | ≤300 | 0—100 | 4300*1650*2220 |
GMTS1548 | 80—150 | 11 | 1500 | 4800 | ≤300 | 0—100 | 8000*2200*3600 |
GMTS1848 | 100—200 | 15 | 1800 | 4800 | ≤300 | 0—100 | 8000*2200*4000 |
Packing & Delivery
Ways Of Packing 1. Small parts packed in the wooden cases 2.Big parts or the whole big machine is loaded in the container by the Ocean Shipping or others.
