The cylinder screen is a single-layer structure, which is used when the materials do not contain bulk materials. The advantage of the single-layer structure is that the entire cylinder is lightweight, which can reduce the weight and energy consumption of the entire equipment.
The screen adopts high manganese steel woven screen, which has high efficiency and long service life. The screen is easy to wash and will not block. It is have a breaking knife inside the trommel screen, which can break some hard stones wrapped in gold.
Small Scale 5 Tons Mini Gold Processing Plant for Alluvial Gold Gravity Separation
Price:
$4,080.00/sets
MOQ:
1 unit
Delivery Time:
Negotiable
Brand:
ZHENGZHOU Sinolion
Product Description
Product Description

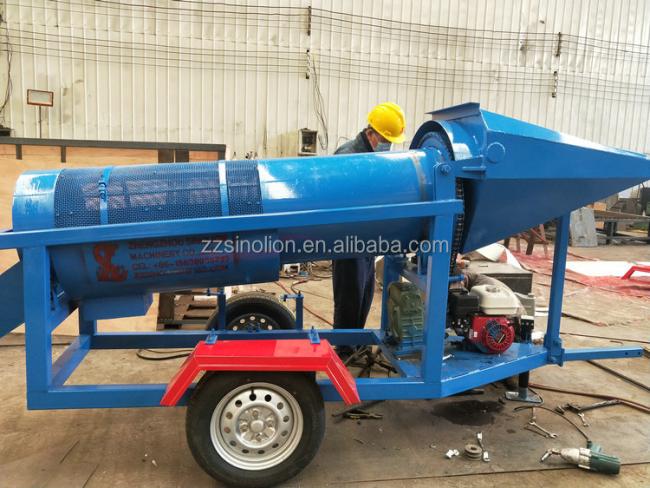

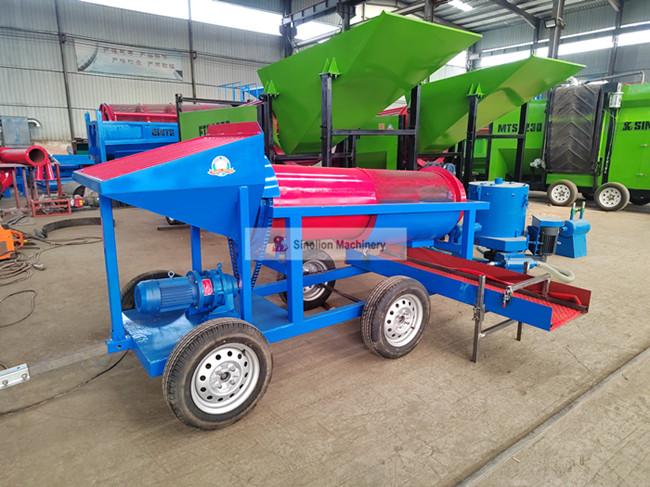

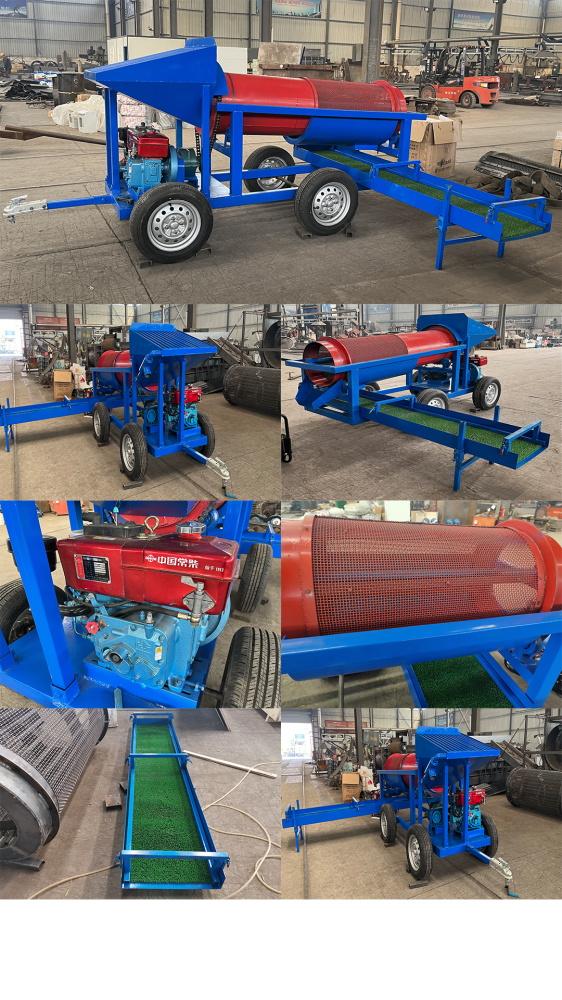

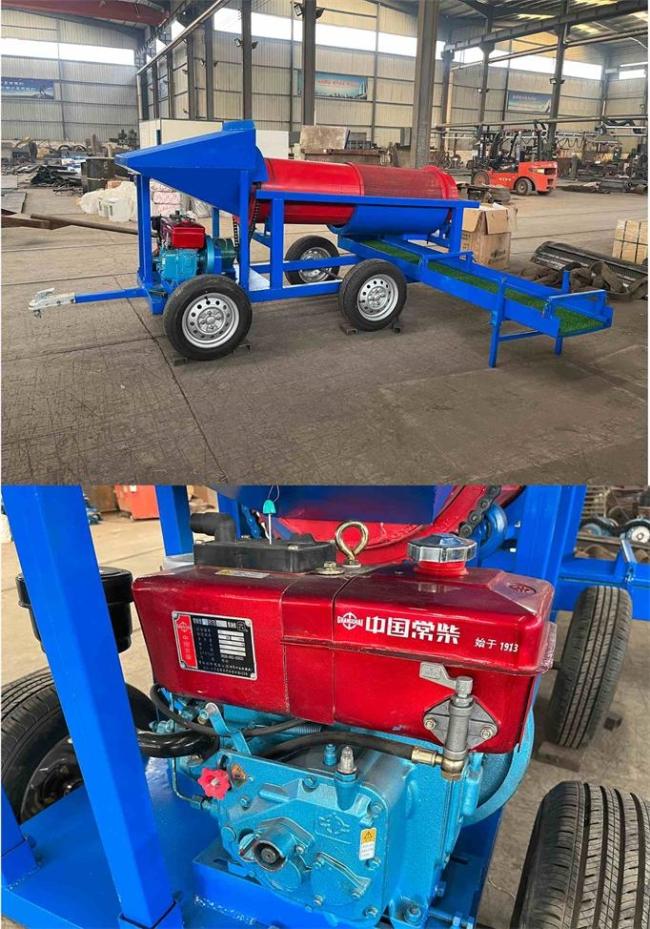

Gold Mobile Trommel Screen 0519 can process 5-10 tons of materials per hour, with a recovery rate of up to 92%. 0519 drum screen is suitable for placer gold and alluvial gold. It is a movable platform with a traction on the front side of the traction, which can be well fixed and moved on the sand. It is mianly consist of motor, drum device, frame, tries, grille, and inlet and outlet. We can also match a HONDA gasoline engine or a diesel engine.
The gold washing trommel 0519 can be washing and screening. When GMTS 0519 is running, it is powered by the motor, and the materials enters from the feed inlet. Some large pieces of materials are blocked outside the grille, and small pieces of materials enter the drum to start screening. Since the density and specific gravity of gold are different, so during the washing and screening process, heavy metals containing gold will be screened out from the discharge port.The trommel screen is equipped with a engine, which has a long service life and does not need to worry about outdoor power generation. It is economical, durable, safe and powerful.
Drum Device

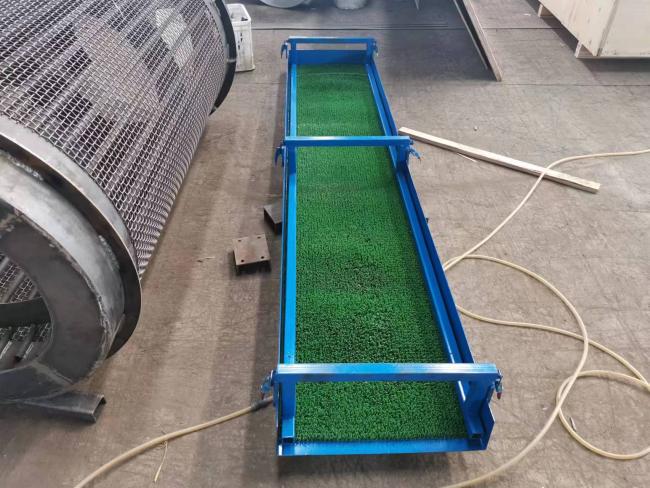

Collecting of gold dust separated Soil and sands with lighter specific gravity will flow away but gold dusts with greater specific gravity will be staying in the gathering mat to be collecting.

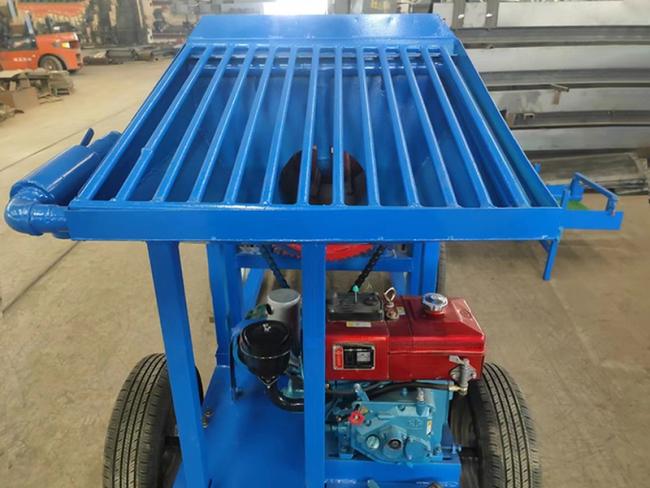

The grille can clog large pieces of materials outside, and smaller placer gold and alluvial gold enter the hopper for screening, which is beneficial to improving the efficiency of the screening hopper.
Product Details
Specification
Model | GMTS0519 |
Drum Diameter | 500mm |
Drum Length | 1910mm |
Capacity | 5-10 tons/hour |
Power | 1.5kw |
Motor | Diesel engine HONDA gasoline engine Electric motor |
sluice box | 1000*6000mm Angle adjustable 2-8° |
Grizzly | Steel bard diameter 20mm Bar spacing 50mm Input hopper: 0.5m³ |
Weight | 600kg |
