Gold Refining and Extraction Machine Equipment for Scrap Mining 2500*2000*2400mm
Price:
$11,945.00/sets
MOQ:
1 unit
Delivery Time:
Negotiable
Brand:
ZHENGZHOU Sinolion
Product Description
Product Description

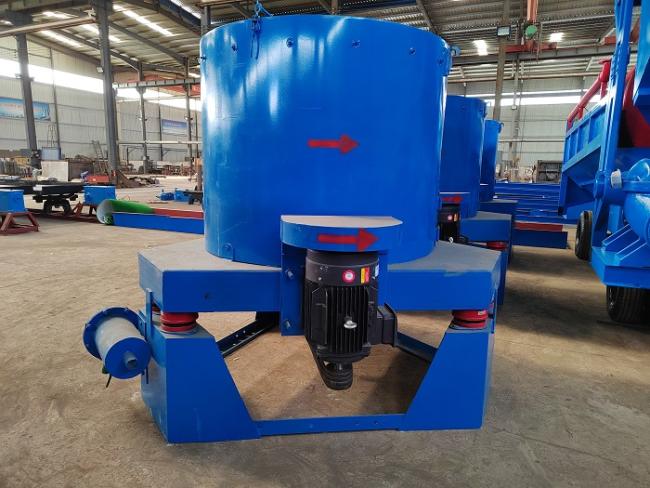

The centrifugal concentrator is a gravity separation equipment mainly used in gold mines. The centrifuge machine is a centrifugal mining equipment suitable for recovering placer gold, rock gold and alluvial gold
in polymetallic ores. It is the most ideal choice for gold laundering. The centrifugal concentrator equipment uses centrifugal force to expand the gravity of mineral particles to separate heavy particles from light particles.
in polymetallic ores. It is the most ideal choice for gold laundering. The centrifugal concentrator equipment uses centrifugal force to expand the gravity of mineral particles to separate heavy particles from light particles.
Model of STLB100 Centrifugal Machine Working Principle
The centrifuge is driven by a motor to rotate at high speed and is surrounded by pressurized backwash water. The material is injected from the upper end of the enrichment cone. There are grooves formed by rows of ribs inside the enrichment cone. The centrifugal force generated by the rotation of the vertebral body throws the minerals toward the grooves, but due to the effect of the recoil water sprayed outward in the groove, only the heavy mineral particles can overcome the resistance of the recoil water and stay in the groove to form concentrate, while the light mineral particles will be The centrifugal force is small and it is difficult to overcome the effect of the backwash water. The backwash water will flush out the groove and overflow from the upper end of the enrichment cone driven by the continuously injected water flow to become tailings.
Detail information
Case
Specification
Model | STLB100 |
Feeding Capacity(t/h) | 70-80 |
Fluidization water Required(m3/h) | 55-80 |
Slurry Water Required(m3/h) | 70-120 |
Feeding Density(%) | 0-50 |
Feeding size(mm) | 0-5 |
Concentrate weight(Kg) | 80-90 |
Power(KW) | 22 |
Weight(Kg) | 2500*2000*2400 |
Overall dimensions(mm) | 2000 |
Concentration Cleaning Up Cycle | rock gold 1-3 hours, alluvial /sand gold 2-6 hours |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Certifications
Company Profile
Sincerely welcome to send your inquiry, you can get best quotation and professional service!
