Silicone Jacket EV Charging Cable with Bare Copper Conductor and 5M Length for Fast Charging
Price:
Negotiable
MOQ:
1000m
Delivery Time:
7-15 days
Brand:
Linke
Product Description
US Super Soft Automobile Wire Charging Energy Logistics Vehicle HV Wiring Harness
High-performance wiring harness designed for electric vehicle charging systems and logistics vehicles, featuring superior flexibility and durability.
Product Specifications
Cable Configuration
2C×80mm² + 1C×25mm² + 2C×4mm² + (3C×0.75mm²)(P2) + (7C×0.75mm²)
RoHS Compliant
Conductor Details
| Item | Material | Size | O.D. (Ref.) |
|---|---|---|---|
| A: 2C×80mm² | Bared copper stranded | 2580/0.20 ±0.008mm | 12.40±0.25mm |
| B: 1C×25mm² | Bared copper stranded | 798/0.20 ±0.008mm | 7.00±0.20mm |
| C: 1C×4mm² | Bared copper stranded | 224/0.15±0.008mm + 10/1#Tinsel+1000D Kevlar | 2.70±0.15mm |
| D: (3C×0.75mm²)(P2) | Bared copper stranded | 40/0.15±0.008mm + 10/0.19mm Tinsel + 200D Kevlar | 1.40±0.10mm |
| E: (7C×0.75mm²) | Bared copper stranded | 40/0.15±0.008mm + 10/0.19mm Tinsel + 200D Kevlar | 1.40±0.10mm |
Insulation Specifications
| Material | Min. Average Thickness | Min. Thickness at Any Point | O.D. |
|---|---|---|---|
| Thermoplastic (EF2585, 85±3A) | 1.60mm | 1.34mm | 15.60±0.40mm |
Electrical Characteristics
Electrical Properties
- Rated voltage: DC 1000V
- Rated temperature: Jacket -40~90°C, Insulation -40~125°C
- Max. conductor resistance (20°C): A:0.242Ω/km, B:0.78Ω/km, C:4.95Ω/km, D&E:26Ω/km
- Insulation voltage withstand (Core A & B, 10m): AC 2.5kV/5min, leakage current ≤5mA
- Completed cable voltage withstand (Core A to A & B, 10m): AC 3.5kV/15min, leakage current ≤5mA
- Min. insulation resistance (20°C, Core A to A&B): 500MΩ.km
Physical Properties
- Tensile strength: ≥20MPa
- Elongation: ≥300%
- High temperature pressure test: ≤50%
- Heat shock test: No crack
- Compatibility test: GB/T 33594
- Flame test: GB/T 18380.12-2008
- Min. bend radius: 6×OD
- Abrasion resistance: ≥2000 times
Product Features
- Conductor: Flexible bare annealed copper wire
- Insulation: Silicone
- Available in Black, Orange, Red, or Yellow Blue jacket
- Single & double insulated options
- SQ MM sizes (European style): 4 sq mm to 240 sq mm
- AWG sizes (North American style): 0AWG-10AWG
- Wide temperature range: -60°C to 200°C
- Low viscosity appearance
Product Images

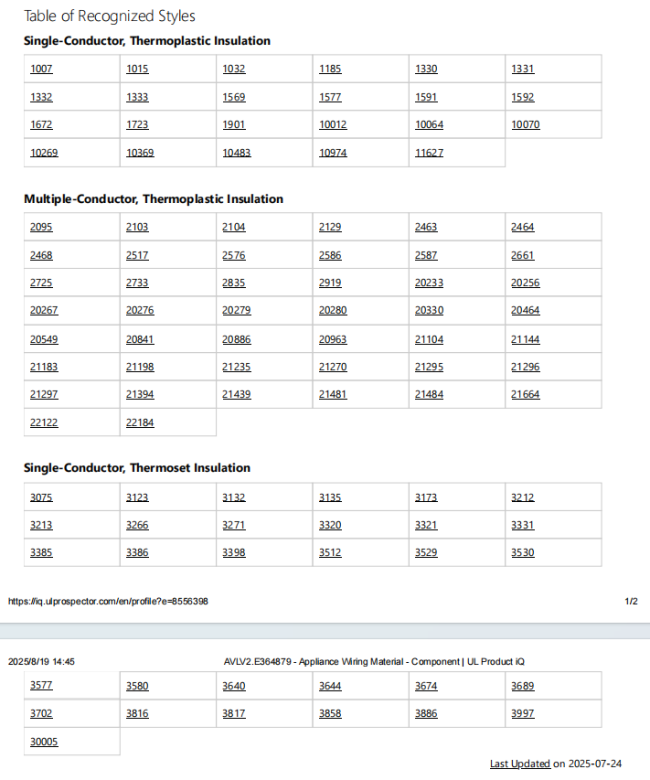

Certifications
- CNR - Appliance Wiring Material
- Extruded PVC Insulated Single, rated 105°C, 1000V, Class I, Group A, B, or AB, FT1 and/or FT2
- Extruded PVC Non-integral Jacketed Cable, rated 105°C, 1000V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2
- Extruded TPU Non-integral Jacketed Cable, rated 80°C, 300V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2
Frequently Asked Questions
Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first beginning to the last. Welcome to visit us. We'll pick you up in Shenzhen.
How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.
What's your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy. You'd better order a suitable quantity to avoid the high freight. Sea transportation is the best option.
Can I get a discount?
It depends on your quantity. We can make a discount and afford the freight. Please kindly contact us.
Does your company accept OEM production?
Yes, we can print your company name, and we even customize the quality card to promote your company.
