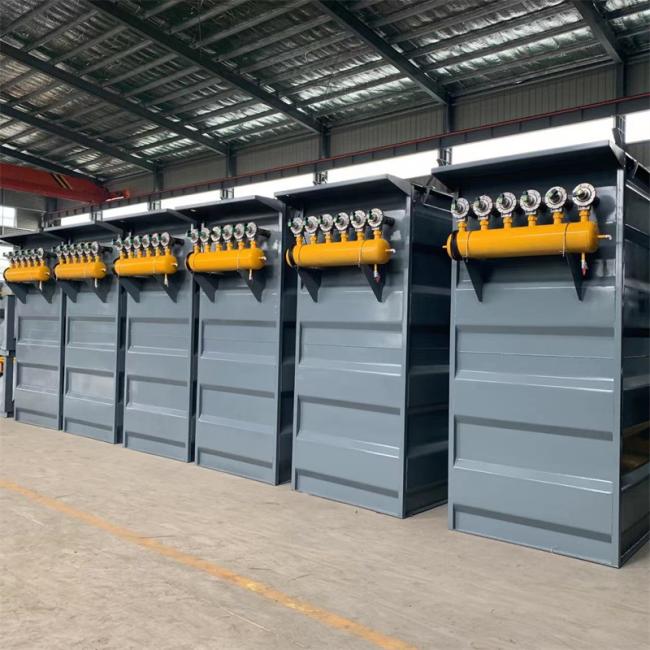

Large Mixing Plant Silo Dust Collector HMC-24B Single Pulse Bag Dust Collector

Price Negotiable
Price: $5,000 - $100,000
MOQ: 1
Delivery Time: 15-30 work days
Brand: china qiao da
Product Description

Large mixing plant silo dust collector HMC-24B single pulse bag dust collector,The

bin top dust collector is a single dust removal equipment with automatic dust removal

structure, which is widely used in cement, mineral powder, mining, metallurgy, building

materials, machinery, chemical industry, grain processing and other industrial and mining

enterprises, mainly used for filtering fine, non-fiber dry dust in the gas or recovering dry

powder in the process.

Large mixing plant silo dust collector HMC-24B single pulse bag dust collector,Have the

following characteristicsEfficient dust removal: The dust removal efficiency of the bin top

dust collector is more than 99%, which can effectively purify the dust containing gas.
Compact structure: compact structure, small footprint, easy to install and maintain.
Automatic ash cleaning: The use of pulse jet ash cleaning method, ash cleaning

effect is good, can extend the service life of the cloth bag.
Wide range of application: suitable for a variety of dust collection and treatment,

widely used in all kinds of industrial and mining enterprises.

  specification HMC-24 HMC-36 HMC-48 HMC-64 HMC-96 HMC-112
name

Treated air volume

(m3/h)

Max 1360 2720 4080 5450 6800 8160
  rated 1020 2040 3060 4080 5100 6120

Resistance

(Pa)

Max 1920 1900 1800 1920 1900 2030
  rated 1500 1750 1500 1845 1720 1820
Total filtration area(m2) 18.6 37.2 55.7 74.3 92.9 111.5
Filter bag quantity 8 16 24 32 40 48
Fan motor model Y90S-2 Y90S-2 Y112M-2 Y132S1-2 Y132S1-2 Y132S1-2
Fan motor power(KW) 1.5 2.2 4.0 5.5 5.5 7.5

Equipment weight

Kg

UF(STD) 850 1160 1400 1710 1820 1985
  UF(FM) 400 700 1000 1225 1315 1445
  UF(FB) 460 770 1500 NO NO NO
