4x2 Chinese Mini Sweeper Truck High Pressure Road Cleaning Truck 5 Tons
Price:
36500
MOQ:
1
Delivery Time:
30-35 working days
Brand:
Dongfeng
Product Description
High Pressure Cleaning Truck for Effective Cleaning of Hidden Corners of Vehicles
1. Working principle of road washing truck
Equipped with a front spray rack, By compressing water molecules into small water droplets under high pressure, fast and efficient cleaning and cleaning effects can be achieved. This type of vehicle is usually used to remove dirt, grease, mud, and other stains from the surface of road.
2. Applicable environment for road washing truck
In some industrial settings, such as factories, warehouses, etc., high-pressure cleaning vehicles can be used to remove harmful substances from the air to improve the air quality of the working environment. In addition to road cleaning, they are also widely used in building cleaning and other cleaning fields. In terms of vehicle cleaning, high-pressure cleaning vehicles can penetrate into the hidden corners of the vehicle, thoroughly remove various dirt and stubborn oil stains, and also have the effect of sterilization and disinfection, effectively ensuring the safety and hygiene of vehicle use
Main Technical specification
| Dongfeng high pressure cleaning truck | |
| Overall dimensions | 7435×2500×2780 mm |
| Tank dimention | 2900x2100x1450 mm |
| Tank volume | 7 m3 |
| GVW | 11995 kg |
| Curb weight | 5130 kg |
| Payload | 6670 kg |
| Wheel base | 3800 mm |
| F/R track base | 1750/1630 mm |
| F/R suspension | 1130/1960 mm |
| Approach/departure angle | 21/13 ° |
| Max speed | 80 km/h |
| Axle Load | 2200/5500 kg |
| Tire | 7.50R16 |
| Number of axles | 2 |
| Steering | Power |
| Transmission | WLY6 |
| Cab passenger | 3 |
| Electric System | 24V |
| Engine model | |
| Manufacturer | YUCHAI ENGINE |
| Type | YC4FA120-30 |
| Emission/kw | 2982ml/88Kw, 120Hp |
| Rated power speed | 3200RPM |
| Maximum torque | 345Nm at 1400-1800rpm |
| type | Diesel, 4 direct-line, turbocharge and water cooling |
| Cylinder bore | 96mm |
| Stroke | 100mm |
| Secondary engine model | JX493G3, 2771cc/57kw/3600r/min |
| High pressure clean | |
| Cleaning spray rack width | 2.3-3.5 m |
| Spray rack deflection angle | 30 ° |
| Sweeping speed | 5-15 Km/h |
| Rated of pressure washing water | 10 Mpa |
| Clean water rated flow | ≥ 150 L/min |
| Spray flow | ≥ 125 L/min |
| Low pressure clean | |
| Clean width | ≥ 16 m |
| Clean water flow | 500-900 L/min |
| Water gun range | ≥ 35 m |
| Self-priming height | ≥ 6 m |
| Driving performance | |
| Max speed | 80 Km/h |
| Maximum grade | 30 ° |
| Braking length | 10 m |
| Minimum turning diameter | 19 m |
| Clutch | |
| Type | SACHS |
| Plate's diameter | ¢430mm |
| Operating system | Hydraulic control with air booster, pulling |
| PTO | |
| Type | PTO with gear pump |
| Maximum output torque | 850Nm |
| Standard configuration | |
|
1, Front high pressure road cleaning device(1 set) 2, Front high pressure nozzle(2 sets) 3, Front low pressure spray nozzle(2 set) 4, Middle upper high pressure gun(1 set) 5, Milddle bottom high pressure nozzle(2 set) 6, Rear low pressure shower sprinkler(2 set) 7, Rear high pressure annular sprinkler(2 set) 8, Rear high pressure gun(1 set) |
|

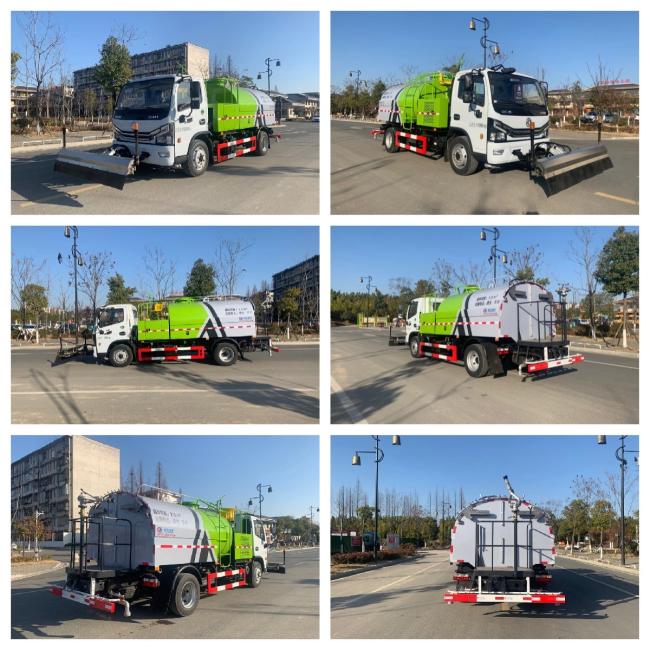

High pressure road washing truck picture
High pressure road washing truck function display
High pressure road sweeper truck bulk order
High pressure road sweeper truck loading
