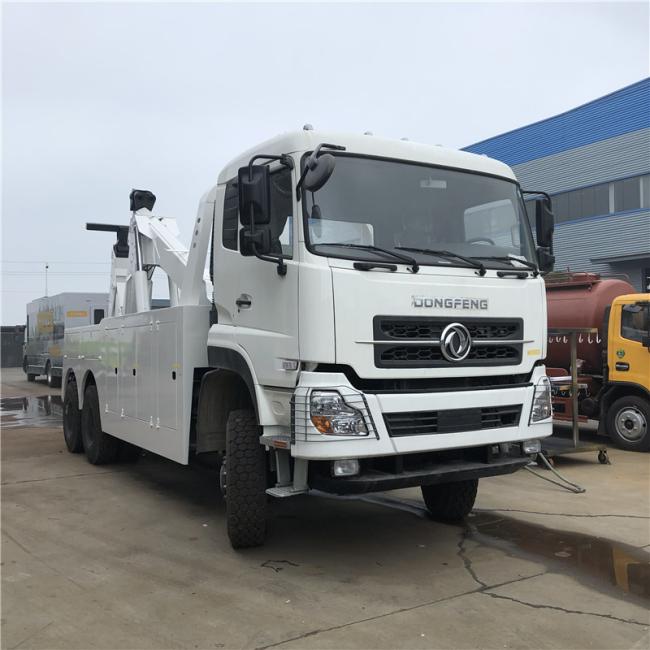

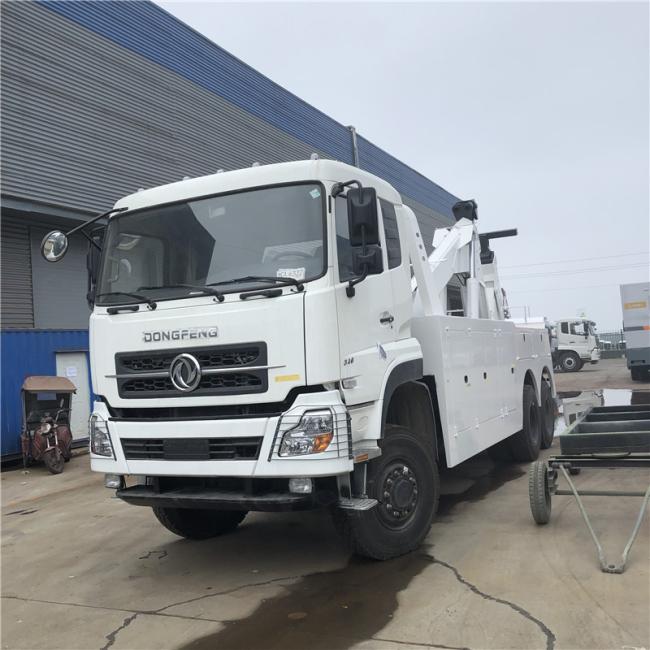

Dongfeng 6x6 45000 Lbs Integrated Wrecked Tow Truck Heavy Duty Wrecker
Price:
Negotiable
MOQ:
1
Delivery Time:
85 days
Brand:
Dongfeng
Product Description
6X6 DONGFENG 45000 LBS INTEGRATED WRECKED TOW TRUCKS WRECKER HEAVY DUTY
Truck Specs
| 6x6 Dongfeng Integrated | |
| Overview | |
| Name | 6x6 Dongfeng Integrated |
| Dimension (LxWxH) | 10130x2530x3280 (mm) |
| Total Mass | 23800 Kg |
| Kerb Weight | 15285 Kg |
| Passenger | 6 |
| Cabin | Crew Cab |
| The Parameters of Chassis | |
| Manufacture/Model | Dongfeng |
| Driving Type | 6*6 LHD/RHD |
| Wheel Base | 4350+1300 mm |
| Gearbox | 8 forward speeds,2 reverse speeds, manual |
| Tyre | 10.00-20 |
| Axle | Frant 5T, and rear 10T double driving axle |
| Fuel Tank | 300L |
| The Number of Tyre | 10+1(spare tyre) |
| Power Steer, Air Brake, Exhaust Brake, etc. | Equipped |
| The Parameters of Engine | |
| Manufacturer/Model | Cumins/ B290 |
| Rated Power | 290hp |
| Fuel Type | Diesel oil |
| Displacement/Capacity | 8700ml |
| Emission Standard | Euro 3 |
| Cylinder | In-line/6/turbo/intercooling/watercooling/4 strokes/direct injection |
| Max. torque | 700N.m |
| Velocity | 2500rpm |
Body Specs
| 25 Tons Wrecker Body Specs | ||||
| No. | Item | Content | Details | Unit |
| 1 | Name | 25 Tons Wrecker Body | ||
| 2 | Winches | 2×10 Tons Main Winches |
Side puller/ extra winch is optional, extra USD2,500 |
|
| 3 | Under lift | Under lift | G70 material, 3 stage | |
| 4 | Boom | Boom |
G70 material, 2 stage, hexagon |
|
| 5 | Legs | Rear | Hydraulic rear supporting legs |
Front supporting legs are extra USD3,500 or front outrigger extra USD5,000. |
| 6 | Frame | LED Lights Frame, full size | ||
| 7 | Toolbox | On Both Sides |
Carbon steel Q345R, with stainless steel handles |
Aluminum tool box optional, extra USD5,000 |
| 8 | Hook-Ups | Air and Electrical Hook-Ups | 12V or 24V | |
| 9 | Control | Remote Wireless Control | Button remote control |
Joystick type remote control, English Display, optional, extra USD2,000 |
| Hand Manual Control |
On Lift and Right Sides, English Indication |
|||
| 10 | Hydraulic Parts | Hydraulic Pump | ||
| Hydraulic Hose | ||||
| Hydraulic Connector | ||||
| Valves | ||||
| Cylinders | ||||
| 11 | Attachments | 5 Sets of Forks | 4 sets for axle, 1 set for suspension | |
| U shape tyres holder | 1 set | |||
| Safety Chains | 2 pcs | |||
| 12 | Painting and Indication | Electrophoresis Painting | Primer and surface painting |
All subframe with boom, under lift and tool box EP painting optional, extra USD2,500 |
| Surface Painting | Epoxy Resin | |||
| Indication | English Indication and Marks | |||
| Packaging |
Boxes and under lift protected for the painting |
|||
| Specifications | ||||
| 1 | Underlift | Retracted Lifting Capacity | 25000 | kg |
| Retracted Length | 1746 | mm | ||
| Extended Lifting Capacity | 7310 | kg | ||
| Extended Length | 3110 | mm | ||
| Undelift Tilt | -10 | ° | ||
| Towing Capacity | 50 | ton | ||
| 2 | Boom | Retracted Lifting Capacity (45°) | 20 | ton |
| Extended Lifting Capacity (45°) | 12 | ton | ||
| Max. Lifting Tilt | 33 | ° | ||
| Max. Lifting Height | 7022 | mm | ||
| 3 | Main Winches | Quantity | 2 | pcs |
| Pulling Power | 10 | ton | ||
| Type | Planetary | |||
| Steel Wire Length | 45 | m | ||
| Steel Wire Diameter | 18 | mm | ||
