Automatic Bridge-Type Bucket Reclaimer with 120 m3/h Capacity and W-20m/H-7m Infrastructure for Bulk Material Handling
Price:
130000 US$
MOQ:
1 set
Delivery Time:
45days
Brand:
BRICTEC
Product Description

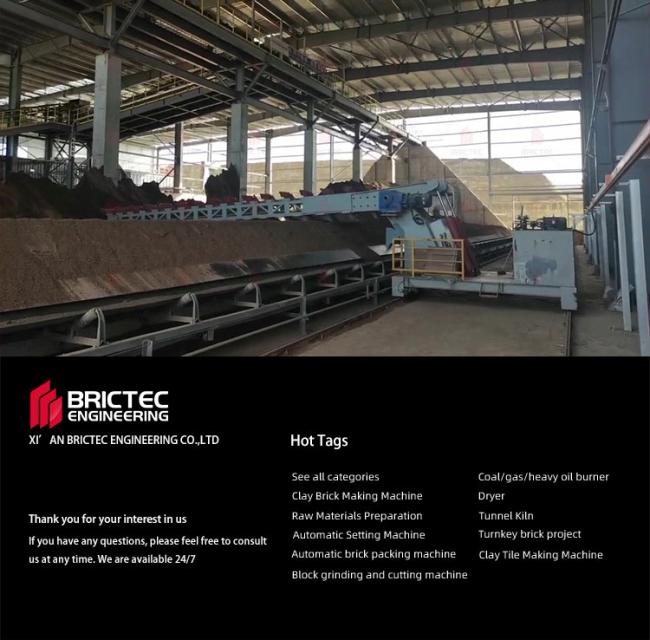

Automatic Bridge-Type Bucket Reclaimer - Enclosed Design for Clay Brick Raw Material Storage
Key Features
- Highly efficient continuous operation equipment for bulk material handling
- Ideal for power, metallurgy, coal, building materials, and chemical industries
- Automated operation with low maintenance requirements
- Durable and reliable performance
Operational Functionality
The bridge-type multi-bucket reclaimer achieves continuous material retrieval and stacking operations for bulk materials. Designed for large yard applications, it significantly improves operational efficiency while reducing manual labor requirements. The system ensures uniform material mixing and enhanced utilization.
Technical Specifications
| Model | Production Capacity (m³/h) | Infrastructure Conditions (m) | Unit Storage Capacity (kW) |
|---|---|---|---|
| QDWB120-1140 | 120 | W-20m/H-7m | 112 |
Key Advantages
- Minimal moving parts result in low maintenance requirements
- Durable construction ensures reliable long-term operation
- Produces homogeneous material characteristics with consistent particle size distribution
- Delivers high mixing efficiency for optimal material processing
Bridge-Type vs. Semi-Bridge-Type Reclaimers
The bridge-type reclaimer features a fixed, non-elevating bridge frame positioned at a lower level, without a stacking conveyor or tail car. A material rake fixed in front of the bucket wheel moves along the material pile's end face, allowing loose material to slide down for retrieval. Semi-bridge-type reclaimers may include an elevating bridge frame and other structural variations suited to different operational requirements.
Process Design Considerations
The bridge-type multi-bucket reclaimer's design meets comprehensive process requirements, ensuring equipment reliability and technological advancement. It strictly follows process layouts to guarantee stacking/retrieval capacity and storage requirements. Different stacking processes are implemented based on specific conditions to achieve optimal homogenization effects.
