Industrial Pre-screen Extruder for Clay Brick Production with High Uniformity, Stable Output, and Automated Control
Price:
US$ 44000-62300
MOQ:
1 set
Delivery Time:
60 days
Brand:
Brictec
Product Description

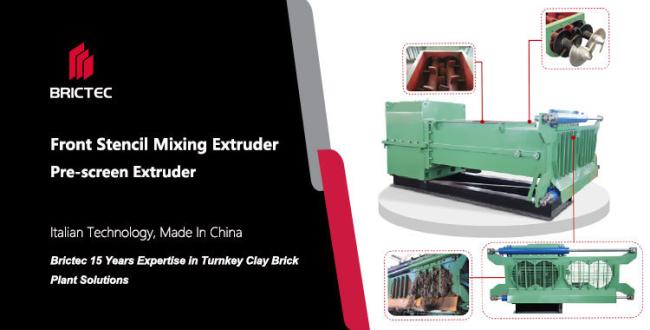

Industrial Front Stencil Mixing Extruder for Clay Brick Production
High uniformity, stable output automatic brick making machinery designed for efficient clay brick manufacturing processes.
Equipment Introduction

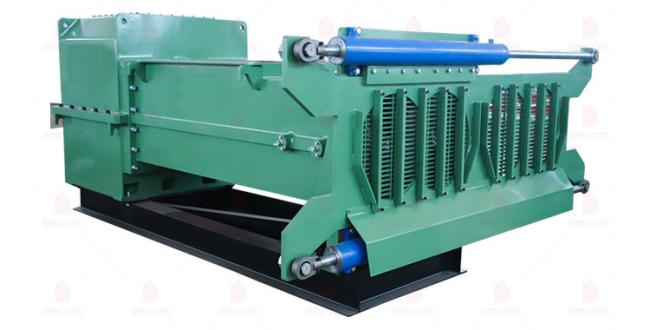

The Pre-screen Extruder is a critical component in brick and tile production lines, specializing in raw material pre-processing and primary forming. Positioned upstream of vacuum extruders, this equipment screens and preliminarily compresses materials through mesh plates, preparing them for subsequent vacuum extrusion molding.
Technical Specifications
| Model | Capacity | Mixing Blade Rotation Diameter | Length of Mixing Chamber | Length of Extrusion | Weight | Dimension | Power |
|---|---|---|---|---|---|---|---|
| KSJJ500 | 25-35 | Φ500 | 1200 | 750 | 9 | 4200*3200*1600 | 75/90 |
| KSJJ550 | 35-50 | Φ500 | 1200 | 750 | 12 | 4200*3200*1600 | 90/110 |
| KSJJ620 | 40-75 | Φ620 | 1400 | 800 | 15 | 4400*3500*1900 | 110/132 |
| KSJJ720 | 60-110 | Φ720 | 1600 | 900 | 17 | 5500*3800*2200 | 132/160 |
Key Functions
- Raw Material Pre-processing: Performs preliminary extrusion and homogenization of mixed raw materials to improve uniformity
- Impurity Filtration: Filters out large impurities and unbroken hard lumps through the mesh plate
- Enhanced Vacuum Extrusion Efficiency: Pre-compresses material, reducing workload on vacuum extruders
- Improved Product Quality: Ensures uniform material distribution, minimizing defects in finished bricks
- Downstream Equipment Protection: Prevents large hard objects from entering vacuum extruders and causing damage

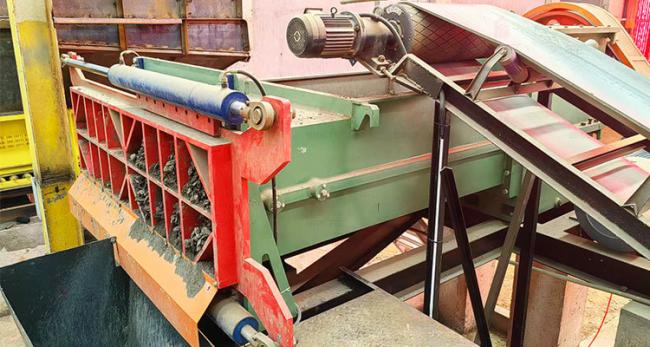

Structural Features

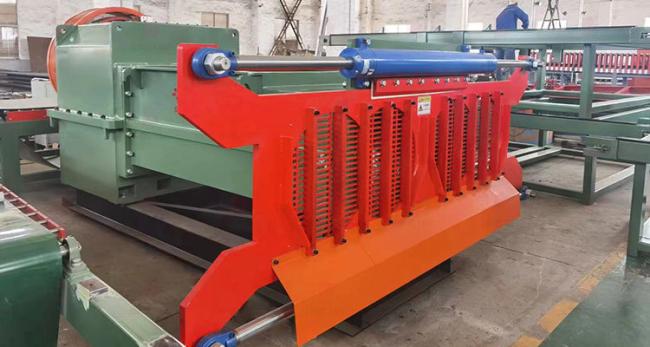

- Mesh Plate System: Core component made of high-strength wear-resistant steel with adjustable apertures
- Extrusion Screw: Variable-diameter and variable-pitch design for gradual pressure increase
- Drive System: High-power motor and gear reducer for stable torque output
- Casing Design: Heavy-duty robust construction with wear-resistant lining for extended service life
Technical Features
- High Processing Capacity: 30-100 tons/hour depending on model specifications
- Adjustable Pressure: Extrusion pressure controlled by regulating mesh aperture and screw rotation speed
- Wear-Resistant Design: Critical components made with special alloys or wear-resistant coatings
- Automated Control: Integration capability with full-line automation systems for intelligent adjustment
