Chain Plate Box Feeder with Large Conveying Capacity and Wear-Resistant Materials for Flexible Layout in Clay Brick Production
Price:
US$13800-20200
MOQ:
1 set
Delivery Time:
40 days
Brand:
Brictec
Product Description
Reliable Chain Plate Box Feeder with Large Conveying Capacity for Brick Production Lines
Introduction

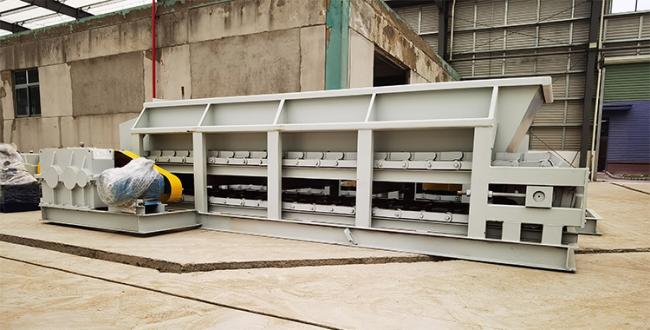

The chain-plate box feeder is a material conveying equipment used in the clay sintered brick industry. It consists of a head frame, head cover, driving sprocket group, material conveying device, middle frame, tail frame, reversing sprocket group, chain-plate supporting wheel group and driving device.

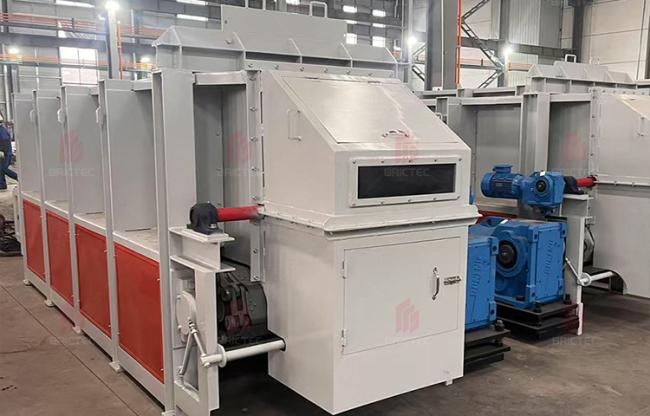

The driving device transmits power to the driving sprocket to drive the two plate chains surrounding the driving and reversing sprockets. Chain plates connected with the plate chains carry materials, enabling horizontal or inclined transportation. In clay sintered brick production, it evenly and quantitatively conveys raw materials such as clay from storage bins to processing equipment like mixers and molding machines.
Main Technical Parameters
| Model | Capacity (m³/h) | Input Size (mm) | Discharge Port Adjustment Range (mm) | Dimension (mm) | Weight (t) | Power (kW) |
|---|---|---|---|---|---|---|
| XGL800/450 | 10-45 | <100 | <50 | 5600*1700*1400 | 3.5 | 3+7.5 |
| XGL1000/450 | 10-60 | <100 | <50 | 5600*2100*1400 | 4.5 | 3+11 |
Key Features
- Material Versatility: Handles various solid materials and finished products except highly viscous or high-temperature materials. Excellent adaptability to clay raw materials with different particle sizes and humidity levels.
- Large Conveying Capacity: Robust chain-plate structure supports heavy material loads with high production capacity to meet large-scale brick production demands.
- High-Strength Traction Chain: Enables long-distance transportation, reduces intermediate transfers, improves efficiency, and minimizes equipment failure probability.
- Flexible Layout: Operates at larger inclination angles and smaller bending radii than belt conveyors. Adapts easily to complex workshop layouts and process requirements.
- Long Service Life: Wear-resistant chain plates and traction chains provide excellent durability and corrosion resistance for stable operation in harsh environments.
Primary Functions
- Uniform Feeding: Precisely controls clay raw material feeding to ensure stable, uniform supply for downstream equipment, improving brick quality consistency.
- Quantitative Blending: Proportions clay material with internal combustion materials during feeding for optimal raw material mixing and sintered brick performance.

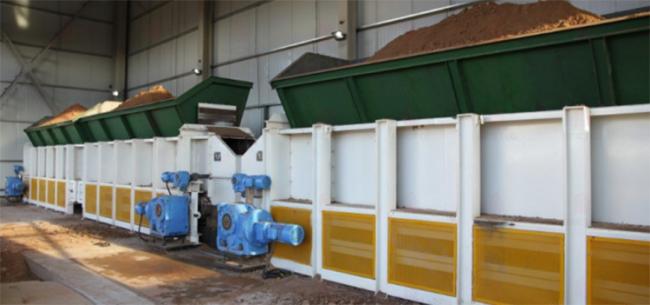

- Material Transportation: Transports raw materials from storage bins to processing equipment, enabling continuous material flow and connecting production stages.
Process Importance
Stabilize Production Rhythm: As front-end equipment, it ensures stable, uniform feeding so downstream equipment operates at set production rhythms, avoiding idling and quality fluctuations.
Ensure Product Quality: Accurate feeding control and uniform blending provide quality-stable raw materials crucial for producing dimensionally accurate, consistent-performance bricks.
Improve Production Efficiency: Efficient material transport and precise feeding reduce production interruptions and equipment adjustments, increasing utilization rates.

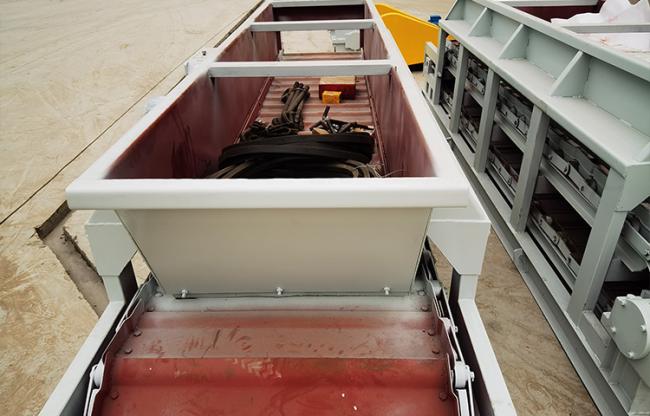

The chain-plate box feeder features assembled sprockets for easy disassembly, installation, and maintenance. The driving sprocket typically uses a socket-eye sprocket ring to prevent chain sliding and ensure transmission accuracy and stability.
Customization options include chain plate size and shape modifications, conveying speed adjustments, and other adaptations to meet specific clay sintered brick production requirements.
