Vacuum Coating PT-S45-5 Powder Coating Sprayer 450g/min Output for Metal Coating
Price:
$1,400.00/pieces 1-10 pieces
MOQ:
1
Delivery Time:
Negotiable
Brand:
huaxiang
Product Description
Spraying Gun Paint 450g/min PT-S45-5 Powder Coating Electrostatic Sprayer Painting Equipment Machine Metal Coating Machinery 33

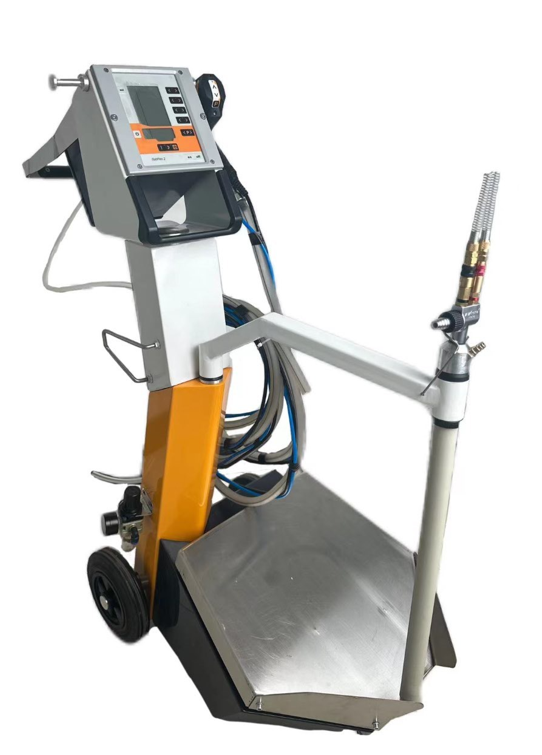

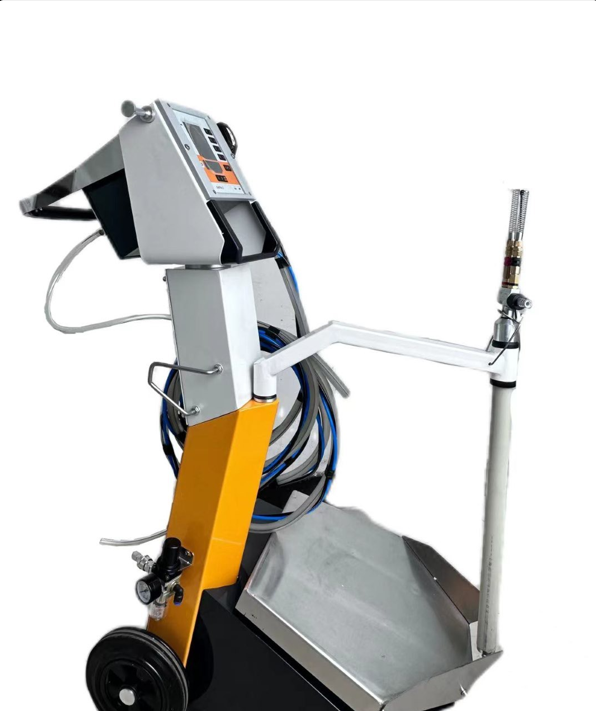

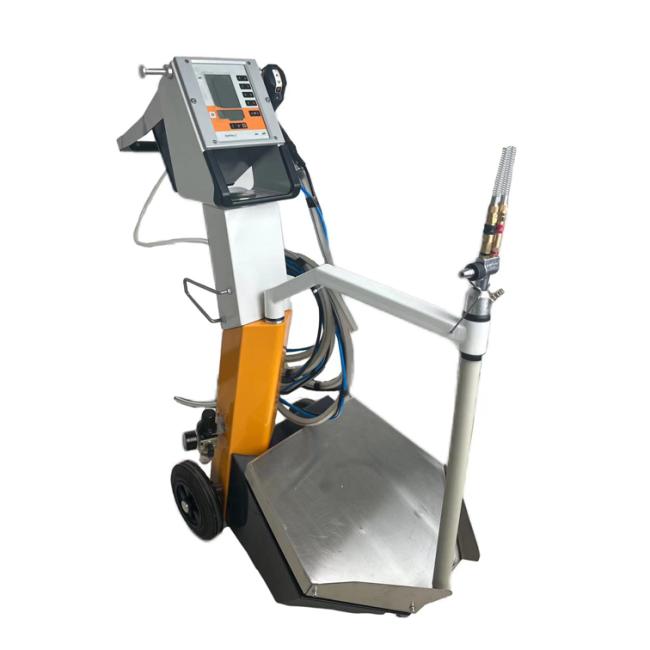

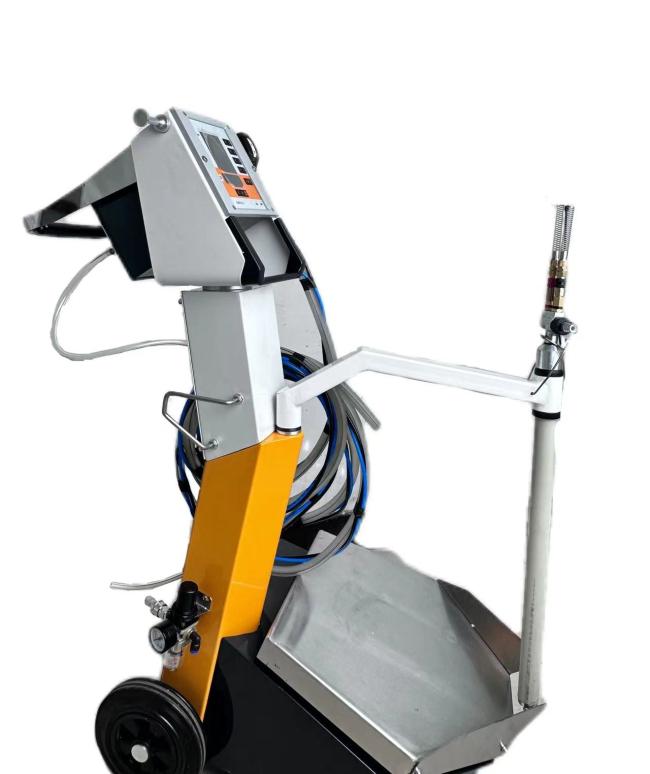

HXC vibrate powder coating machine suitable for rapid color change and multi-color spraying, it is installed on a tilted shaking table, the fluid suction tube ensures uniform powder supply to the spray gun, and the powder in the powder box can be fully absorbed, and the brake wheel on the trolley increases its stability and flexibility
|
Voltage
|
100~240VAC
|
|
Frenquency
|
50/60HZ
|
|
power
|
50W
|
|
Safety Level
|
IP54
|
|
Ambient Temperature
|
0-40°C
|
|
Input Air pressure
|
0.55MPa(5.5bar,80PSI)
|
|
Maximum powder injection
|
600g/min
|
|
Gun weight
|
480g
|
|
Maximum Output Voltage
|
120kv
|
|
Maximum Output Current
|
120µA
|
|
The length of Powder Tube
|
3.5meters
|
|
Accessories included in the machine
|
Quantity
|
|
Gun
|
1 SET
|
|
Controller
|
1 SET
|
|
Low Temperature Soft Powder Pipe
|
1 SET /3.5Meters
|
|
Vertical Powder Pump
|
1 SET
|
|
Stainless Steel Barrel
|
1 SET /40L-45L
|
|
Overflow Pipe
|
1 SET
|
|
Movable Trolley
|
1 SET
|
|
Oil and Water Separator
|
1 SET
|
|
Consumables
|
Some
|
|
Net weight of machine
|
40KG
|
|
package Size ,Weight
|
500mm(L)*500mm(W)*1020mm(H), 45-50KG
|
