PT-S45-5 Powder Coating Sprayer for Metal Coating Machinery at 450g/min Output
Price:
$1,500.00/pieces 1-10 pieces
MOQ:
1
Delivery Time:
Negotiable
Brand:
huaxiang
Product Description

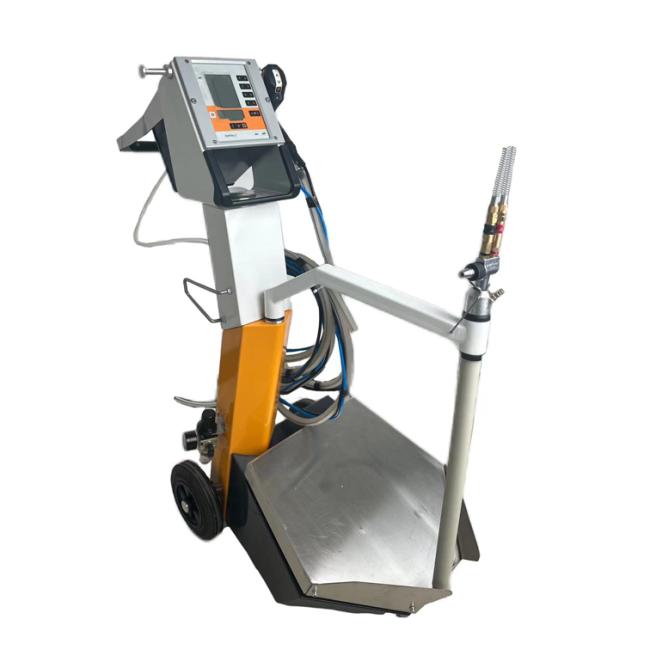

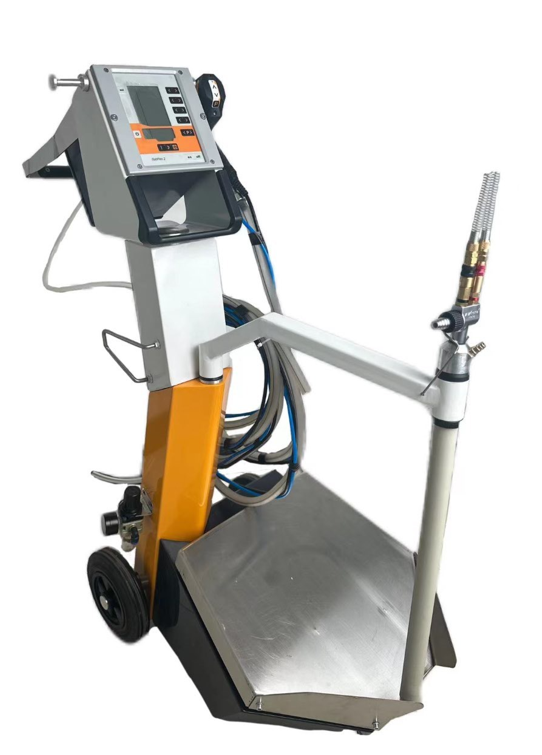

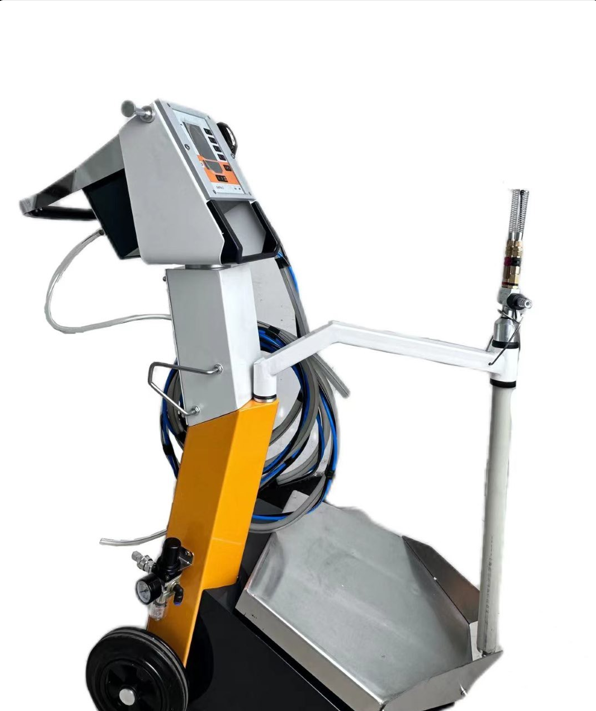

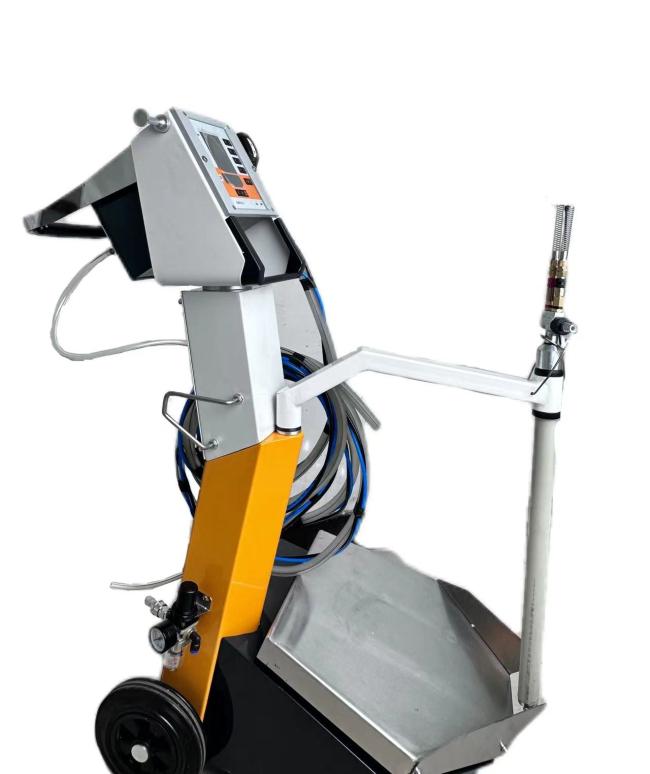

Spraying Gun Paint 450g/min PT-S45-5 Powder Coating Electrostatic Sprayer Painting Equipment Machine Metal Coating Machinery 33
The vibrating suction type Jinma electrostatic powder coating machine, with its high efficiency, environmental friendliness, and excellent coating quality, is widely used in industries such as automotive, home appliances, and furniture. It is an essential piece of equipment in modern coating technology.
|
Voltage
|
100~240VAC
|
|
Frenquency
|
50/60HZ
|
|
power
|
50W
|
|
Safety Level
|
IP54
|
|
Ambient Temperature
|
0-40°C
|
|
Input Air pressure
|
0.55MPa(5.5bar,80PSI)
|
|
Maximum powder injection
|
600g/min
|
|
Gun weight
|
480g
|
|
Maximum Output Voltage
|
120kv
|
|
Maximum Output Current
|
120µA
|
|
The length of Powder Tube
|
3.5meters
|
|
Accessories included in the machine
|
Quantity
|
|
Gun
|
1 SET
|
|

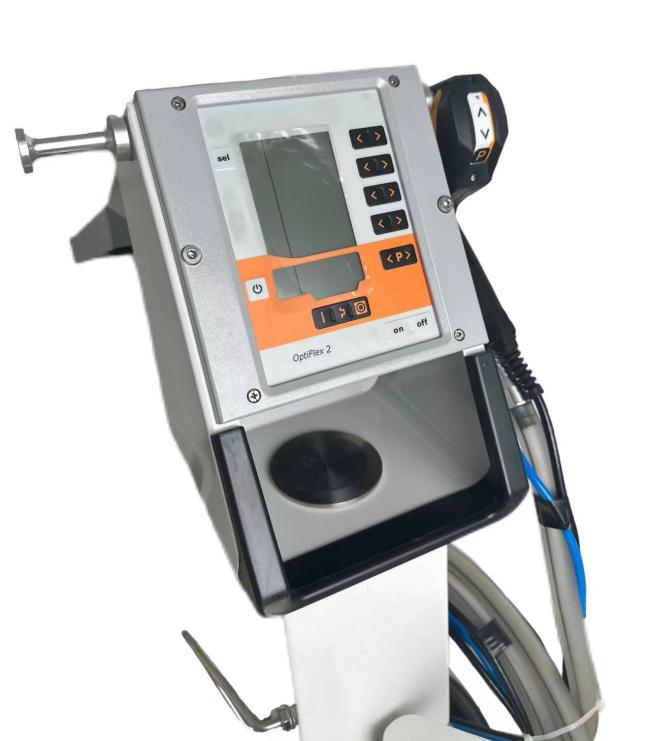

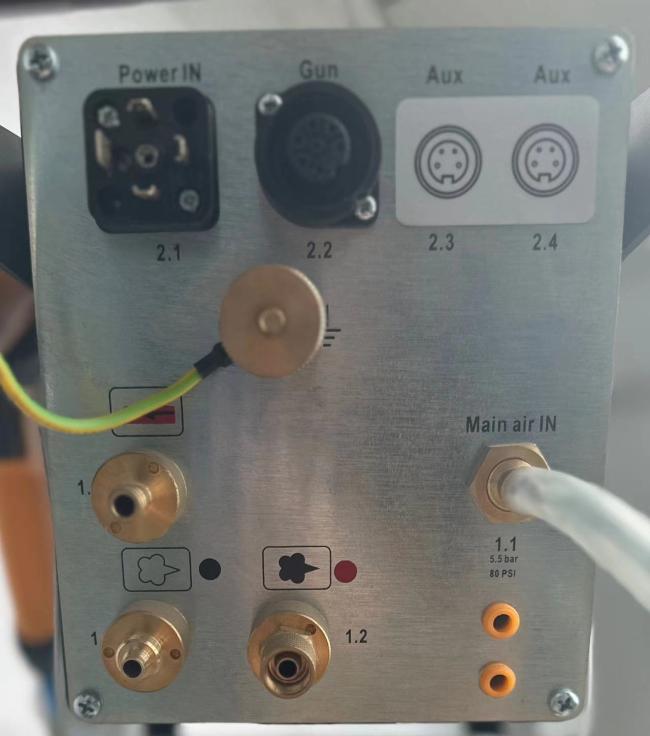

Controller
|
1 SET
|
|
Low Temperature Soft Powder Pipe
|
1 SET /3.5Meters
|
|
Vertical Powder Pump
|
1 SET
|
|
Stainless Steel Barrel
|
1 SET /40L-45L
|
|
Overflow Pipe
|
1 SET
|
|
Movable Trolley
|
1 SET
|
|
Oil and Water Separator
|
1 SET
|
|
Consumables
|
Some
|
|
Net weight of machine
|
40KG
|
|
package Size ,Weight
|
500mm(L)*500mm(W)*1020mm(H), 45-50KG
|
