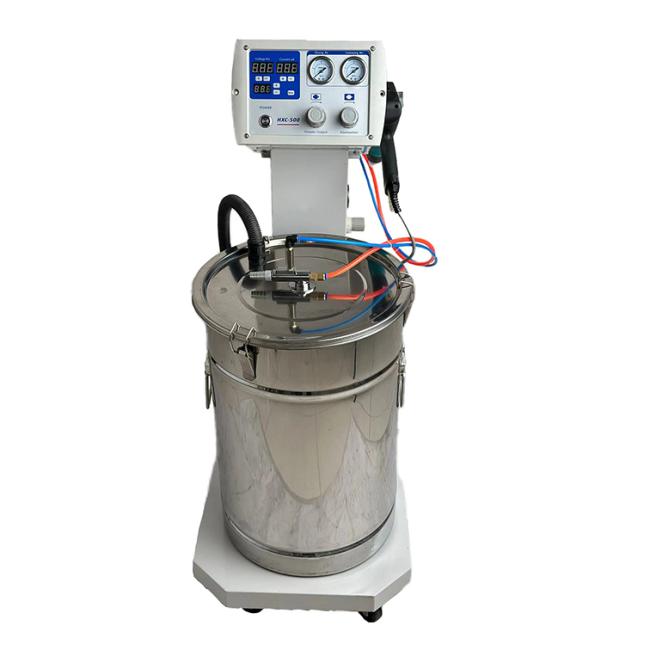

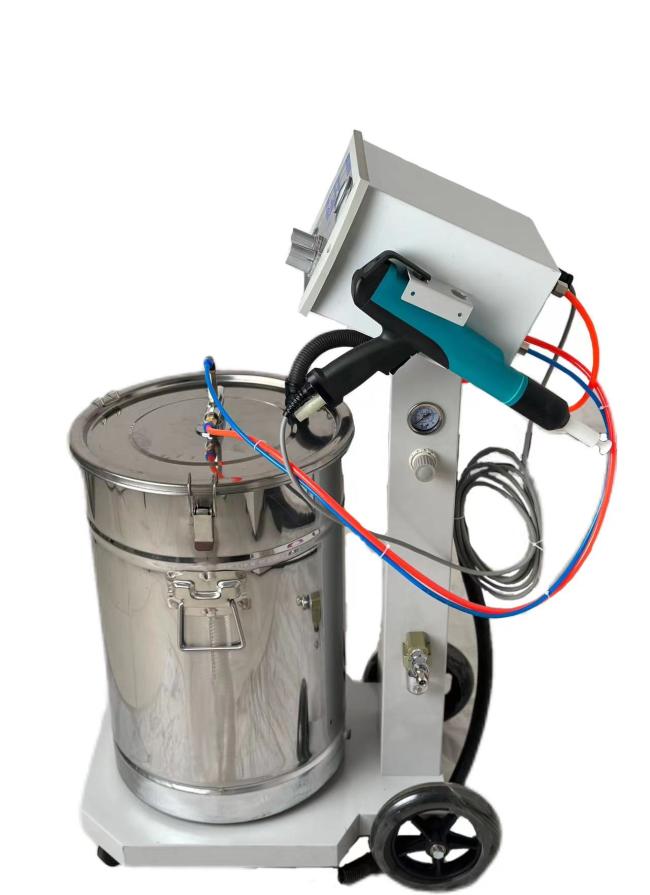

50W Electrostatic Powder Coating Machine for Fast and Accurate Workpiece Coating
The high voltage module of the built-in electrostatic spraying machine is close to the nozzle, the static voltage loss is low, the gun body is compact and lightweight, the performance is stable, and the failure caused by the extended cable leakage of the external electrostatic spraying machine is overcome. The unique rotary vulcanization effectively improves the adhesion of coating powder; The fine and uniform atomized powder completely overcomes the concave position of the workpiece corners; The advantage of the workpiece respray function, reduce scrap rate, easy to operate. Adapt to all kinds of thermosetting powder spraying, improve product market competitiveness.
|
Voltage
|
110V/220V
|
|
Frenquency
|
50/60HZ
|
|
Input power
|
50W
|
|
Output voltage
|
0-120KV
|
|
Output current
|
0-100 UA
|
|
Dimension(L*W*H)
|
69x56x52cm
|
|
Max. output current
|
200 ua
|
|
Machine Weight
|
35KG
|
|
gun weight
|
480g
|
