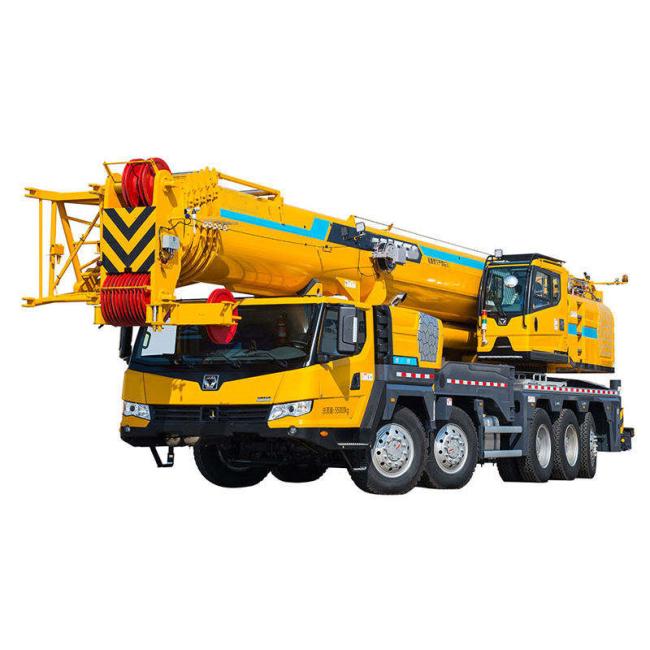

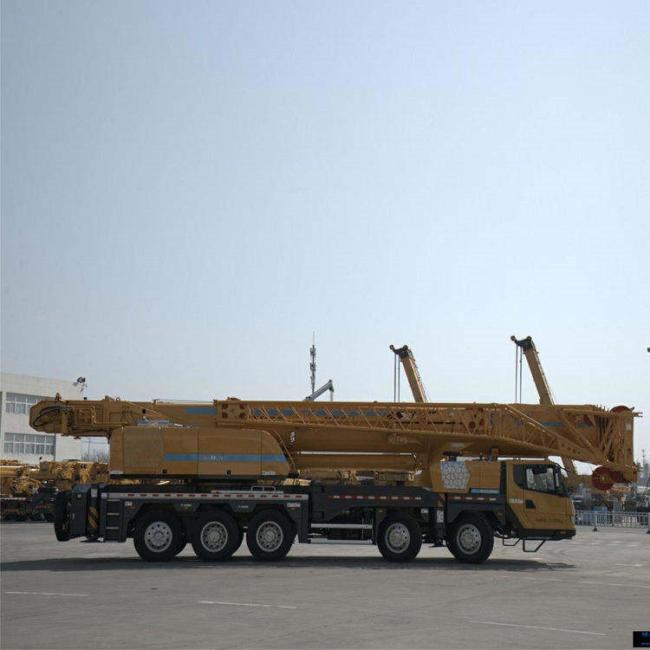

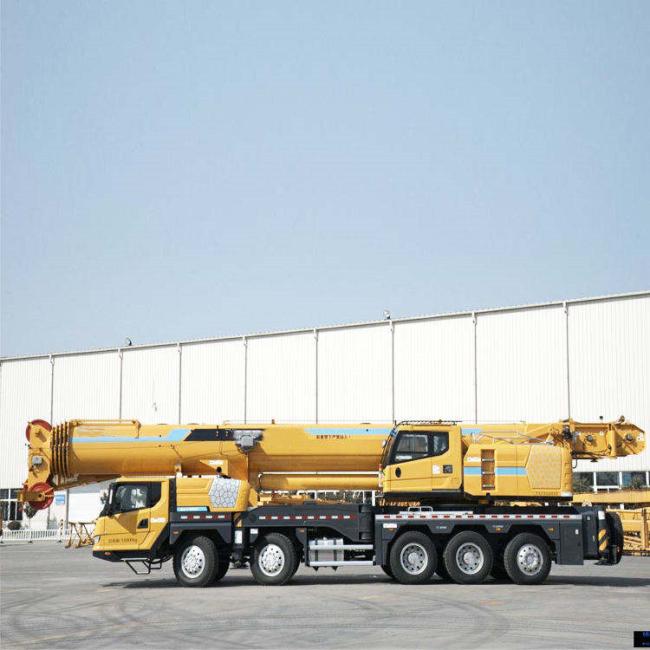

High Operating Efficiency 100 Ton Used Mobile Truck Crane 2019 Unique Selling Point
Price:
$31,600.00/units 1-4 units
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
Product Description
Specification
Description | Unit | Parameter value | ||||||
Overall length | mm | 15600 | ||||||
Overall width | mm | 3000 | ||||||
Overall Height | mm | 3870 | ||||||
Wheel Base | mm | 1920+3500+1420+1505 | ||||||
Track(front/rear) | mm | 2449/2315 | ||||||
Front/Rear overhang | mm | 2650/2765 | ||||||
Front/Rear extension | mm | 1840/0 | ||||||
Total vehicle mass in travel configuration | kg | 55000 | ||||||
Axle load | 1st and 2nd Axle | kg | 10000 | |||||
3rd and 4th Axle | 13000 | |||||||
5th Axle | 9000 | |||||||
Engine rated power | kw/(r/min) | 176/2300 | 190/2200 | 316/1900 | ||||
Engine rated torque | N.m/(r/min) | 860/1200-1700 | 1000/1200-1600 | 2060/1000-1400 | ||||
Max. travel speed | km/h | 90 | ||||||
Min. turning diameter | m | 23 | ||||||
Min. ground clearance | mm | 326 | ||||||
Max. grade ability | % | 45 | ||||||
Approach angle | ° | 18 | ||||||
Departure angle | ° | 13 | ||||||
Braking distance (at 30 km/h, full load ) | m | ≤10 | ||||||
Oil consumption per 100km | L | 70 | ||||||
Noise level at seated position | dB(A) | ≤90 | ||||||
Exterior noise level | dB(A) | ≤88 | ||||||
