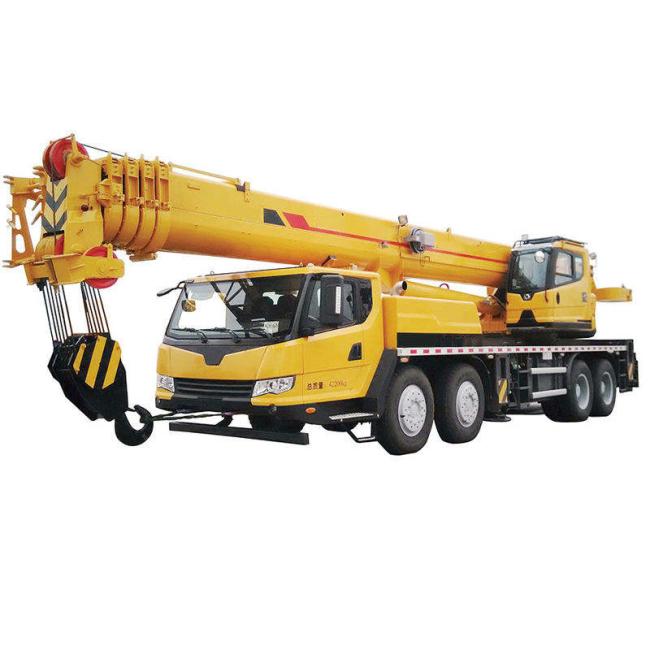

50 Ton P H QY50KA Used Truck Crane in Good Condition and Max. Lifting Height of 58.1m
Price:
$21,600.00/units 1-4 units
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
Product Description
Specification
Description | Unit | Parameter value | ||
Overall length | mm | 13930 | ||
Overall width | mm | 2780 | ||
Overall Height | mm | 3630 | ||
Axle base | 1st ,2nd axle | mm | 1470 | |
2nd ,3rd axle | 4300 | |||
3rd ,4th axle | 1350 | |||
Wheel Base | mm | 2304+2075 | ||
Front overhang/rear overhang | mm | 2389/2064or 2376/2064 | ||
Front extension/rear extension | mm | 2131/226 or 2144/226 | ||
Total vehicle mass in travel configuration | kg | 42200 | ||
Axle load | Front axle | kg | 16200 | |
Rear axle | 26000 | |||
Engine rated power | kw/(r/min) | 276/2200 | ||
Engine rated torque | N.m/(r/min) | 1500/1300-1600 | ||
Max. travel speed | km/h | 85 | ||
Min. steady travel speed | km/h | 2~3 | ||
Min. turning diameter | m | 24 | ||
Min. ground clearance | mm | 327 | ||
Max. grade ability | % | 42 | ||
Approach angle | ° | 19 | ||
Departure angle | ° | 15 | ||
Braking distance (at 30 km/h, full load ) | m | ≤10 | ||
Oil consumption per 100km | L | 40 | ||
Exterior noise level during acceleration traveling | dB (A) | ≤88 | ||
Noise level at seated position | dB (A) | ≤90 | ||
