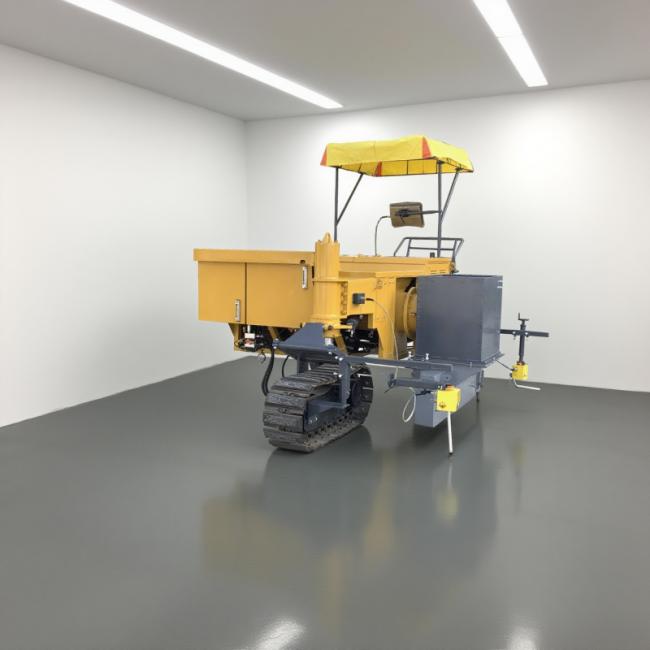

SMC-523 Curb Slipform Paver for Continuous Concrete Road Curb Construction

The SMC-523 Curb Slipform Paver is designed for forming concrete road curbs, roadside edges and other narrow concrete profiles. It is suitable for low-slump concrete and can also handle concrete with a certain degree of slump, allowing contractors to select a mix according to the project requirements.

Compared with conventional formwork construction, slipform paving forms concrete continuously through a dedicated mold. This approach can reduce repeated formwork installation and removal, helping contractors organize curb construction more efficiently. The SMC-523 features a full hydraulic drive system and tracked travel, providing strong traction and a large ground-contact area for challenging working conditions.

The machine is equipped with an auger feeding device to improve concrete distribution and workability. Its steering, grade and slope can be automatically controlled by high-performance sensors, supporting consistent curb alignment and surface quality. With a paving width of up to 1,250 mm and a paving height of up to 500 mm in the stated specification range, the SMC-523 is an option for road contractors seeking a dedicated concrete curb slipform paver.

• Continuous slipform paving: Forms concrete curbs with a dedicated mold, reducing dependence on repeated conventional formwork operations.
• Hydraulic drive and tracked travel: Provides traction and a large ground-contact area for sites where the roadbed is unstable or difficult to traverse.
• Auger feeding system: Helps distribute concrete into the mold and improves feeding efficiency.
• Automatic steering, grade and slope control: High-performance sensors support smoother curb lines and surface finishing.
• Industrial CAN bus communication: Connects the control panel and main controller to simplify system communication and improve reliability.
• Wide LCD display: Shows machine operating status and fault indications for easier monitoring.
• Hydraulic flushing system: A high-pressure water pump helps clean the machine after construction.

Road curb construction requires consistent dimensions, straight alignment and a suitable surface finish. When contractors rely heavily on manual formwork, they may need to spend additional time installing, aligning, removing and reusing forms. These operations can make it difficult to maintain a consistent workflow across long road sections.

Other challenges include uneven concrete feeding, changes in roadbed conditions and difficulty maintaining the required curb grade. If concrete is not distributed evenly in the mold, additional manual adjustment may be needed.

The right equipment depends on the curb profile, concrete mix, site conditions and required production schedule. A slipform paver is worth considering when a project involves repeated curb sections and the contractor wants a more continuous construction process.

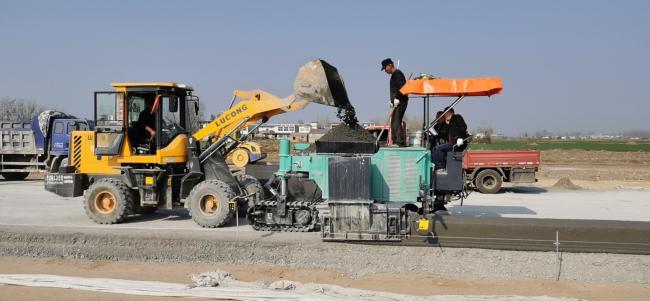

The SMC-523 combines a dedicated curb mold, hydraulic drive, tracked travel and an auger feeding device. The auger helps distribute concrete into the forming area, while the hydraulic travel system supports machine movement during paving.

Its sensor-based steering, grade and slope control helps operators follow the planned curb line and elevation. The LCD control display provides operating information and fault indications, making it easier to monitor the machine during construction.

For projects with different curb dimensions, contractors should confirm the required profile and mold design before ordering. The final configuration should be matched to the approved drawings, concrete properties and working conditions.

Actual machine weight and configuration depend on the selected equipment and options. Confirm the required mold and engine configuration before ordering.

The SMC-523 can be considered for:

• Roadside concrete curb construction
• Urban and rural road edge forming
• Concrete edging for road improvement projects
• Curb sections along access roads and industrial roads
• Roadside concrete profiles requiring a dedicated mold

For projects in Africa and other overseas markets, buyers should assess transport access, concrete supply, local maintenance capability and the availability of trained operators before selecting a machine.

Before selecting a machine, prepare the following project information:

1. Curb profile: Provide drawings showing width, height, shape and any special edge details.
2. Concrete properties: Confirm the planned slump or consistency, aggregate size and mix design.
3. Required paving dimensions: Check that the profile falls within the machine's working range or request confirmation of a custom mold.
4. Roadbed condition: Describe whether the machine will travel on compacted soil, an existing road or another prepared surface.
5. Control requirements: Confirm whether the project needs sensor-based steering, grade and slope control.
6. Engine and service needs: Review the available engine options, local service resources and maintenance arrangements.
