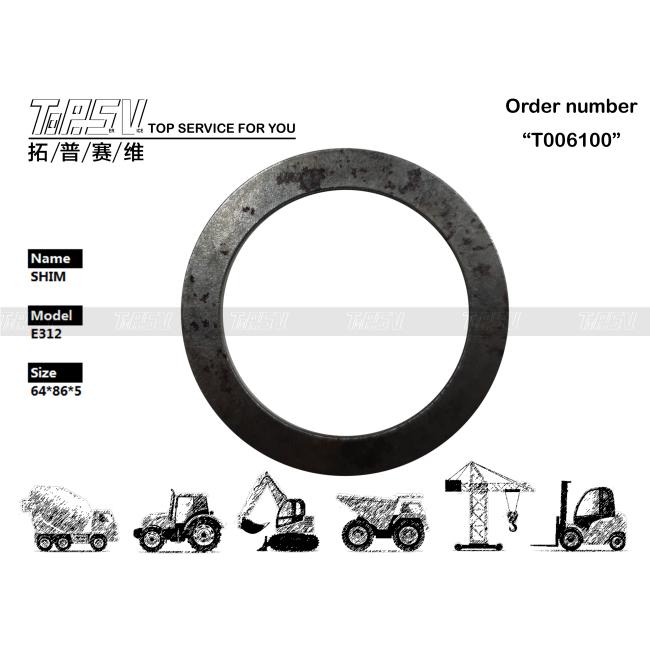

XJDG-00019 Excavator Spare Parts Gear Shim For Hyundai R110-7 64*85.5*5
| Egory: | TRAVEL GEAR RING |
| Matching Brand: | HYUNDAI |
| Use For: | R110-7 |
| Part No.: | XJDG-00019 |
|
No. On Catalog |
1-17 |
| Place of Origin: | China |
| Means of Transport: | By Sea, By Air or By Express |
| Guarantee: | We will check the starter motor and send detail pictures to buyer to confirm before shipping. |

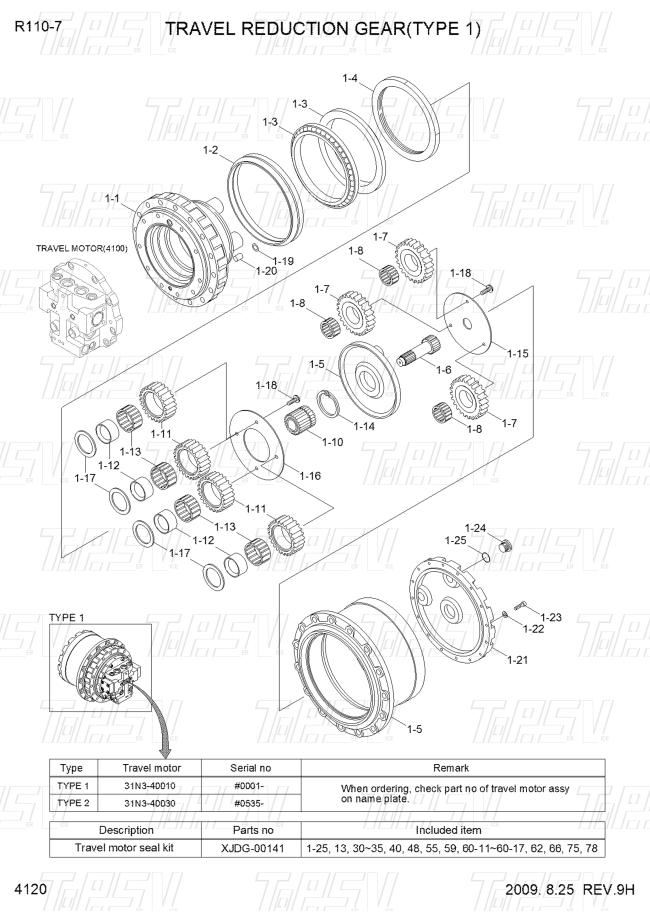

CATALOG:
| XJDG-00001 R110-7 | |||||
| No. | PART No. | QTY | PART NAME | SIZE | NOTE |
| *. | @ | 1 | TRAVEL MOTOR | ||
| *-1. | XJDG-00001 | 1 | TRAVEL GEAR ASSY | ||
| 1-1. | XJDG-00002 | 1 | BODY-CASING | ||
| 1-2. | XJDG-00004 | 1 | SEAL-FLOATING | 265*298*19(38) | |
| 1-3. | XJDG-00005 | 2 | BEARING-ANGULAR | 222*272*25 | |
| 1-4. | XJDG-00006 | 1 | NUT-RING | ||
| 1-5. | XJDG-00007 | 1 | GEAR-CASING | 93T 15:16T | |
| 1-6. | XJDG-00008 | 1 | GEAR-SUN A | 15T 16T | |
| 1-7. | XJDG-00009 | 3 | GEAR-PLANETARY A | 38T | |
| 1-8. | XJDG-00010 | 3 | BEARING-NEEDLE A | 45*53*27.8 | |
| 1-9. | XJDG-00011 | 1 | CARRIER | 19T | |
| 1-10. | XJDG-00012 | 1 | GEAR-SUN B | 19T | |
| 1-11. | XJDG-00013 | 4 | GEAR-PLANETARY B | 37T | |
| 1-12. | XJDG-00014 | 4 | BUSHING | 50*70*41 | |
| 1-13. | XJDG-00015 | 4 | BEARING-NEEDLE B | 70*80*40 | |
| 1-14. | XJDG-00016 | 1 | RING-SNAP | ||
| 1-15. | XJDG-00017 | 1 | PLATE-THRUST (2) | 3H | |
| 1-16. | XJDG-00018 | 1 | PLATE-THRUST (3) | 4H | |
| 1-17. | XJDG-00019 | 4 | PLATE-THRUST (4) | 64*85.5*5 | |
| 1-18. | XJDG-00020 | 9 | SCREW | M10X20 | |
| 1-19. | XJDG-00021 | 1 | WASHER | ||
| 1-20. | XJDG-00022 | 1 | PIN-PARALLEL | ||
| 1-21. | XJDG-00023 | 1 | COVER | 16H | |
| 1-22. | XJDG-00024 | 16 | WASHER-SPRING | ||
| 1-23. | XJDG-00025 | 16 | BOLT | M8X1.25X25 | |
| 1-24. | XJDG-00027 | 2 | PLUG | ||
| K1-25. | XJDG-00028 | 2 | O-RING | ||
| K. | XJDG-00141 | 1 | SEAL KIT | SEE ILLUST | |
PRODUCT PHOTO:
