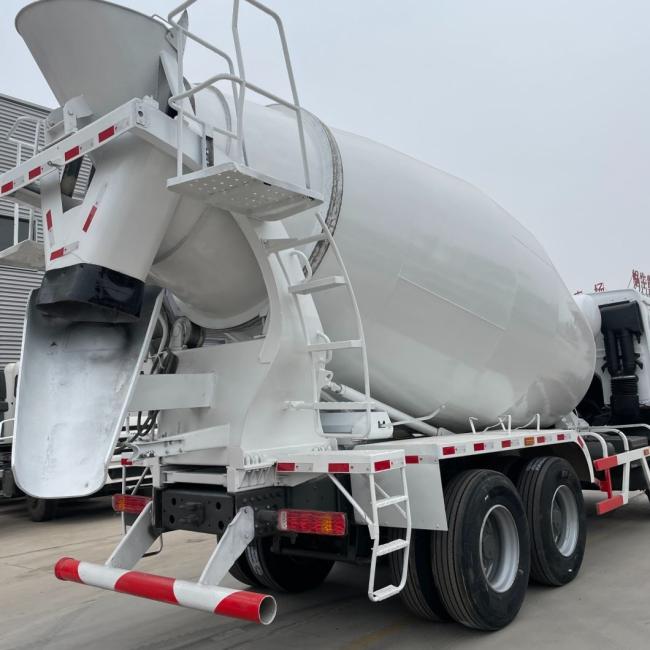

Shacman Sinotruk Chassis Hydraulic Steering Concrete Mixer Truck and Shipping Cost
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
7-15days
Product Description
Product Use
The mixer truck, a specialized vehicle designed for transporting concrete to construction sites, is often dubbed the 'field snail car' or 'olive car' due to its distinctive shape. Outfitted with cylindrical mixers, these trucks ensure the safe and efficient conveyance of mixed concrete.
Throughout the journey, the mixing drum remains in constant rotation to prevent the concrete from setting. Upon delivery, the drum is thoroughly rinsed with water to remove any lingering concrete. This process prevents hardening, ensuring the mixer retains its full capacity for future use.
Basic Info.
The mixer truck, a specialized vehicle designed for transporting concrete to construction sites, is often dubbed the 'field snail car' or 'olive car' due to its distinctive shape. Outfitted with cylindrical mixers, these trucks ensure the safe and efficient conveyance of mixed concrete.
Throughout the journey, the mixing drum remains in constant rotation to prevent the concrete from setting. Upon delivery, the drum is thoroughly rinsed with water to remove any lingering concrete. This process prevents hardening, ensuring the mixer retains its full capacity for future use.
Basic Info.
| Model NO | ZZ1257N3647N1 | Productivity | 180m²/h | |
| Feeding Height | 1380mm | Vibrating Amplitude | 0.9mm | |
| Certification | ISO9001: 2000 | Condition | Used | |
| Color | White | Cbm | 10/12cbm | |
| Customlize | Support Customlize | Water Tank | 450L | |
| Overall Dimension | 9000*2550*3950 mm | Transmission | Hw19710, 10f & 2r with Pto | |
| Transport Package | Nude | Specification | 8800x2550x3800mm | |
| Trademark | HOWO | Origin | Shandong | |
| Production Capacity | 200/months |
Product Description
Detailed Pictures for SINOTRUK 10CBM 12CBM HOWO 10 Wheeler Concrete Mixer Truck
| brand | Sinotruk Howo shacman | |
| Cabin | Driving type 8x4, LHD | |
| HW76 single bed | ||
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 10245x2496x3450 |
| Wheel base (mm) | 3600+1350 | |
| Wheel track (front/rear) (mm) | 2022/2022 | |
| Approach/Departure angle(°) | 16/24 | |
| Max. driving speed(km/h) | 90 | |
| Engine | Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
| Model | WD615.47 | |
| Horse Power(HP) | 371 | |
| Emission standard | Euro II | |
| Gearbox | 10 forwards & 2 reverse | |
| Steering | Left hand drive | |
| Tire | 12R22.5 tubeless tires with one spare | |
| Mixer Drum | Mixer Capacity | 16 cubic meters |
| Drum thickness | 6mm | |
| Blade thickness | 4mm | |
| Tanker Material: | 16MnQ345 Carbon Steel | |
| Filling Rate(%) | 59 | |
| Input Speed (m3/min) | ≥2.8 | |
| Output Speed (m3/min) | ≥1.2 | |
| Surplus Ratio | ≤0.5 | |
| | Tanker Rotate Speed(rpm) | 0~17 |
| | Hydraulic Pump | Italy Brand: PMP |
| Drum Drive System | Hydraulic Motor | Italy Brand: PMP |
| | Speed Reducer | Germany Brand |
| | Radiator | KAITONG |
| | Water Tank Volume(L) | 400 |
We offer a comprehensive range of used tipper trucks,tractor trucks, and concrete mixer trucks from the year 2013 onwards, all in excellent condition and available at competitive prices!For additional photos and details, please contact us.
Precautionary Measures
1. Thoroughly inspect all mechanical components before startup. Only proceed once all systems are confirmed to be in good working order.
2. Ensure the mixing lever is in the neutral position before starting.
3. After startup, place the lever in the discharge position and drain any water from the cylinder.
4. During loading, position the stirring rod in the loading slot.
5. Secure the discharge chute in the traveling position before transportation to prevent unwanted movement.
6. When operating the joystick, momentarily pause in the neutral position before transitioning to the next position.
7. Maintain a clean work environment; do not haphazardly dispose of excess materials. After discharging, thoroughly clean the mixing drum, tank, rollers, and other components. If entering the cylinder to clean hardened concrete, ensure the vehicle is powered off, the key is removed, and an external observer monitors the process.
Our Factory
Shipment
Typically, we ship the trucks via RO-RO vessel or bulk vessel, though special container shipping is also available.
Original Spare Parts
We provide genuine spare parts, supported by a robust after-sales service system. The After-market Division ensures exceptional service and leverages a streamlined supply chain for rapid parts delivery.
Our Product
Thank You for Choosing Us
Q: What is the delivery time?
A: Most of our trucks and machinery are in stock and can be delivered within 7 days. For special orders, production typically requires approximately 30 days.
Q: How many units of trucks do you handle annually?
A: We handle nearly 30,000 units per year, with around 5,000 units updated each month.
Q: How do you ensure product quality?
A: Our factory features a standardized production workshop staffed by well-trained workers. Each product undergoes a stringent inspection process. We also recondition our trucks and machinery on a specialized line to ensure top quality.
Q: Do you accept custom orders? What is your minimum order quantity (MOQ)?
A: Yes, custom orders are accepted. Our MOQ is one unit.
