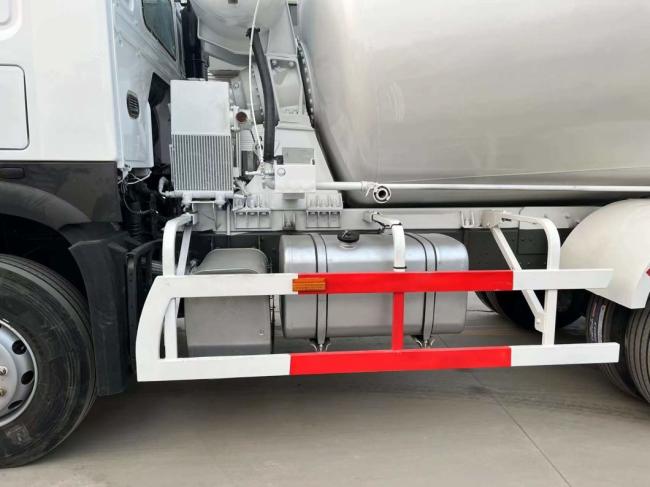

Sinotruk Hydraulic Steering Concrete Mixer Chassis Used for 30T Payload Applications
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
7-15days
Product Description
Product Use
The Sinotruk Chassis Hydraulic Steering Concrete Mixer Truck is a specialized marvel meticulously designed for flawless concrete transport to construction sites. Often dubbed as the 'field snail car' or 'olive car' due to its distinct cylindrical shape, this truck ensures your concrete arrives in perfect condition, ready for any construction need.The mixing drum of the truck rotates continuously throughout the journey, ensuring that the concrete remains fresh and prevents any setting. Upon arrival at the site, the interior of the mixing cylinder is meticulously washed with water to eliminate any residual concrete, maintaining optimal drum capacity for future uses.
Basic Info.
| Model NO | ZZ1257N3647N1 | Productivity | 180m²/h | |
| Feeding Height | 1380mm | Vibrating Amplitude | 0.9mm | |
| Certification | ISO9001: 2000 | Condition | Used | |
| Color | White | Cbm | 10/12cbm | |
| Customlize | Support Customlize | Water Tank | 450L | |
| Overall Dimension | 9000*2550*3950 mm | Transmission | Hw19710, 10f & 2r with Pto | |
| Transport Package | Nude | Specification | 8800x2550x3800mm | |
| Trademark | HOWO | Origin | Shandong | |
| Production Capacity | 200/months |
Product Description
Stunning Images of the SINOTRUK 10CBM 12CBM HOWO 10 Wheeler Concrete Mixer Truck
| brand | Sinotruk Howo | |

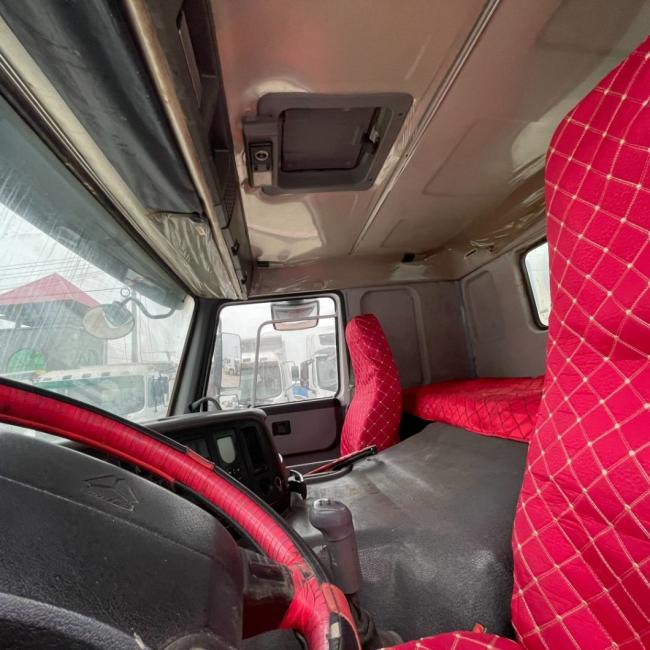

| Cabin | Driving type 6x4, LHD | |
| HW76 single bed | ||
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 10245x2496x3450 |
| Wheel base (mm) | 3600+1350 | |
| Wheel track (front/rear) (mm) | 2022/2022 | |
| Approach/Departure angle(°) | 16/24 | |
| Max. driving speed(km/h) | 90 | |
| Engine | Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
| Model | WD615.47 | |
| Horse Power(HP) | 380 | |
| Emission standard | Euro II | |
| Gearbox | 10 forwards & 2 reverse | |
| Steering | Left hand drive | |
| Tire | 12R22.5 tubeless tires with one spare | |
| Mixer Drum | Mixer Capacity | 16 cubic meters |
| Drum thickness | 6mm | |
| Blade thickness | 4mm | |
| Tanker Material: | 16MnQ345 Carbon Steel | |
| Filling Rate(%) | 59 | |
| Input Speed (m3/min) | ≥2.8 | |
| Output Speed (m3/min) | ≥1.2 | |
| Surplus Ratio | ≤0.5 | |
| | Tanker Rotate Speed(rpm) | 0~17 |
| | Hydraulic Pump | Italy Brand: PMP |
| Drum Drive System | Hydraulic Motor | Italy Brand: PMP |
| | Speed Reducer | Germany Brand |
| | Radiator | KAITONG |
| | Water Tank Volume(L) | 400 |
We offer an extensive selection of top-quality used tipper trucks,tractor trucks, and concrete mixer trucks from 2013 to the latest models. All vehicles are in excellent condition and competitively priced!For additional photos and detailed information, please contact us.
Important Precautions
1. Thoroughly inspect all mechanical components before operating to ensure everything is in excellent condition.
2. Ensure the mixing lever is in the 'neutral' position before starting.
3. Switch the mixing lever to the 'discharge' position after starting to expel any water in the cylinder.
4. Set the stirring operating rod to the 'loading' position when loading concrete.
5. Secure the discharge groove in the 'traveling' position before transportation to prevent movement.
6. Allow the joystick to rest momentarily in the 'neutral' position before switching to the next position.
7. Maintain a clean construction site by not disposing of excess materials haphazardly. After discharge, thoroughly clean the mixing drum, tank, and rollers. When entering the cylinder to remove concrete clumps, ensure the vehicle is off, the key is removed, and monitored by someone outside.
Our Factory
Shipment
We typically ship our trucks via RO-RO vessels or bulk vessels but also offer specialized container transport as needed.
Original Spare Parts
We provide only original spare parts. Our extensive after-sales service system, supported by the After-market Division, ensures unparalleled service and fast parts delivery through our efficient supply chain.
