Carbon Steel Cargo Box Material 8 Displacement 10m3 Concrete Mixer Truck for Your
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
7-15days
Product Description
Product Use
The Sinotruk Hydraulic Concrete Mixer Truck is a highly specialized vehicle engineered for transporting concrete to construction sites. Its distinctive shape, often likened to a field snail or olive car, allows it to carry mixed concrete with unparalleled efficiency. The truck boasts cylindrical mixers designed for optimal concrete transportation.The mixing drum of the Sinotruk Hydraulic Concrete Mixer Truck rotates continuously during transit, ensuring the concrete retains its fluid state. Upon delivery, the drum undergoes a thorough water rinse to prevent any residual concrete from hardening, thus maintaining the drum's full operational capacity.
Basic Info.
| Model NO | ZZ1257N3647N1 | Productivity | 180m²/h | |
| Feeding Height | 1380mm | Vibrating Amplitude | 0.9mm | |
| Certification | ISO9001: 2000 | Condition | Used | |
| Color | White | Cbm | 10/12cbm | |
| Customlize | Support Customlize | Water Tank | 450L | |
| Overall Dimension | 9000*2550*3950 mm | Transmission | Hw19710, 10f & 2r with Pto | |
| Transport Package | Nude | Specification | 8800x2550x3800mm | |
| Trademark | HOWO | Origin | Shandong | |
| Production Capacity | 200/months |
Product Description

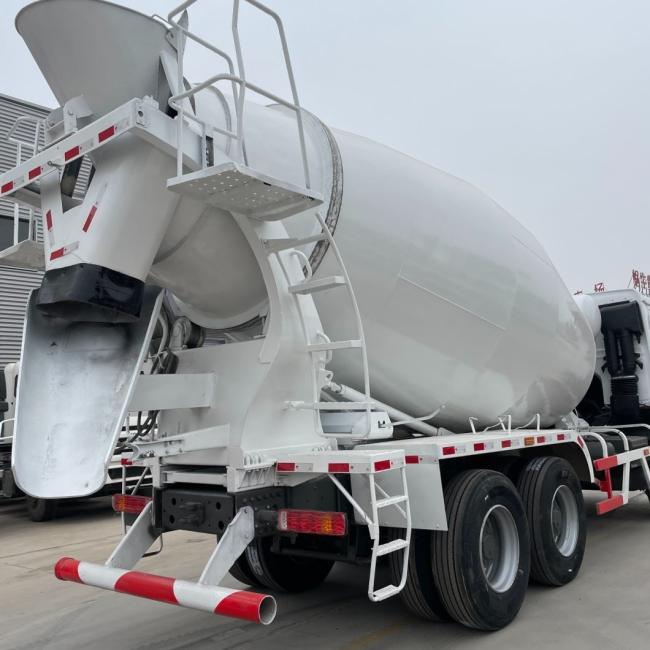

Detailed Pictures for SINOTRUK 10CBM 12CBM HOWO 10 Wheeler Concrete Mixer Truck
| brand | Sinotruk Howo | |
| Cabin | Driving type 6x4, LHD | |
| HW76 single bed | ||
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 10245x2496x3450 |
| Wheel base (mm) | 3600+1350 | |
| Wheel track (front/rear) (mm) | 2022/2022 | |
| Approach/Departure angle(°) | 16/24 | |
| Max. driving speed(km/h) | 90 | |
| Engine | Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
| Model | WD615.47 | |
| Horse Power(HP) | 371 | |
| Emission standard | Euro II | |
| Gearbox | 10 forwards & 2 reverse | |
| Steering | Left hand drive | |
| Tire | 12R22.5 tubeless tires with one spare | |
| Mixer Drum | Mixer Capacity | 16 cubic meters |
| Drum thickness | 6mm | |
| Blade thickness | 4mm | |
| Tanker Material: | 16MnQ345 Carbon Steel | |
| Filling Rate(%) | 59 | |
| Input Speed (m3/min) | ≥2.8 | |
| Output Speed (m3/min) | ≥1.2 | |
| Surplus Ratio | ≤0.5 | |
| | Tanker Rotate Speed(rpm) | 0~17 |
| | Hydraulic Pump | Italy Brand: PMP |
| Drum Drive System | Hydraulic Motor | Italy Brand: PMP |
| | Speed Reducer | Germany Brand |
| | Radiator | KAITONG |
| | Water Tank Volume(L) | 400 |
We offer a comprehensive selection of used tipper trucks,tractors, and concrete mixer trucks, all from 2013 onward. Each vehicle is in pristine condition and available at highly competitive prices!For additional photos and detailed information, please contact us.
Matters Needing Attention
1. Conduct a meticulous inspection of all mechanical system components prior to initiation. Only proceed if the system is confirmed to be in optimal condition.
2. Ensure the mixing lever is set to the 'neutral' position before starting.
3. Once started, switch the mixing lever to the 'discharge' position to expel any residual water from the cylinder.
4. During loading, position the stirring operating rod in the 'loading' setting.
5. Secure the discharge groove in the 'traveling' position before commencing transportation to prevent any swinging.
6. When maneuvering the joystick, allow a brief pause in the 'neutral' position before transitioning to the next setting.
7. Adhere to a standard of civilized construction practices: avoid indiscriminate disposal of excess materials. After discharging, thoroughly clean the mixing drum, tank, roller, and other components. When entering the cylinder to remove concrete residues, ensure the vehicle is off, the key is removed, and supervision is provided from outside.
Our Factory
Shipment
We generally ship our trucks via RO-RO vessel or bulk vessel. Special container shipping arrangements can also be made upon request.
Original Spare Parts
We provide genuine spare parts. Our diligent after-sales service team, managed by the After-market Division, guarantees exceptional support and a highly efficient supply chain for swift parts delivery.
Our Product
Thank You for Choosing Us
Q: How about the delivery time?
A: We typically have most of our trucks and machines in stock, allowing for delivery within 7 days. Special orders usually require a production time of around 30 days.
Q: How many units of trucks do you produce annually?
A: We manufacture approximately 30,000 units annually, with nearly 5,000 units updated monthly.
Q: How do you control product quality?
A: Our factory is equipped with a standard production workshop staffed by highly trained workers. Each product undergoes stringent inspections. We also recondition trucks and machines through a professional and meticulous process.
Q: Do you accept custom orders? What is your MOQ?
A: Yes, we do accept custom orders. Our minimum order quantity (MOQ) is just 1 unit.
Q: How about the delivery time?
A: We typically have most of our trucks and machines in stock, allowing for delivery within 7 days. Special orders usually require a production time of around 30 days.
Q: How many units of trucks do you produce annually?
A: We manufacture approximately 30,000 units annually, with nearly 5,000 units updated monthly.
Q: How do you control product quality?
A: Our factory is equipped with a standard production workshop staffed by highly trained workers. Each product undergoes stringent inspections. We also recondition trucks and machines through a professional and meticulous process.
Q: Do you accept custom orders? What is your MOQ?
A: Yes, we do accept custom orders. Our minimum order quantity (MOQ) is just 1 unit.
